Электрическая машина для гольфа AW2024KSF 4 сиденья (2 + 2) с фиксированным сиденьем
- Категории: Гольф-кары >>>
- Поставщик: Suzhou,Alwayz,Electric,Vehicle,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
| 2+2-seater Electric Golf Car with Flip-flop seat (plastic) | |
| Vehicle model | AW2029KSZ |
| Main Specifications | |
| System Voltage | 48V |
| DC or AC or PMSM | PMSM |
| Battery | 6pcs 8V quality lead-acid batteries |
| Motor | 5KW PMSM |
| Controller | PMSM controller |
| Passenger capacity | 4 |
| Max. range (loaded) subject to running on flat road at a speed of 20km/h (km) | >50 |
| Max. speed @10.25:1 gear ratio | 30 |
| Minimum turning radius (m) | 3.5 |
| Max. climbing ability (loaded) | 20% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max. loading weight | 340kgs |
| Net weight | 520kgs |
| Overall dimensions (mm) | 2670X1180X1800 |
| Other specifications | |
| Frame | Welded steel framework to be treated in dipping (phosphate)+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body |
| Roof | fiberglass or plastic |
| Windshield | Windshield, hinged |
| Large Seats: | |
| 1) backrest and cushion | Rebond seat + artificial leather |
| 2) armrest | plastic |
| Floor | rubber |
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key |
| Beverage holders | 2 cups drink holders |
| Side trim | Aluminum |
| Score card holder | on steering wheel |
| Towing bracket | on front of golf car |
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 LED taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 48V to 12V), horn. |
| Reversing alarm | \\ |
| Charger | on-board charger, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Mechanical brake |
| Accelerator | Stepless speed change |
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, Gear ratio12.49:1 |
| Integrated, Gear ratio10.25:1 | |
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
Company profile
Alwayszev is a leading company focus on R&D and Manufacturing of Low-speed electric vehicles which include Golf Car,Sightseeing Bus,Passengers Bus,Fire engine Car;Utility Car and various customized electric Vehicles,etc.
We have 2 factories, one is in Suzhou. The below is our Chuzhou factory which covers 15,000 square meters.It has
annual production capacity of 50,000 units vehicles.
Certifications
Advantages

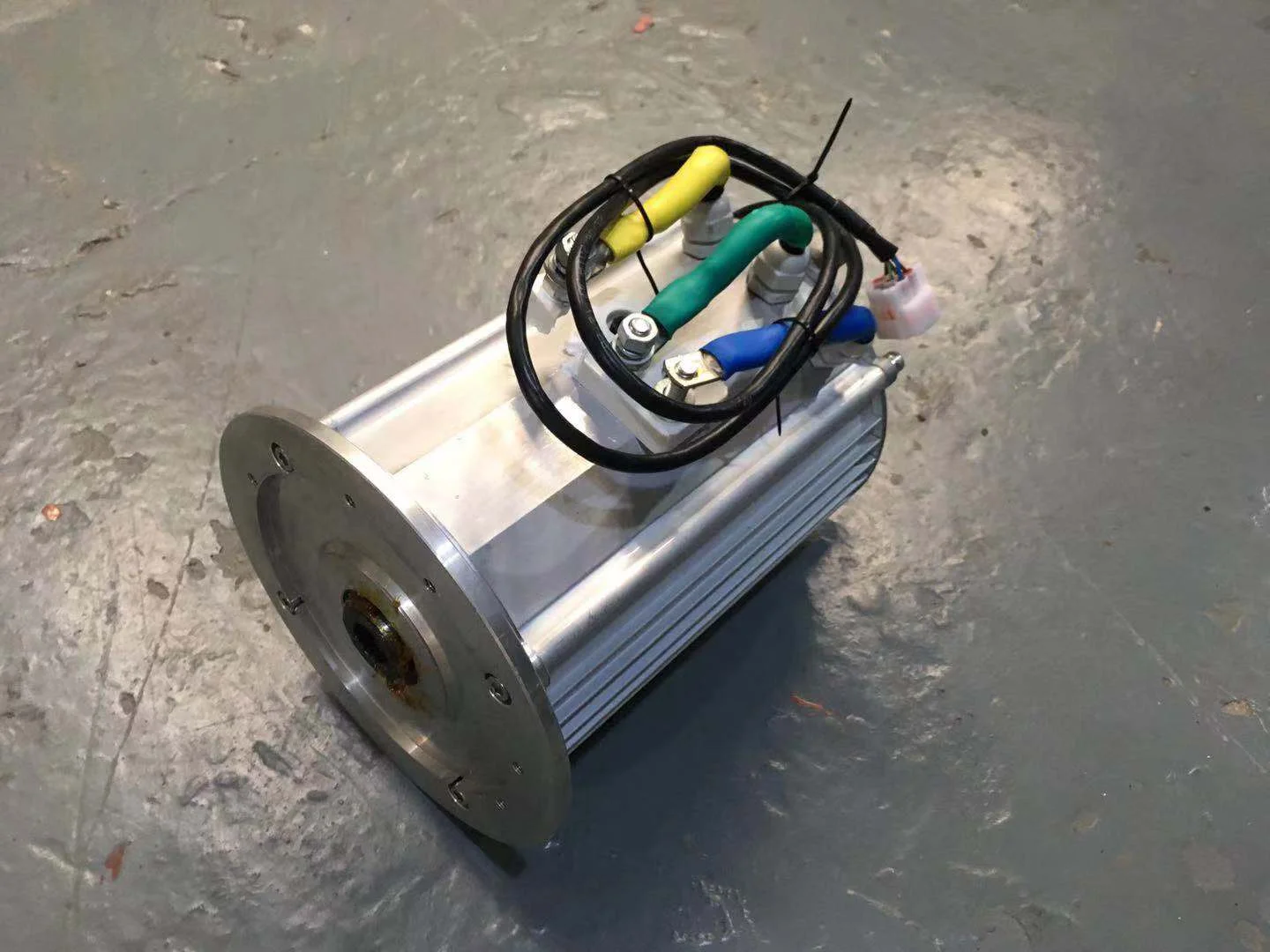

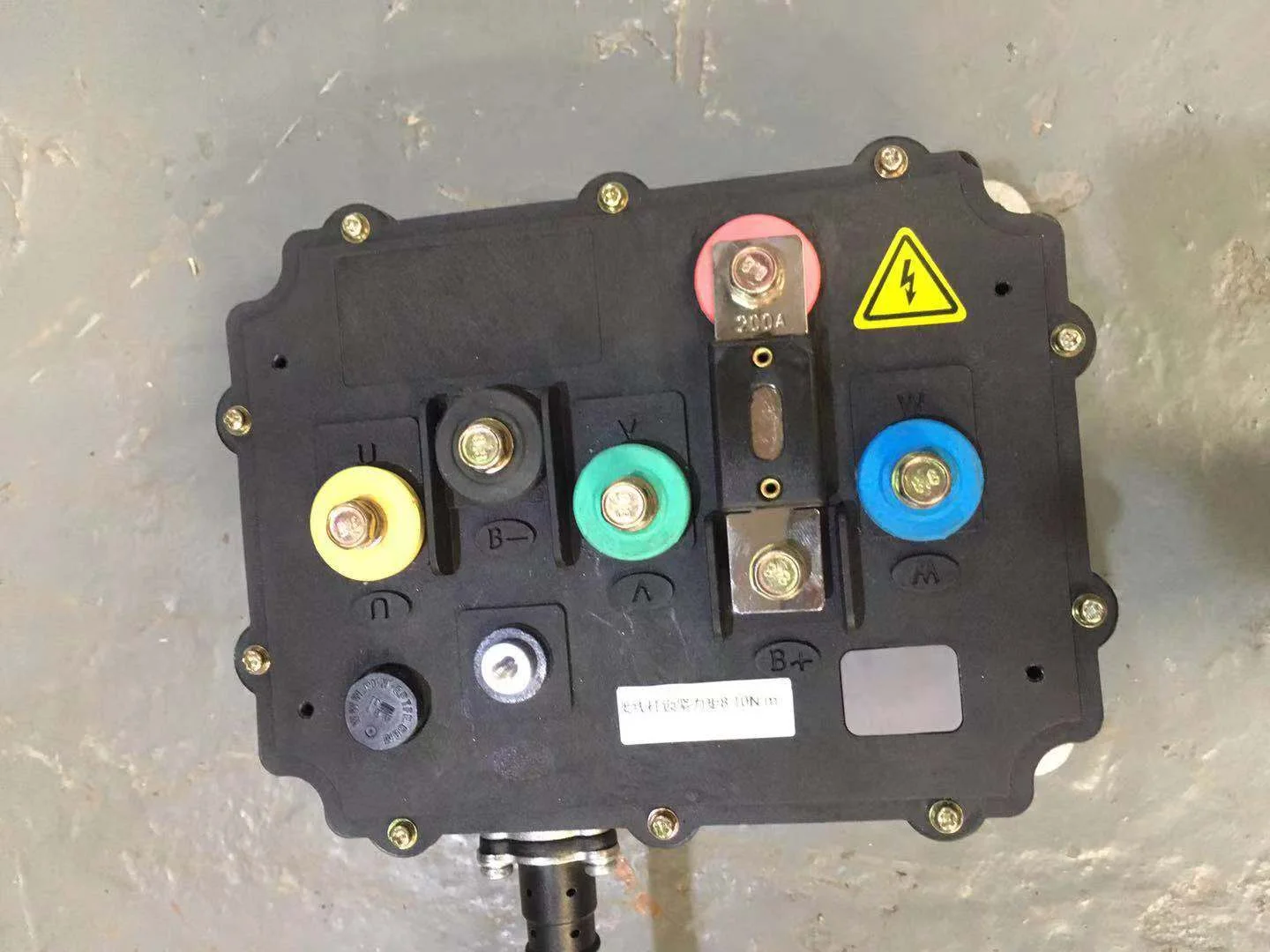

1) Controller:and motor
We uses PMSM (Permanent Magnet Synchronous Motor) system. Compared to AC controller and motor, the advantage of our PMSM controller and motor includes High efficiency (means longer range), High Speed, Big torque, Low temperature rise.
2) Rear axle:
We use the best rear axle in the market which has been accepted by many American golf cart companies.
3) Battery:
We use the best battery in China which makes the battery for the military.
Container loading
Customers visitors
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. Or Irrevocable L/C at sight.
Q2. What is your terms of delivery?
A: FOB
Q3. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
