Product Description
Quick Details
Place of Origin: | Zhejiang China (Mainland) | Brand Name: | younio | Model Number: | DN15-DN50 |
Material: | Brass or Plastic optional | Size: | 15mm to 50mm | Accuracy: | Class B or Class C |
Standard Comformity: | ISO 4064 |
Packaging & Shipping
Packaging & Delivery
Packaging Detail: Normal Export Package
Delivery Detail: 30 days
![3TO}D_$F84GUHP]G8`D1OTP.jpg](http://g03.s.alicdn.com/kf/HTB1AYgYFVXXXXacXVXXq6xXFXXXH/200252396/HTB1AYgYFVXXXXacXVXXq6xXFXXXH.jpg)
Specifications

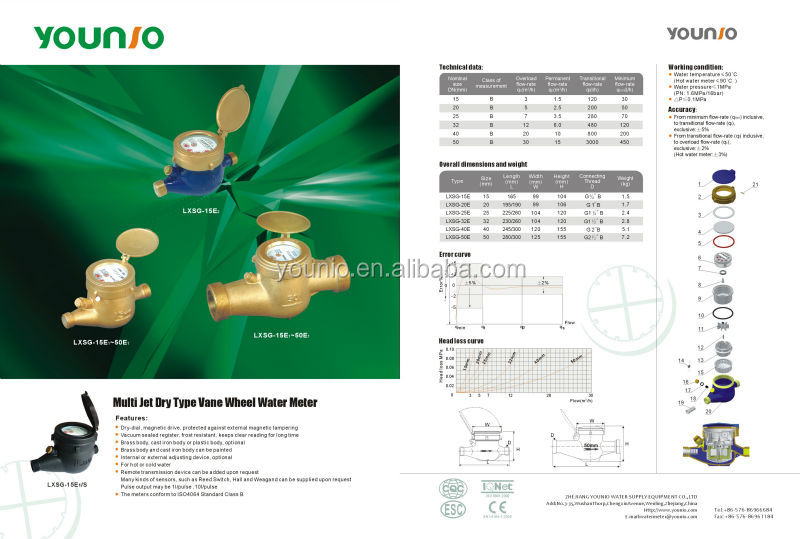

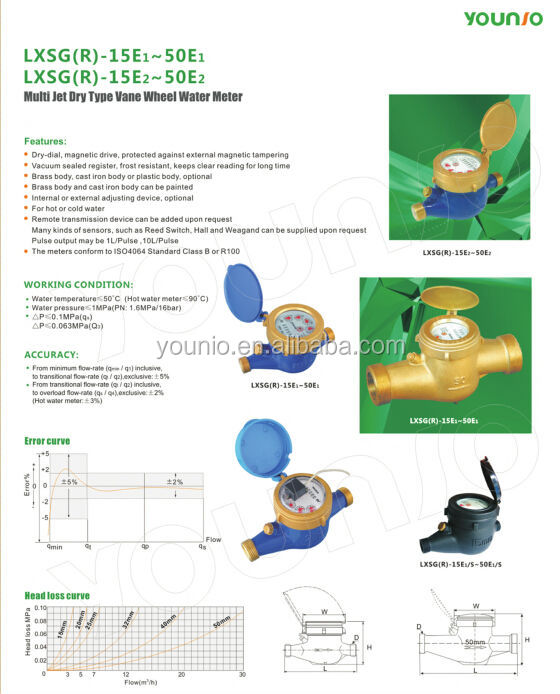

Multi Jet Dry Type Vane Wheel Water Meter For Cold Water Type:LXSG-15E1-LXSG-50E1
1.Dry-dial, magnetic drive;
2.Vacuum sealed register, frost resistant, keeps clear reading for long time;
3.Removable measuring unit, easy installation and maintenance;
4.Measuring high flowrate with low head loss;
5.Remote transmission device can be added upon request; Many kinds of sensors, such as Reed Switch, Hall and Weagand can be supplied upon request Pulse output may be 10l/pulse,100l/pulse,1000l/pulse ;
6.The meters conform to ISO4064 Standard Class B.
Operation:
The water enters the meter from the inlet of the meter body and impacts the vane wheel at the tip of the vane blades to make it rotate. The water flows out from the outlet of the body. The rotation of the vane wheel (proportional to the velocity of water flow) is transmitted directly to the central gear in the vacuum-sealed register by the magnetic coupling. The sealed register totalizes and indicates the water volume passing through the meter.
Features:
1. Wet, dry, liquid sealed
2. For hot or cold water
3. Small, light
4. Brass body or plastic body, optional
5. Brass body can be painted or nickel coated
6. High accuracy
7. The meters conform to ISO4064 Standard Class B or Class C.
Working condition:
Water temperature≤50℃ (Hot water meter≤90℃)
Water pressure≤1MPa (PN: 1.6MPa/16bar)
Pressure Loss≤0.1MPa
Accuracy:
From minimum flow-rate (qmin) inclusive, to transitional flow-rate (qt), exclusive:±5%
From transitional flow-rate (qt) inclusive, to overload flow-rate (qs), exclusive:±2% (Hot water meter:±3%)
Our Services
Cheapest prices than any other water meter companies in China.
Our goal is to help your business buy what money can not.
Choice us is your smart,sensible and wise choice.
OEM Service can be offered.
Company Information

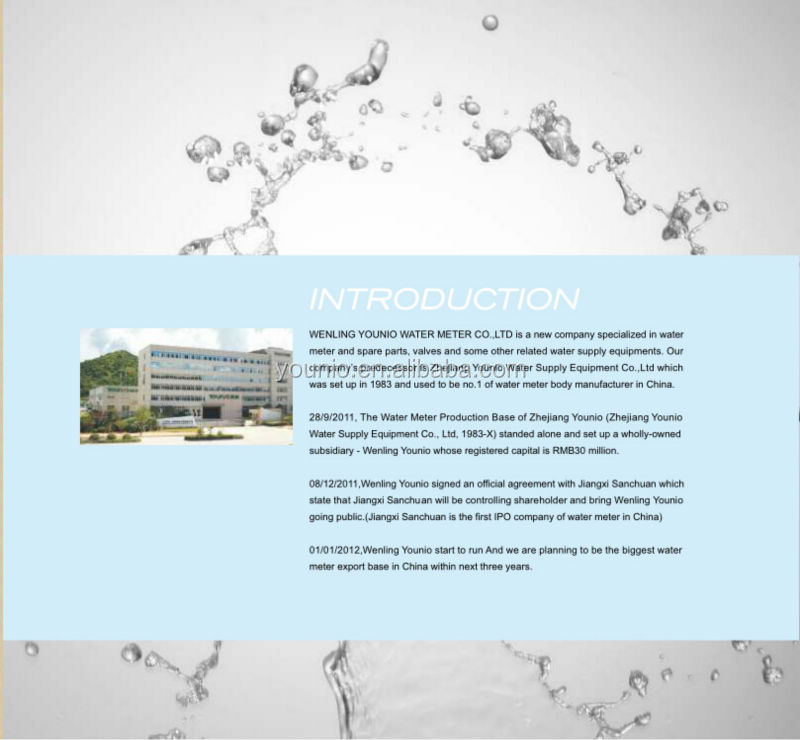

WENLING YOUNIO WATER METER CO.,LTD is a new company specialized in water meter and spare parts, valves and some other related water supply equipments. Our company’s predecessor is Zhejiang Younio Water Supply Equipment Co.,Ltd which was set up in 1983 and used to be no.1 of water meter body manufacturer in China.
28/9/2011, The Water Meter Production Base of Zhejiang Younio (Zhejiang Younio Water Supply Equipment Co., Ltd, 1983-X) standed alone and set up a wholly-owned subsidiary - Wenling Younio whose registered capital is RMB30 million.
08/12/2011,Wenling Younio signed an official agreement with Jiangxi Sanchuan which state that Jiangxi Sanchuan will be controlling shareholder and bring Wenling Younio going public.(Jiangxi Sanchuan is the first IPO company of water meter in China)
27/9/2011, The Water Meter Production Base of Zhejiang Younio ( Zhejiang Younio Water Supply Equipment Co., Ltd) standed alone and set up a wholly-owned subsidiary - Wenling Younio.(Wenling Younio Water Meter Co.,Ltd), whose registered capital is RMB30 million.
08/12/2011,Zhejiang Younio signed an official agreement with Jiangxi Sanchuan which state that Jiangxi Sanchuan will be controlling shareholder and bring Wenling Younio going public.
01/01/2012,Wenling Younio start to run And we are planning to be the biggest water meter export base in China within next three years.
Wenling Younio. covers an area of more than 5000 square meters with a staff of more than 150,owning design and R&D center,accessories production center, whole machine production center,inspection and testing center.We are now capable of producing about 2 million pieces water meters annual.We have successively passed the certificate of ISO9001:2008 Quality System Certification, the certificate of ISO14001:2004 Environmental Management System Certification and the certificate of GB/T 28001:2001 Occupational health and safety management system certification.With a wide variety and a complete range of specifications.Our products are exported to many countries in the world such as Eastern Europe,South America,Africa and the Middle East,etc.Exports accounted for more than 85%.
