rg11 2 5 pair telephone
- Категории: Телефонные шнуры >>>
- Поставщик: Changzhou,Jinda,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

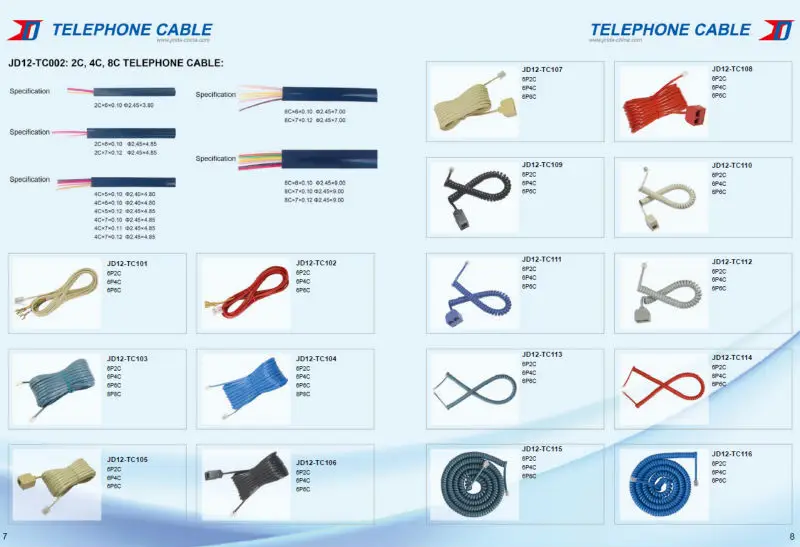

rg11 2 5 pair telephone cable
rg11 telephone cable
indoor outdoor underground telephone cable
Outdoor telephone Cable:
1)0.4/0.5/0.6 cu conductor
2)10-2400 pairs
3)PVC Jacket
Product Description
| components | description |
| jacket | PVC |
| core | 4 |
| conductor | copper(7*0.1mm) |
| insulation | PP |

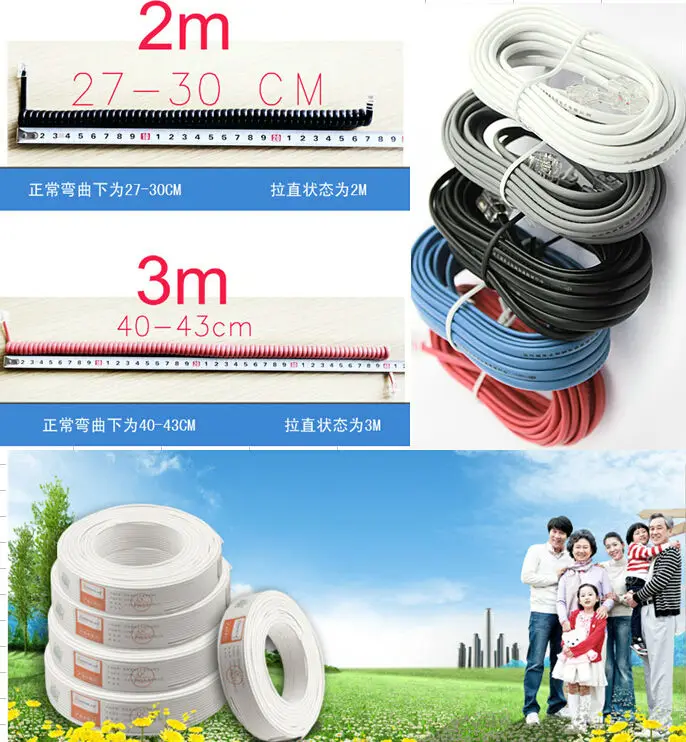

| length | 2meter |

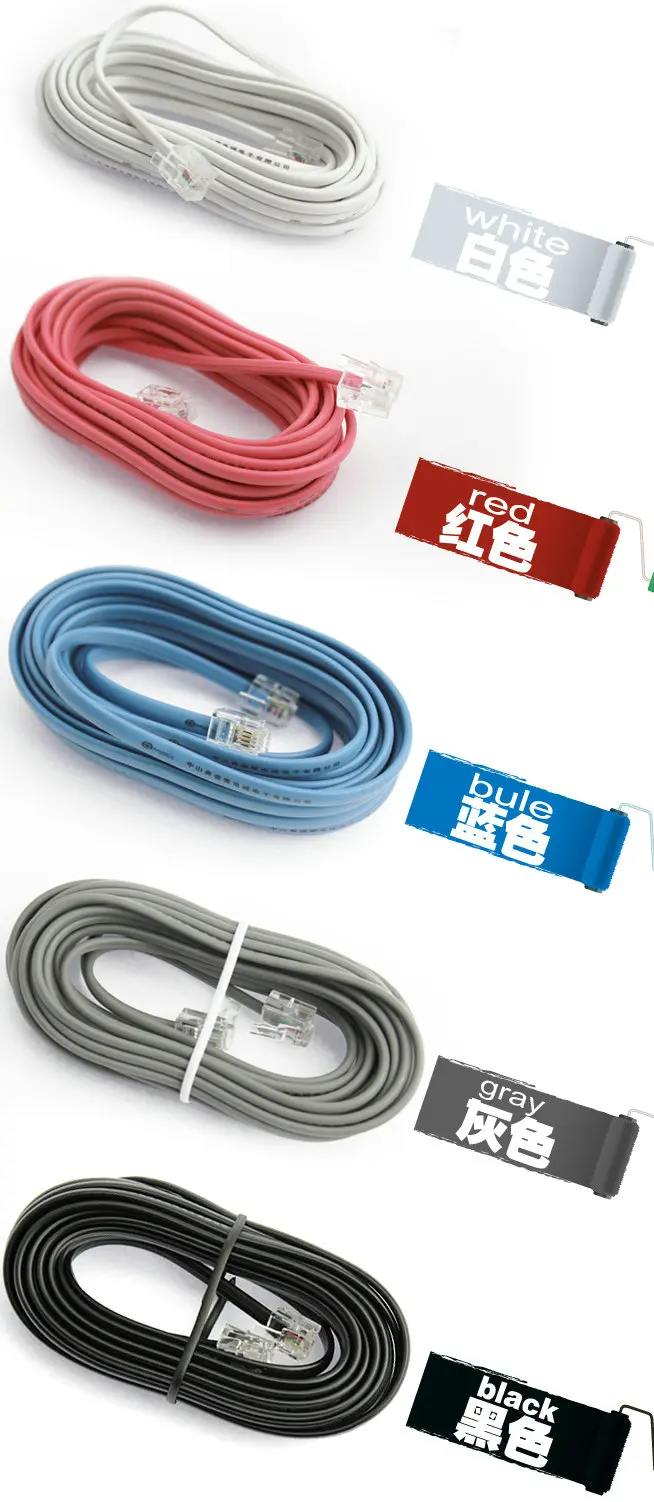

| color | white/black/ivory/ silver gray |
| OD | 2.3*4.8mm±0.1mm |
| ID | 0.95±0.02mm |
| MOQ | 2000pcs |
| net weight | 35g/pcs |
| pack: | 100pcs/bag 500pcs/box size:46*30*30cm |
Transmitting audio frequency signals,analog signals up to 150kHz or digital signals up to 2048kbits/s. The product is suitable for transmitting system of long-distance optical network cell and subscriber, or subsystem abd connection between floor and floor in integrated wiring system of buildings. Transmitting frequency(Max.):30MHz or 100MHz.
| Part Number | 5P-2400P Telephone Cable(0.4) | 5P-1200P Telephone Cable(0.5) | |
| Conductor | Diameter(mm) | 0.4±0.01 | 0.5±0.01 |
| Material | Bare Copper | Bare Copper | |
| Type | Solid | Solid | |
| Dielectric(Insulation) | Diameter(mm) | 0.7±0.01 | 0.9±0.01 |
| Material | Solid PE | Solid PE | |
| CORE WRAPPING | Material | plastic tape | plastic tape |
| shield | Material | Corrugated Al Tape | Corrugated Al Tape |
| Thickness(mm) | 0.25 | 0.25 | |
| Jacket(sheath) | Diameter(mm) | 7.5-70 | 8.5-65 |
| Thickness(mm) | ≥1.4-3.2 | ≥1.4-3.2 | |
| Material | LDPE | LDPE | |
| Conductor Resistance(ohms/km ) | ≤147 | ≤92 | |
| Insulation resistance(Gohms*km ) | ≥10 | ≥10 | |
| Mutual capacitance(nF/km ) | 50±2 | 50±2 | |
| Capacitance Unbalance(Pf/km) | Pair-Pair | ≤145 | ≤145 |
| Pair-Ground | ≤750 | ≤750 | |
| Dielectric Strength | Pair-Pair | DC 1000V/1Min | DC 1000V/1Min |
| Pair-Ground | DC 3000V/1Min | DC 3000V/1Min | |
| Attenuation | 150kHz(dB/km) | ≤12.1 | ≤9.0 |
| 1024kHz(Db/km) | ≤27.3 | ≤22.3 | |
| Number of Pairs | 10-2400 | 10-2400 | |
| Impedance (ohms ) | 100 | 100 | |
| Weight (kgs/km) | 60-7500 | 75-7500 | |
| Operating Temperature Range(°C) | -50 to 60 | -50 to 60 | |
| package | 305-4000meters/roll | 305-2000meters/roll | |
Related Products
Main product
Cables:
av cable,usb cable,power cable,xlr cable,speaker cable,optical fiber cable,telephone cable,coaxial cable,microphone cable,displayport cable,test leads
Connectors:
cctv camera connector,banana connector,binding post,audio adapter,dc connector,rca connector,tv connector,auto cigarette connector,battey case,speaker terminal board,xlr connector,rf connector,din connector
Certifications

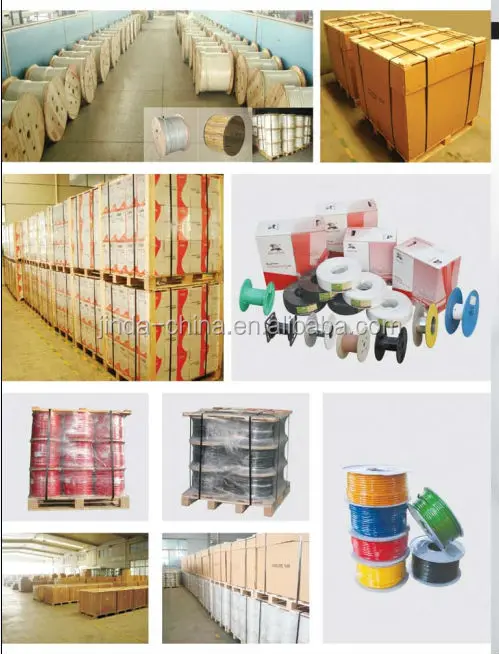

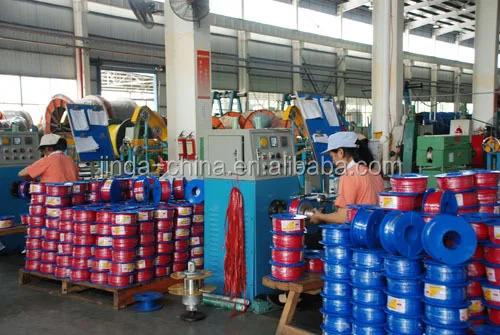

Workshop
Our Services
OEM/ODM | welcomed |
MOQ | The MOQ is flexible and we accept small order in the first time as trial order. |
Shipping | by sea,by air,Fedex,UPS,UHL,TNT |
packing | polybag,PP bag,PE bag,PVC bag with card,blister ,parper box |
Trade term | EXW factory,FOBshanghai,Ningbo,shenzhen, CIF your harbour |
Samples | available |
Delivery Time | 5-15days, 20'container 20days,40'container-30days |
Payment | 30% deposit; and 70% paid by BL coppy |
Payment Method | L/C, T/T, WESTERN UNION, MONEYGRAM,PAYBal |
Certificate | ROHS /UL/CE |
| Warranty | 3-5years |
| Quality control | 100% quality control |
| Advantage | cables and connectors making since 1987 |
FAQ
Q1:Are you a trading company or manufacturer?
Changzhou Jinda electronics Co,Ltd. is a professional manufacturer established in 1986
,not a trading company,Thus,we can control your order from the first begining to the last delivery
what we seek is a long cooperation,not a lump sumt order
Q2: What kinds of products does Changzhou Jinda manufacture?
we start from 1986,now we can make most cables and connectors in the market, even if we can't make ,we know china market very well ,so we can tell you where you can buy the prodcucts you needed or we buy it for you !
Cables:
av cable,usb cable,tv cable,power cable,xlr cable,speaker cable,optical fiber cable,telephone cable,coaxial cable,microphone cable,displayport cable,test leads and so on
Connectors:
cctv camera connector,banana connector,binding post,audio adapter,dc connector,rca connector,tv connector,auto cigarette connector,battey case,speaker terminal board,xlr connector,rf connector,din connector and so on
Q3:Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.
You can send us the artwork by email in JPEG or TIFF format.
Q4:Do you have inspection procedures for electronics appliances?
100% self-inspection before packing
Q5: Is the MOQ fixed?
The MOQ is flexible and we accept small order in the first time as trial order.
Q6:Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
our factory address information(1hours train from shanghai or Ningbo)
:
CHANGZHOU JINDA ELECTRONICS CO,LTD
Address:Banshang district,Lijia Town,Changzhou city,Jiangsu province,China213165
Tel: 0519-86731686
whatsApp/MP:+8613407560220
Wechat:13407560220
QQ:2853683161
Skype:guantingyu88
Contact: Anna Guan
