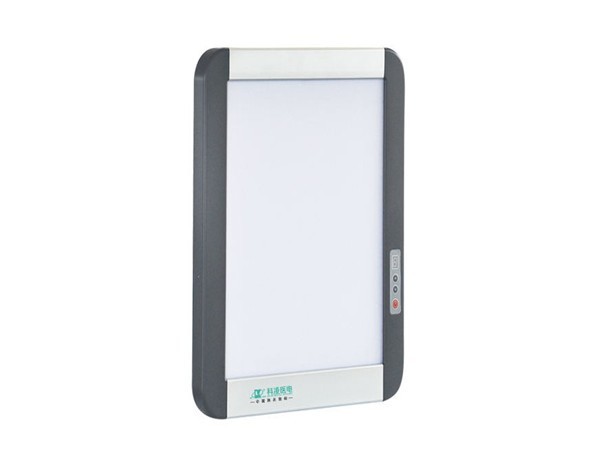

(X-LEDIT) single x-ray film viewer
X-LEDIT HIGH BRIGHNESS ILLUMINATOR FILMS
Internationally technically advanced ultra-bright LED is adopted in this product as the backlight source, suitable for the viewing and diagnosis of high-density mathematical films and mammography films.
It is designed to have an ultra-thin and vivid three-dimensional layered panel frame. Moonlight silver and dark grey are selected as the color combination for the panel frame. With such new-type materials as high-strength electrophoresis aluminum alloys and plastic alloys, the entire illuminator is only 4cm thick.
It is with the function of automatic switching-on upon film-inserting. The film-viewing area will illuminate once the film is inserted, and the delayed switching-off function after a film is removed is set up, which may effectively increase the service life of the product. led x-ray film viewer/x-ray viewing light box/x ray film view box
The large scope of brightness adjustment (300~5000cd/m²) fully meets the requirements of viewing and diagnosis of films of various densities such as analog, digital and mammography films.
The service life of the LED light source is as long as 100,000 hours.
Imported acrylic transparent panel is adopted, with high fineness and more uniform and soft light. The service life is long, and it is deformation-resistant and discoloration-resistant for this led x-ray film viewer/x-ray viewing light box/x ray film view box.
With an advanced LED backlight source technology, there is no dark zone in the film-viewing area. The brightness uniformity of viewing screen exceeds 90%.
The 90V~240V global voltage self-adaptation built-in power supply is with advanced technologies and saves space.
TECHNICAL SPECIFICATION:
External dimensions(mm): 470*545*40
Film-viewing area(mm): 360*440
Backlight source type: LED Color temperature: 9,300K
Service life: 100,000 hours
Average brightness: 300 cd/m2-4000 cd/m2
Average illuminance: 900 lux-13,000 lux
Brightness uniformity coefficient of viewing screen:≥90%
Appropriate films: ordinary analog x-ray film
high-density digital x-ray film
mammography medical film
Power supply:voltage self-adaption built-in power supply
