High Pressure Pipe Cleaning Tool Parts Effective Spray Nozzle

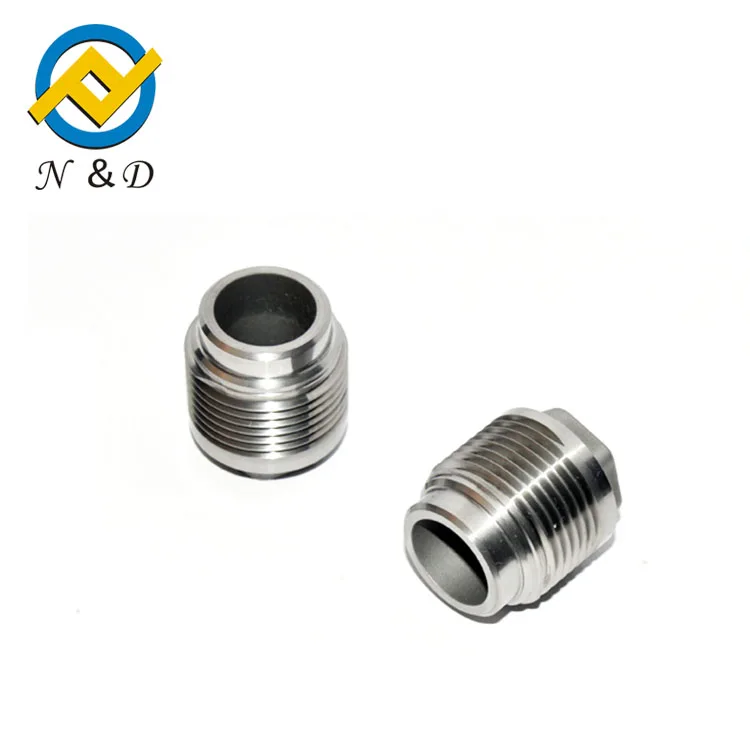

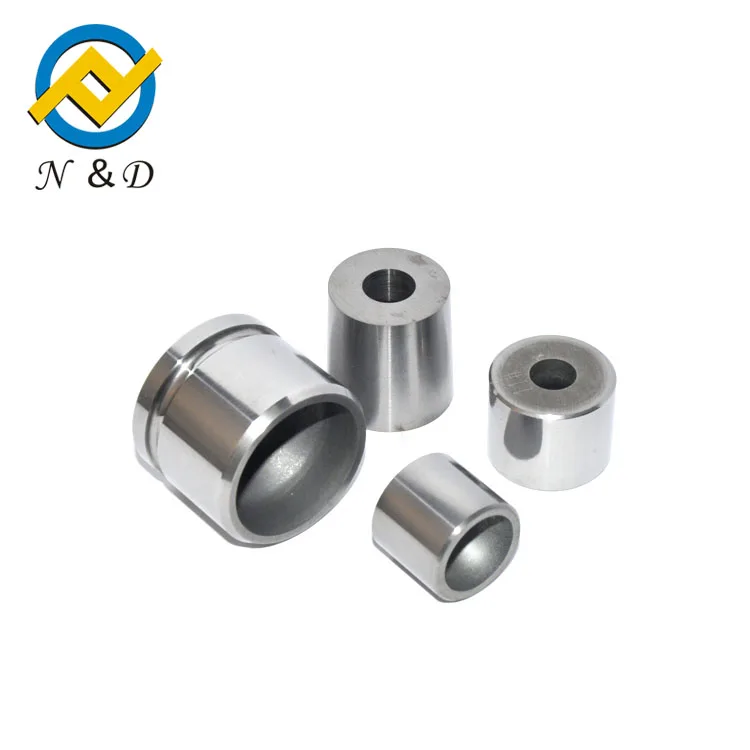

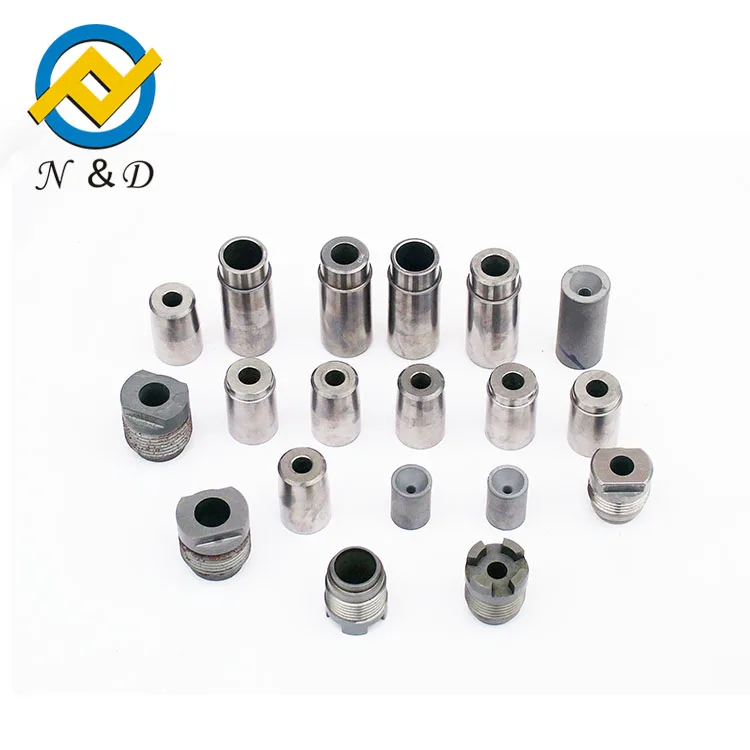

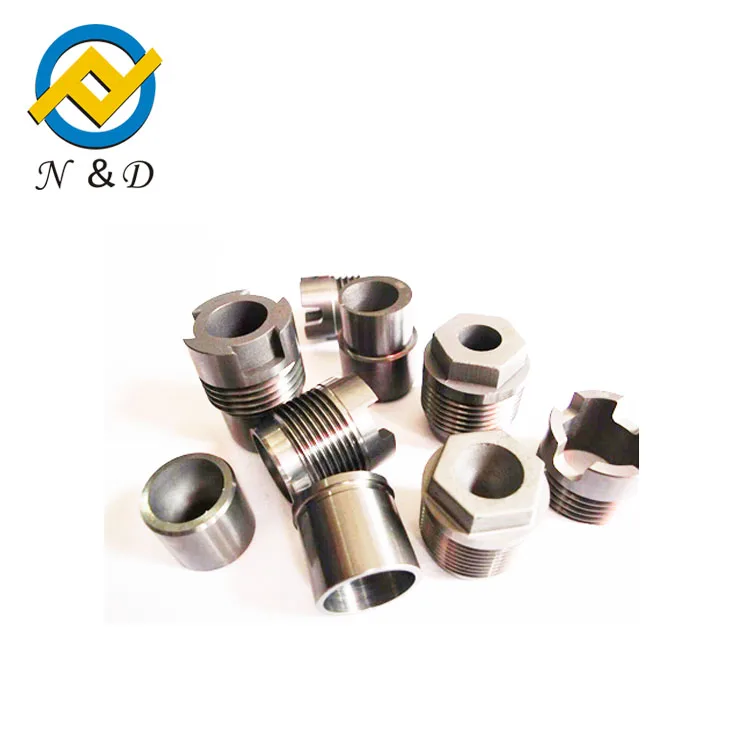

 Tungsten Carbide Spray Nozzle Description



•


  A nozzle is a device designed to control the direction or characteristics of a flow (especially to increase velocity) as it exits (or enters) an enclosed chamber or pipe via an orifice.





•


   For nozzles, tungsten carbide nozzle is the most rugged and durable and provides the best value.





•


  Tungsten carbide nozzle is made by the precision machining with the tungsten carbide materials (super hard alloy). The hardness reached over HRA90 degree while the antibending degree reached over 2300N/mm.





•


  Tungsten carbide nozzle is made from hot pressing with straight bore and venturi bore type.





•


   Tungsten carbide nozzle has been widely used in sandblasting and shot peening equipment, offering a long life with optimum air and abrasive use.








Specification



Nickel Binder Grade
Grade	Binder(wt%)	Density(g/cm3)	Hardness(HRA)	TRS(≥N/mm2)
YN6	6	14.7	89.5	1520
YN8	8	14.6	88.5	1710
YN9	9	14.5	87.5	1820



Cobalt Binder Grade
Grade	Binder(wt%)	Density(g/cm3)	Hardness(HRA)	TRS(≥N/mm2)
YG6	6	14.85	90.0	1520
YG6X	6	14.9	91.0	1450
YG6A	6	14.9	92.0	1540
YG8	8	14.75	89.50	1750
YG12	12	14.30	88.0	1810
YG15	15	14.20	87.0	2050
YG20	20	13.5	85.5	2450
YG25	25	12.5	84.0	2550





QA/QC Practices:All raw material physically tested prior to machining







 Our service



• Supply rough and finished products, underground or ground carbide parts.


• Our material covers:WC-Co alloy, WC-Ni alloy,WC-Ni/Co alloy,WC-Tic-Ni/Cr alloy etc.


• Both standard and nonstandard parts according to the customers’drawings or samples are  all available from us.


• Bore sizes and lengths available upon request.


• Customized service is acceptable.





 Application Field

•


  Tungsten carbide nozzle is widely used in such industries as surface treating, sandblasting and painting, electronics, chemical processes.





•


  Tungsten carbide nozzle is also used in different applications like for wire straightening, wire guides and others.












FAQ:



1.What's your MOQ?



  We will indicate the MOQ for each item in the quotation list. We accept the sample and trail order.



2.Can I negotiate the Prices?



Sure, we may consider discounts for bulk order of products.



3.How long will it take to complete my order?



For the stock items, we can arrange the shippment within 2~3days after received your payment. For the customized items, we will indicate the delivery time in the quotation list.



4.Can you give warranty of your products?



Yes, we extend a 100% satifisfaction guarantee on all items. Please feel free to provide timely feedback if you're not satisfied with N&D's Quality and Service. For the overseas orders, if there is a quality problem, please kindly to provide the picturers to show the problem by e-mail. We will provide the replacements to you at our cost according to actual conditions.



5.Can I visit you?



Sure. If you're a volume buyer and would like to visit our in-house products and production line, please contact us to make an appointment.
