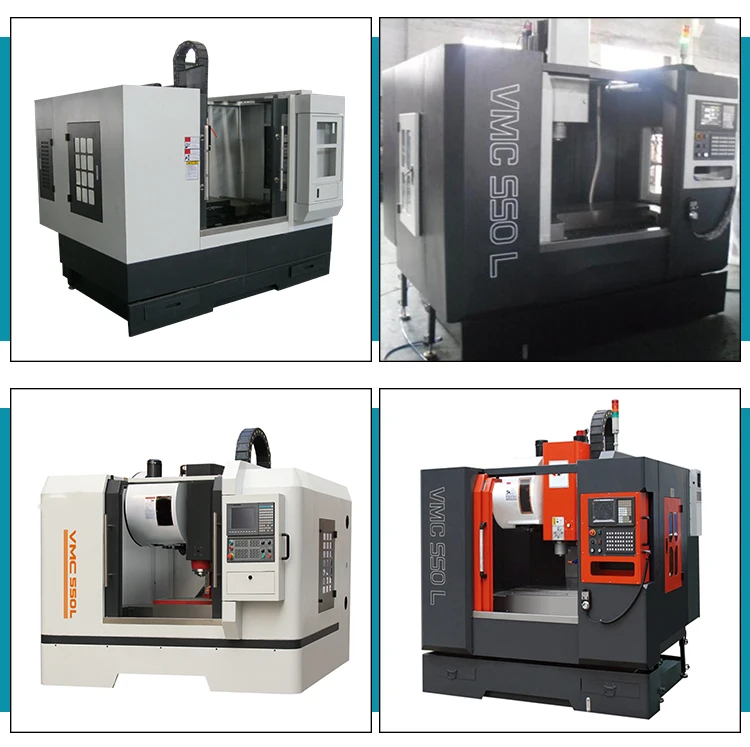

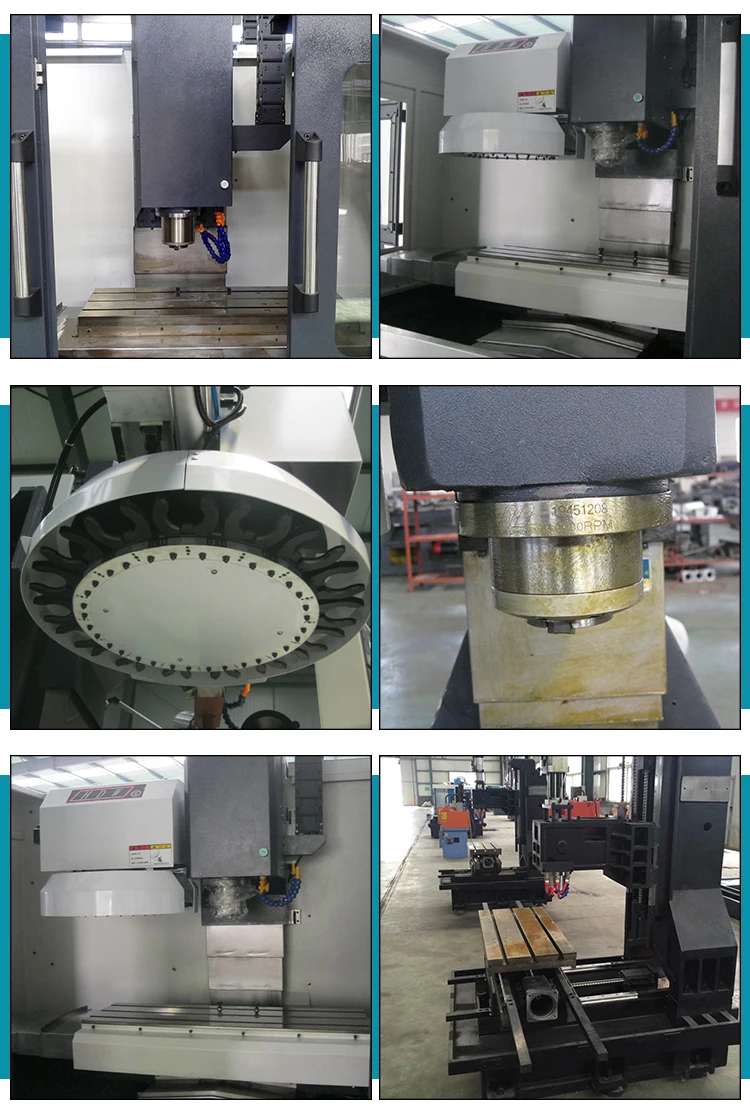

China milling drilling machine cnc metal milling machine price VMC550L



This VMC is suitable for the mechanical processing and mold making.

And it can adapt to the processing requirement from rough machining to finish machining.

It can also finish many working procedures like milling, drilling, tapping, boring etc



Spindle	Motor power		2.2/3.7kw(servo)
	Distance between the spindle end and the work surface		100 -470 mm
	Spindle center to column guide rail		380 mm
	Speed		8000/10000 rpm
	Taper of spindle		BT30
Work bench	Area of work bench		320×800mm
	Load capacity		300 kg
	Working mesa from the ground		880 mm
	T slot number/width/gap		3/14/100
Distance of travel	X-Axis		500 mm
	Y-Axis		320 mm
	Z-Axis		370 mm
Feed	X-axis fast moving		10 m
	Y-axis fast moving		10 m
	Z-axis fast moving		8 m
	fast cutting speed mm /min		1-5000 mm/min
Precision	Positional accuracy		0.022 mm
	Repeat positional accuracy mm		0.012 mm
Tools	Max,diameter		120 mm
	Max,length		200 mm
	Tool magazine capacity		16
	Qty time of tool changing S		6 s
	Power Supply	Voltage(V)/frequency (Hz)	380/50
		Total capacity(KVA)	10
	Weight		1960 kg
	Dimension		1600×1860×2100 mm









1.Q:Can we pay by L/C?

   A:Yes, we can do T/T, L/C etc.

2.Q: What is your payment terms?

   A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.

3.Q: What is your delivery time?

   A:Usually, one machine takes 15-20 days. If we have in stock, we can arrange

       shipment as soon as we receive the payment.

4.Q: Can we go to your factory and learn how to use the machine?

   A:We sincerely welcome you come to our beautiful city. The training is free. It would

       be great honor to us.

5.Q:Can you arrange training in our place after we bought your machine?

   A: We can arrange oversea training. Buyers will be responsible to the costs.

6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your

machine?

   A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.

7.Q: Do you have CE certification?

   A:Yes, we have CE certification, machine quality is guaranteed.

8.Q: Is your company a factory or trading company?

   A:We are factory and have more than 18 years production experience.

9.Q: How can I get the quotation?

   A:You can send the inquiry on alibaba.com, or send email to us. It is better if you can

       tell what is your detailed requests. We will reply to you within 1 hour.

10.Q:About your cnc machining center, I want to know if they can install the 4th axis.

   A:Our cnc machining center can support the 4th axis. You can tell us the working

       table size or the travel of X,Y,Z axis of machining center you need. We will give

       you a recommendation about machine model.
