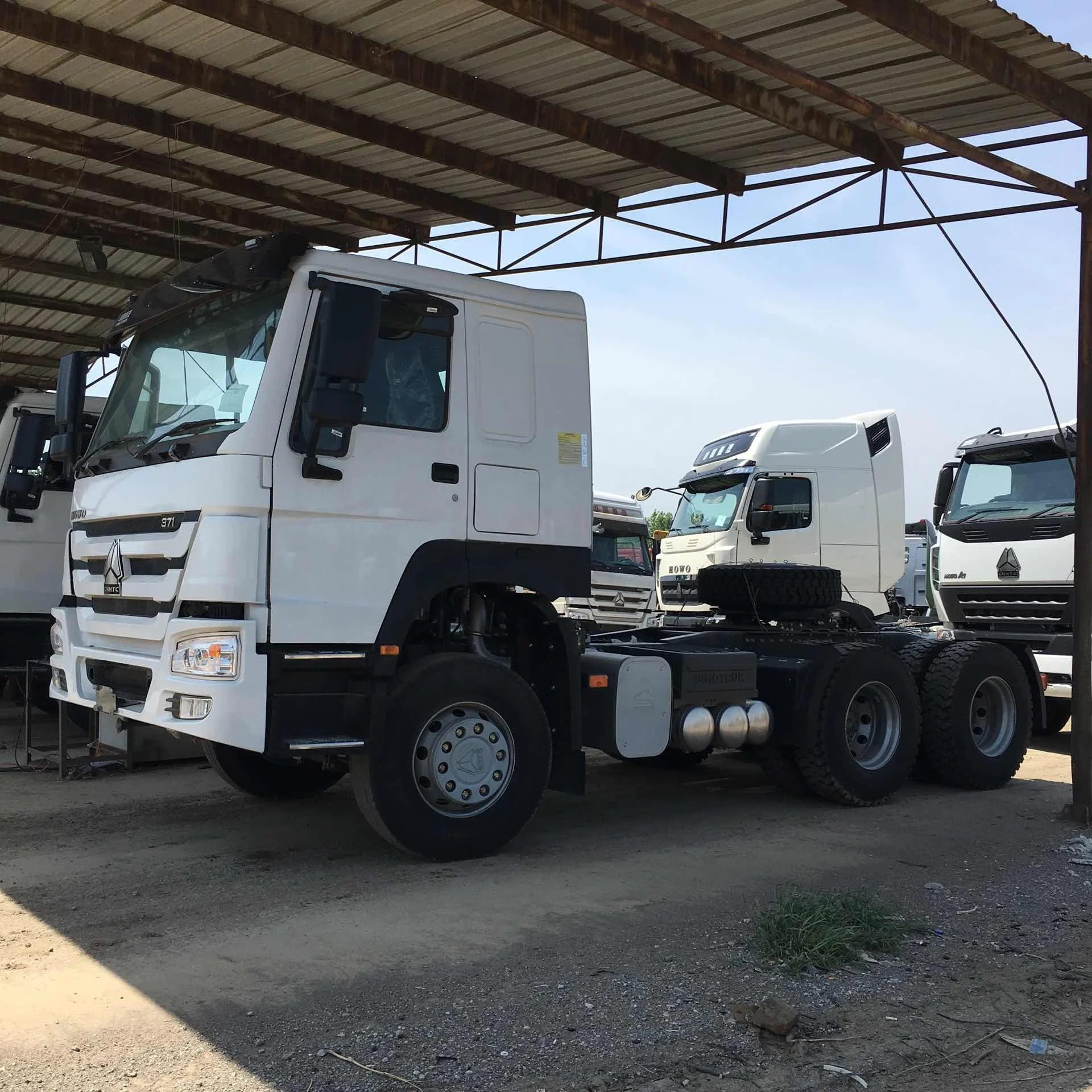

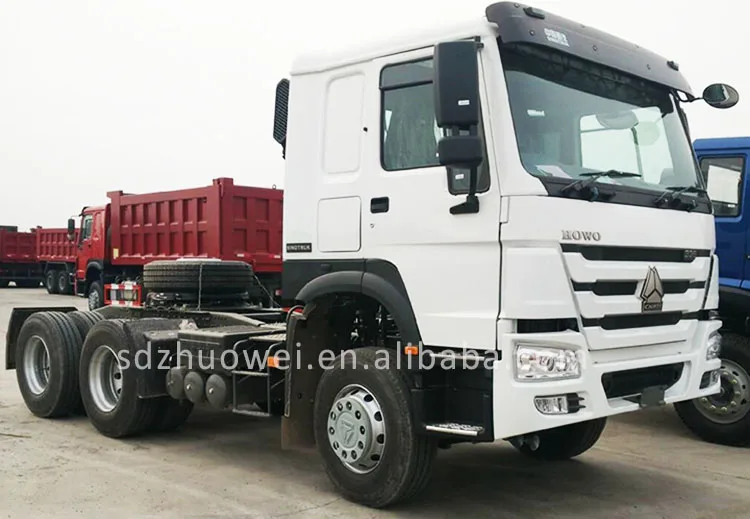

Sinotruk Howo 371HP 420HP 10 wheels used howo tractor truck for Sudan


_20200220101904.jpgused truck head for saleH7125ec1984bc4e4f806f4bce85c4992ey.jpg




















































































































































MAIN DESCRIPTION



Overall Dimensions



10430mm*2496mm*3600mm(L*W*H)



Dead Weight



17450kg



Front Overhang



1500mm



Wheelbase



5800mm+1400mm



Rear Overhang



1730mm



Rated Tow Weight



25ton



CHASSIS



Chassis Brand& Model



SINOTRUK HOWO ZZ1257M5847C



Axle Number



3 axles, driving type 6x4



Cab



HW76, left hand drive, air-conditioner, one sleeper



Engine



SINOTRUK WD615.87, 290hp, Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L



Gear Box



FULLER 9, No. of speeds: 9 forward & 1 reverse



Traversing Mechanism



turning system pressure 18MPa



Clutch



GF420J, Single-plate dry clutch



Rear Axle



HW1697 tandem axle, rated load 2x16ton, ratio 4.22



Wheels and tires



Rim 8.5-20; tire 12.00-20, 10 units, with one spare wheel



Brakes



Service brake: Dual circuit pneumatic brakeParking brake: Spring energy, compressed air operating on rear wheelsAuxiliary brake: Engine exhaust brake



TOW BODY



BOOM



Max. lift weight when boom all retracted



18000kg







Max. lift height when boom all extended



5830mm







Telescopic distance



3050mm







Range of elevation angle



3°-39°



UNDER-LIFT



Max. parking lift weight when under-lift all retracted



13000kg







Max. parking lift weight when under-lift all extended



4200kg







Rated running lift weight when under-lift all retracted



6000kg







Max. effective length



2630mm







Telescopic distance



1500mm







Range of elevation angle



-8°-73°



WINCH& CABLE



Rated pull of winch



100KN*2units







Cable diameter*Length



18mm*30m







Min. line speed of cable



5m/min



LANDING LEG



Span of rear landing legs



1460mm








Contact Me



Eloise Zheng

Mob/WhatsApp:+86 18615688591




Add:Room B-2409 Sanjian Court, No, 22 Minsheng Road,

Jinan City, Shandong Province, China. 250000

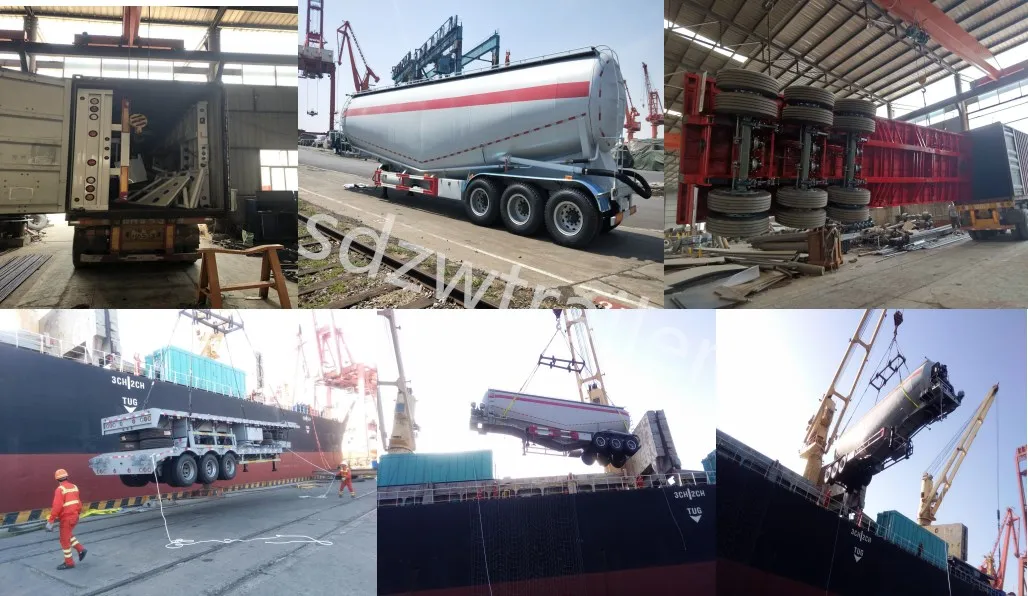

Packaging & Shipping


The trailers and trucks will be transported by container or by bulk cargo ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers and trucks will be polished with wax before shipping.





We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.


photobank (10).jpg


photobank (32).jpg





Company Information





Established in 2000, Shandong Zhuowei is a professional manufacturer with 500 employees and an annual sales volume of $8,000,000 and located in Liangshan, Jining City. We provide safe and reliable trailers for clients all over the world.





We specialize in manufacturing various trailers, trailer spare parts, tractors, dump trucks, and so on. Shandong Zhuowei International Trading Co.,Ltd has been authorized ISO,CCC, CE,and B&V certificates. We build up our reputation through advanced techniques and excellent quality control. Our products are popular in South Asia, Middle East, Africa, South America and other markets.





QQ20190513181743QQ20190513181637QQ20190513181609


_04





Our Services



         back to homepage


1.Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.





2: Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will be better to serve the global customers.





3: We are serious about after-sales service.














FAQ


1.How do you control quality?


We have a standard procedure to inspect the materials and products at every stage in the manufacturing process.





2.Do you inspect all your products before delivery?
Yes, we inspect the appearance and functions of the trailers before delivery.





3.Can you satisfy my special requirements?
Definitely! With strong R&D capability, our engineers can get what you need.





4.Do you have after-sales service?


Yes, we have a one-year warrant for every product and dedicated staff at your service.





5.What is your terms of payment?


 30% T/T as deposit, and 70% before shipment. We'll show you the photos of the products and packages before you pay the balance.
