Advantech 4U 15 с двумя разъемами под стойку шасси

Описание и отзывы

Характеристики

Advantech 4U 15-Slot Rackmount Chassis

IPC-611MB-00XBE



Product name	Advantech 4U 15-Slot Rackmount Chassis IPC-611MB-00XBE
Model	IPC-611MB-00XBE
Brand	Advantech
Form Factor	4U Rackmount
Operational Temperature	0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature	-20 ~ 60° C (-4 ~ 140° F)
Operating Shock	10 G (with 11 ms duration, half sine wave)
Operating Humidity	10 ~ 85% @ 40° C, non-condensing
Operating Vibration	1 Grms
Weight	14.2 kg (31.2 lb)
Dimensions (W x H x D)	482 x 177 x 479 mm (19" x 7" x 18.9")







 Introduction:

4U 15-Slot Rackmount Chassis with Front-Accessible Fan



Main Feature:

• The most cost-effective rackmount chassis


• Supports 250/300 W ATX PFC PS/2 power supply

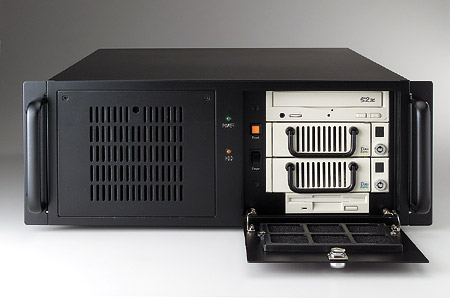

• Easy to install front-accessible drive bays to hold three 5.25" and two 3.5" drives (one front-accessible & one internal)


• Front-accessible USB & PS/2 interfaces


• Designed to withstand environmental extremes, such as shock, vibration and high temperature
