Low Price Static Conductive Sulphate Access Flooring Data Center

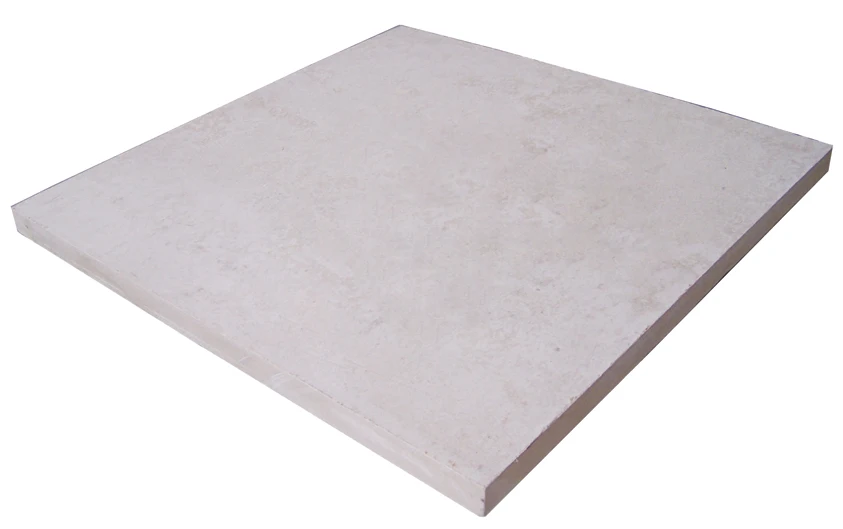

Material: High quality imported calcium sulphate base panel, HPL, PVC, ceramics (granite) tile, and black conductive PVC trim, galvanized steel plate or embossed aluminium foil. Stringer: pressure forming and soundproof rubber pad on top, pedestal could be adjusted height.



Characteristics:

PVC Finish Calcium Sulfate Raised Access Flooring Office

PVC Finish Calcium Sulfate False Flooring Casino

PVC Finish Sulfate Elevated Floor Computer Room

4 High grade, beautiful appearance, easy to fix, convenient for wires;

Range of application: bank, military, government and monitor control center, top grade office and occasions which require higher loading





Technical Specification:



Model No.	Size(mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	Rolling load(N)
			LB	N	KG				10 times	100000 times
FS800	600x600x30	A	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	600x600x30	A	≥1000	≥4550	≥450	≥670	≥13350	≥23000	4450	3560
FS1250	600x600x30	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
FS1500	600x600x30	A	≥1500	≥6675	≥670	≥1005	≥19892	≥34500	6675	5340



Standard Pedestal Specification:



FFH(mm)	tube diameter(mm)	adjustment +(mm)	adjustment – (mm)
≤600	25	25	25
700~900	32	25	25
1000~1500	42	25	25



Other height to be customized

Standard Stringer SPEC: 20x30x540mm

Static Dissipative Calcium Sulfate False Flooring Monitoring Room
