Высокое качество MUP большое отверстие разъем для SIM-карты печатная плата держатель sim-карты белый цвет кардридера

Описание и отзывы

Характеристики

MUP-C713 bigger hole without post 6pin connector



1.General characteristics

   Dimensions:29.65L*17.20W*2.50/2.80Hmm

   Weight:1.0g

   Contact principle:Friction technology

   Operating position:shaft up/down/horizontal

   Mounting system:SMT(post optional)

   Durability:5,000 cycles min



2.Mechanical characteristics

   Insulation material:Thermoplastic,UL 94V-0



3.Electrical characteristics

   Number of contacts(optional):6pins/8pins

   Contact resistance:50MΩ typical,1000 MΩ max

   Insulation resistance:>1000 MΩ/500V DC



4.Solderability

   Wave:not applicable

   Vaporphase:215oC,30sec Max

   IR reflow:230oC,15sec Max

   Manual soldering:360oC,3sec.Max



5.Environmental characteristics

   Operating temperature: -40oC≈ +85oC

   Operating humidity: 10%≈+95%RH

   storage temperature:-40oC≈ +85oC

   Storage humidity:10%≈+95%RH

   Thermal shock: -40oC≈+85oC,5cycles

   Damp Heat:40oC,90%RH,10days

   Salt-mist:35oC,5%Nacl,24H



the Certificate

passed the ROHS & ISO9001

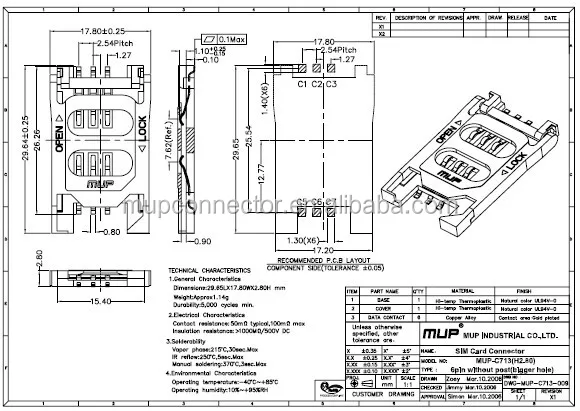

the drawing

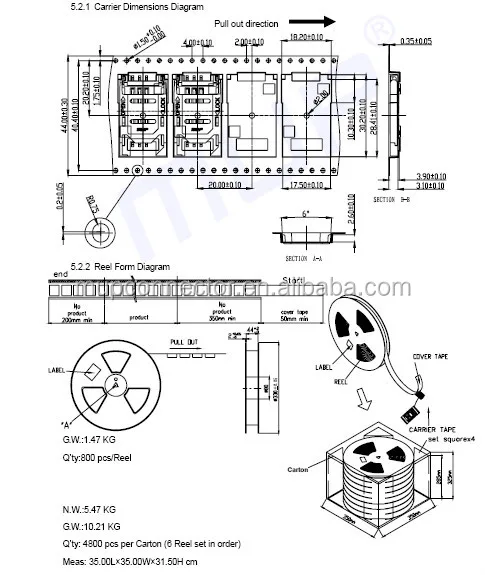

the packing information
