Держатель для смарт-карты MUP Push SMT типа гнездо SIM-карты Wi-Fi роутера и GPS мобильного
- Категории: Sockets for ICs >>>
- Поставщик: Shenzhen,Mup,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
MUP-C719 SMT Type smart card holder Connector
Product Description
General Characteristics | Dimensions | 27.60L*17.80W*1.8H mm |
Weight | Approx 1.35±0.2g | |
Card size | 25.0×15.0×0.76mm | |
Contact principle | Friction technology | |
Mounting System | SMT | |
Durability | 5,000 cycles Min. | |
Material | Insulator | Thermoplastic UL94V-0 |
Contact | Phosphor bronze | |
Plating | Gold over nickel | |
Electrical Characteristics | Number of Contacts | 6 Pins |
Contact highly | 0.65±0.20mm | |
Insulation resistance pin to pin | >1000 MΩ/500 VDC | |
Rated voltage | 50V max | |
Rated current | 1A max., 10μA min. | |
Contact resistance | 50 mΩ typical, 100mΩ max. | |
Dielectric withstanding voltage | 500V AC rms 1min.(sea level) | |
Solderability | Vapor phase | 215℃,3sec.Max |
IR reflow | 250℃,5sec.Max | |
Manual soldering | 370℃,3sec.Max | |
Environmental Characteristics | Operating temperature | -40℃~ +85℃ |
Operating humidity | 10%~ +95%RH |

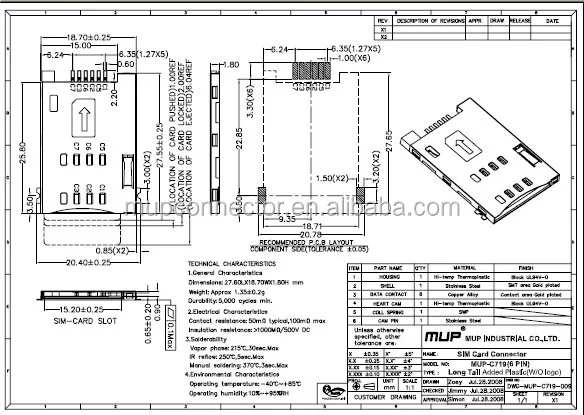

Detailed Images
Product Uses
Applications
They can be used to operate all types of computers, POS, ATM, DVD, TV, electronic meters, water meters, gas meter, set top box, balance reader, medical equipment etc.
Packaging & Shipping
Packing
♦ Inside: Reel packing,900PCS per reel,
♦ Outside: carton,5400PCS per carton
Delivery
Prompt Delivery & Lowest shipping cost : We can get low discount from DHL, Fedex, UPS, TNT, EMS, etc.
Company Information
Certifications
passed the ROHS & ISO9001/14001
Our Services
Price Term | ♦ FOB Shenzhen |
Payment Terms | ♦ T/T, Paypal |
Delivery | ♦ UPS, DHL, FEDEX,TNT ♦ Select the most economic and efficient way. ♦ Sent the tracking number to u after delivery. |
Samples | ♦ Free samples will be sent on request. ♦ The samples lead time is within 3-5 days after u confirmed. |
