Offset Printing press



CF47II-NP offset printing machine,offset printing press,machine.





Instructions:



1.  Applicable scope:

 This machine is suitable for schools,hospital,Medium and small companies etc.

2. Products:

business forms,exam papers, prescription sheet,NCR(carbonless)bills,notebooks,exercise book etc.

3.consumable items:

paper from 17-250gsm,normal 1.95mm blanket,common aluminium plate.

4.Main fuction:

Printing,Numbering,perforating can be finished at a time.

5.Main parts:

1)much thicker and heavier cylinder Pressure NO PROBLEM! 2.)cast iron wall and metal case hardening and galvanized .3) gears and bearings hardened.4)electric apparatus.Panasonic PLC,Taian Converter.Mikom sensor. Automatic controll system.

6.Feed system/Inking system/numbering system/delivery system:

Auto-feeding system,double sheet sensor. Auto damping and inking device/numerbing perforating 2 in 1./delivery auto up and down system.

7.Operation:

We send the manual and videos. If possible we can send the techician.

8.Aftersale service:

The machine have a year warranty. We send as many spare parts as possible.





Specification:



Model No.	CF47-NP
Maximum printing area	490X350MMmm
Maximum paper size	470X365MM
Minimum paper size	200x148mm
Paper type	17-250gsm
Number of ink rollers	Main machine system :14 pieces (3 form rollers) NP system 6 pieces 2 form rollers
Number of dampening rollers	4 pieces (1 form rollers)
Minimum space between codes	Vertical code:vertical 71mm horizontal 48mm	Gripper edge 25mm
	Horizontal code:vertical 47mm  horizontal 60mm	Gripper edge 25mm
Registration mechanism	Roller type side lays
Printing speed	2000-8000 sheets/hour
Motor power	Main motor: 0.75KW/220V	Air pump motor:0.55KW/380V
Machine size	2089x940/1040x1189mm
Weight	910KG

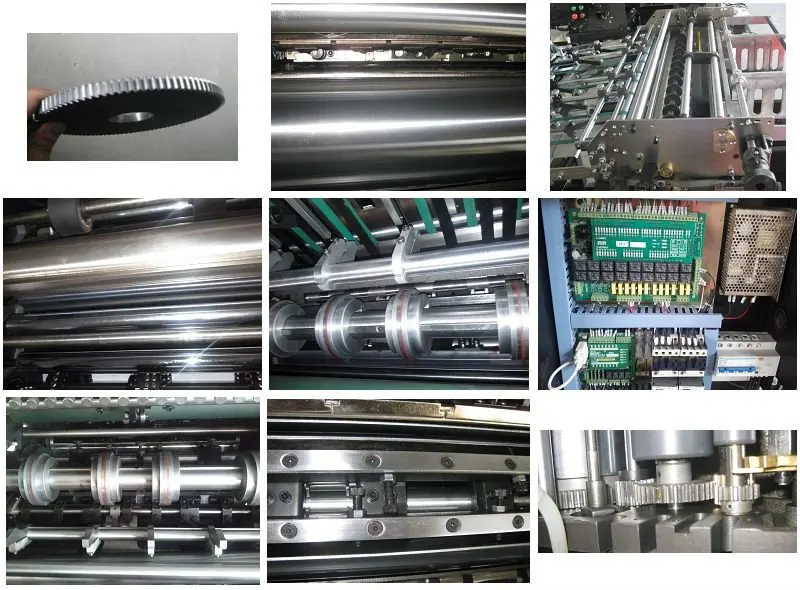

 Parts:
