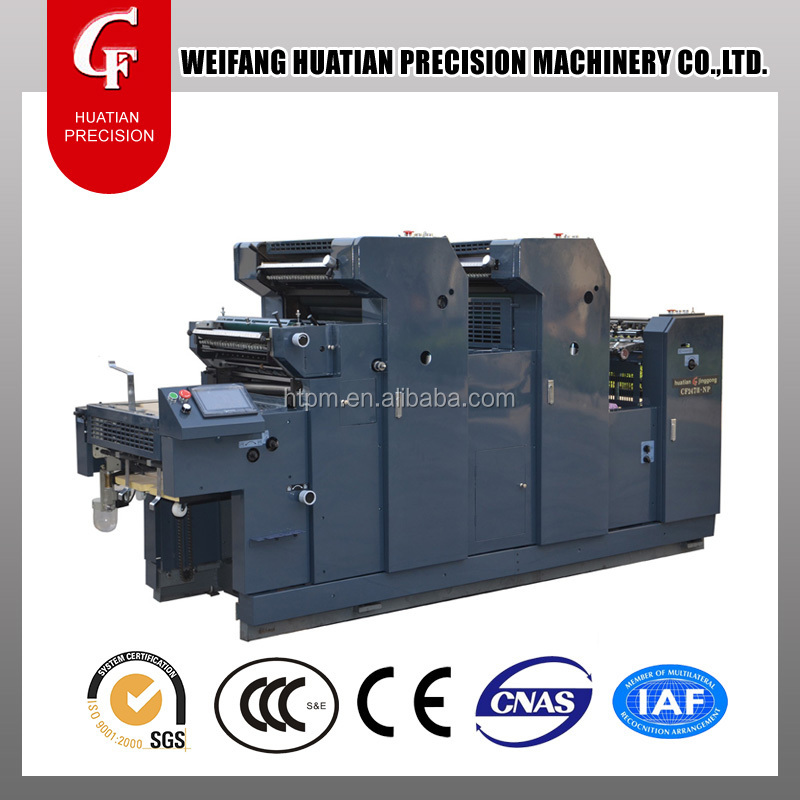

Two color printing machine CF4IINP-2



   WEIFANG HUATIAN PRECISION MACHINERY CO.,LTD.. is the manufacture of printing machine and uv machine ,we have been in this business for more than 7 years.



   Huatian Mode CF47IINP-2 number printing offset press is stable in performance, fine in workmanship, consisting of high quality and advanced components.



 *The advantage of CF47IINP-2:



     This is a most convenient, high-efficiency and multifunctional offset press that can improve printing quality, enhance work efficiency and increase productivity for users.



 The detailed  information for CF47IINP-2



    This is a new type of multifunctional offset press developed for high-grade color printing, hiberarchy text overprint, number printing, perforlation etc to meet all kinds of complicated printing requirements, in addition to the functions of Huatian CF series offset presses,it also has the following features:



The technical features:



1.Two printing units and a number printing and die cutting unit are closely connected, so it has complete functions in color printing, featuring well arranged screen lines, clear images, bright colors, free from cross color, and high printing speed .

2.Independent paper feeding with small errors, ensuring overprint precision.

3.A set of movable water-ink rollers ensures the other printing unit will not be worn during single color printing.

4.Effective PS plate installation and rubber blanket cleaning space for convenient operation.

5.The machine with compact structure occupies a small area and the operation is flexible and convenient.

6.All printing work can be complete in one pass for paper thickness from 17g to 250g and for number printing with longitudinal and cross die cutting.



*The technicial parameter:



Maximum printing size	454*345mm
Maximum paper size	470*365mm
Minimum paper size	90*140mm
Paper type	17g-250g/m2
Number of inking rolls	First printing unit: 13, with 3 forme rolls Second printing unit: 14, with 3 forme rolls
Number of water rolls	4 in each printing unit (1 forme roll in each unit)
Registering mechanism	Roller type side lay
Printing speed	2000-8000 sheets per hour
Minimum number space	Vertical coding: 71mm Vertical, 48mm Horizontal Horizontal coding: 47mm Vertical, 60mm Horizontal ,      Gripper edge: 25mm
Motor power	Main motor1.5KW	Air pump motor0.55KW
Electric supply	380v/50HZ(380v/60HZ Operational)
Machine size	CF47 series 2290L*940W*1280Hmm
Weight	1000KG

  This machine is very effective,it could print 4 color work.and it is with the top quality and reasonable price.it is a good choice for the printing factory.





this is the pinted samle

V



 FAQ:

1.Question: Are you Manufacture or Trading Company?

Answer:We are manufacture for the offset printing machine for about 12 years. And we have customer in about 60 countries.we have the 1-4 color offset press, collate machine . Uv coating and spot uv machine. computer paper production  line ,folding machine. Binding machine ,die cutting machine and flexo graphic machine .

2.Question: what is your payment term and delivery time ?

Answer: we accept TT,30% prepaid as deposit, and before we delivery the machine, you need to pay us the balance . We could arrange the delivery within 10-30 days after we get the deposit.

3.Question: How is the quality for your machine ?

Answer: for the spare parts, most of  them are  manufactured  by ourselves,and most of them are done the hardness process treatment. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as UBC, Yaskawa, Siemens, NSK, Delta, Panasonic etc.all the machine will be installed in high precision and be tested for many time before delivery.

4.Question: How your company provided installment and traing and after sales service?

Answer: we will supply installing and training for all our machine if customer requested.and after the installment and training ,if the customer think ok, then they sign on the certificate, and then our technician left . we also provide 1 year guarantee,if any problem for our machine, we will do our best to settle the problem within 10 days by changing spare parts or sending technician to customer factory.
