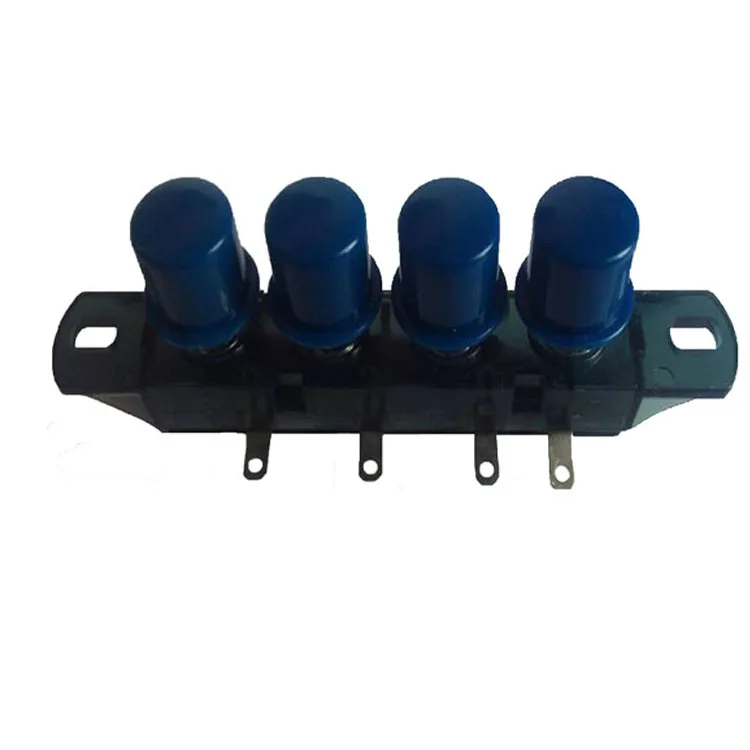

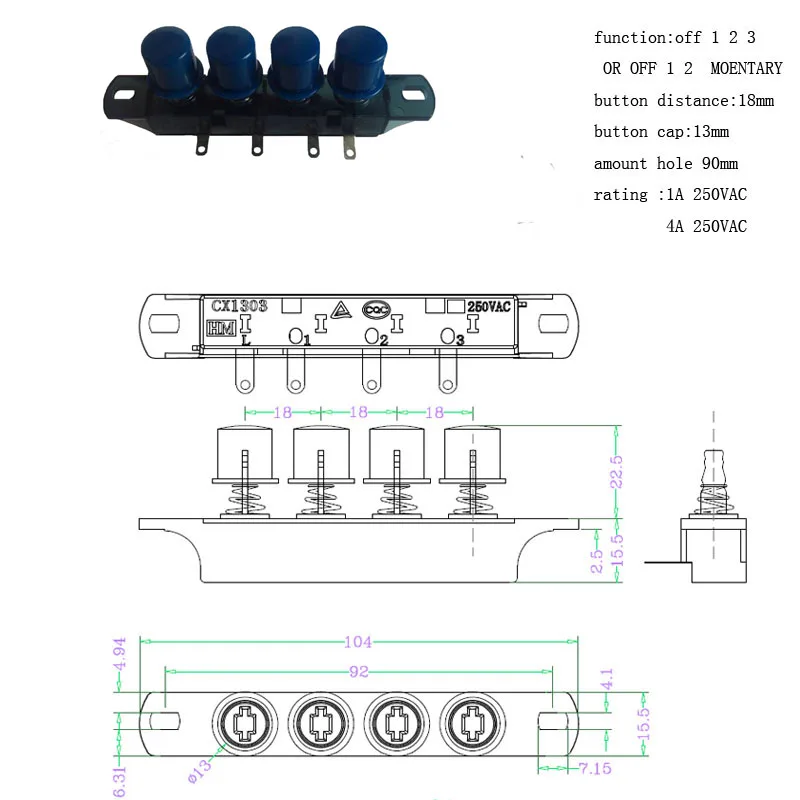

piano key switch power push button switch









 function 1

off 1 2 3 . position off  is top bits,1 2 3 position are interactive lock which means only single one of them can be pressed done at one time

function 2

off 1 2 3 , off positon is stop bits, both 1 and 2 are interactive lock which means only single one of them can be pressed done at one time. 3 position is single one it can be locked by itself and rest



Electrical Rating	1A250V AC, 4A250V AC
Button distance	18mm
Temp(C)	80°C
Circuit/ Functions	OFF L1 L2 L3 montary  or off L1 L2 momentary
Wiring specifications	22-18AWG UL1015
The keyboard distance	18mm
materials	PC V0 ABS spring copper
Wire Connect	Soldering wires or Inserting wires (without terminals outside)
life time	10000cycles
