Программируемый аудио цифровой Конференц-контроллер DSPPA MP9866II для системы видеоконференции

Описание и отзывы

Характеристики

Programming audio digital conference controller

for pa system video conference system

conference system







Features

* vedio conference system One controller support 35 microphone units, three channel outputs for microphone units connection
* vedio conference system All of the equipments are connected hand by hand for easy wiring and maintenance
* vedio conference system All of the system are communicated through standard & secured 8 Pins conference system cable

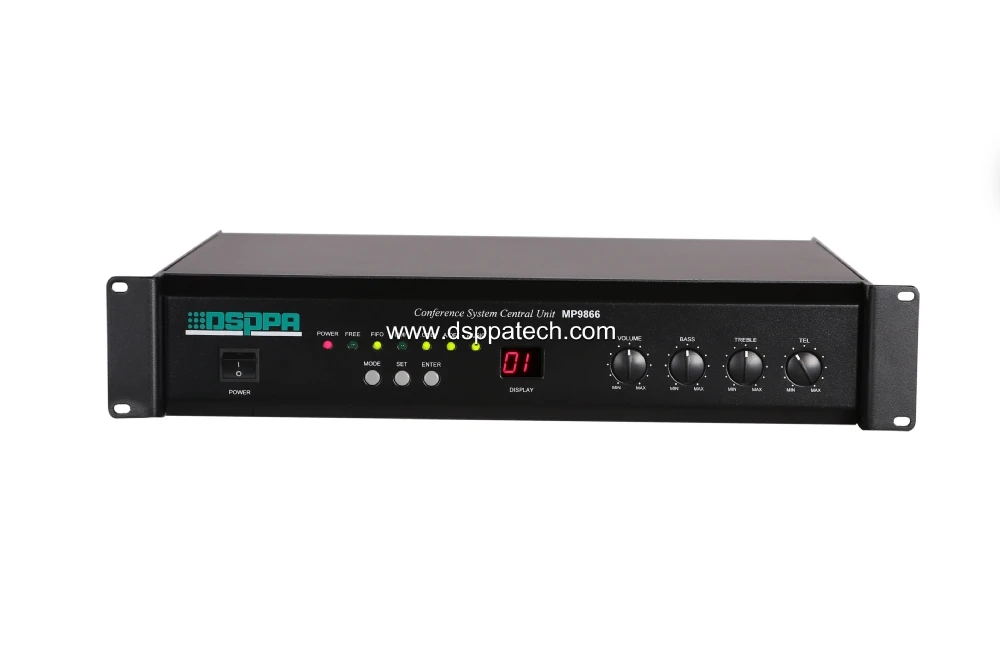

* vedio conference system Working mode directive lights are located in the panel, 3 mode function setup buttons: “Mode”, “Set” and “Enter”
* vedio conference system Supporting three conference modes: Free Discussion Mode, Rotation Mode and Speech Limitation Mode.
A, Free Mode: attending Mics can talk freely by turning the button on and shut in down after the speech
B, Rotation Mode: 1-19 attending Mics mutual rotation speech
C, Speech Limitation Mode: set random 1-19 attending Mics to speech limitation
* vedio conference system Chairman Mode is available: a), Chairman Only/Chairman Normal b), Chairman warning Tone is optional:Yes/NO
* vedio conference system Teleconference input interface: teleconference is available
* vedio conference system Two line outputs for sound amplification system
* vedio conference system Feedback restraint circuit inside: the High/Low pitch adjustable circuit adjusts system sounds independently; the microphone volume adjustment makes the sound clear and more resonant

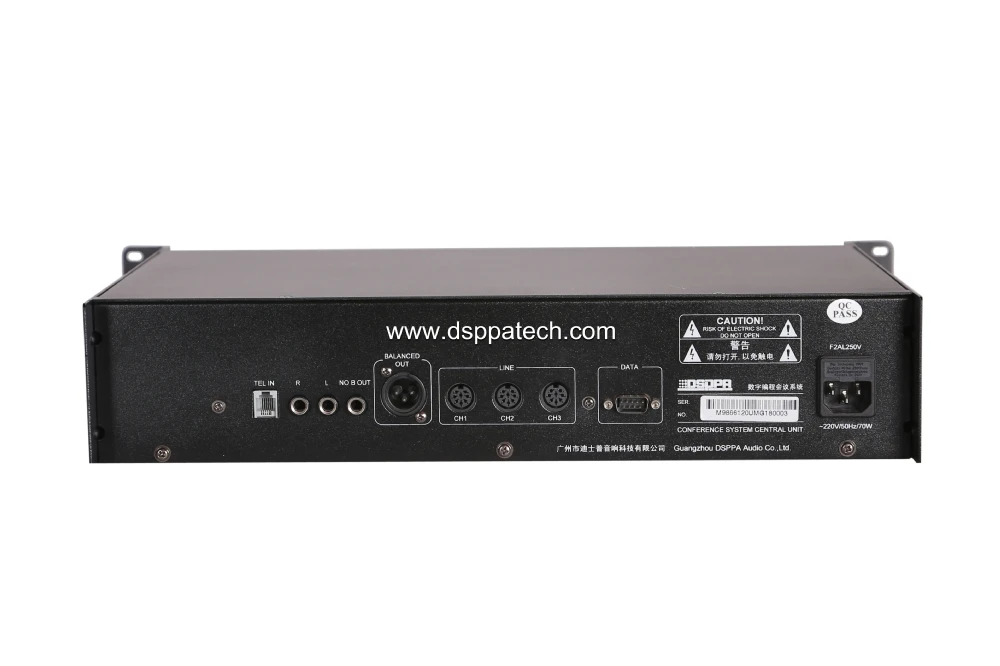

* vedio conference system All kinds of equipment accessing manners are adapted to balanced line output interface, left/right line output interface and unbalance line output interface
* vedio conference system Rack mount and tabletop design; AC 220V, 50-60Hz operation



Description

vedio conference system  Digital Programming conference system MP9866II includes Conference Controller MP9866II, Chairman Conference Microphone CM60II, Delegate Conference Microphone CM61II, Conference Cable Connector, etc. vedio conference system With complete digital design and supporting kinds of conference system has first-to-speaker rights and line up automatically function.



Specification



Model	MP9866II ( audio system)
Power Supply	AC220V
Static Power	8W
Maximum Power	65W
Output Power	≤36W/18V
Audio Power	Impedance: 100 W
Microphone Input Sensitivity	100 ± 10mV
Frequency Response	50Hz ~16kHz
S/N Ratio	>65db
Total Harmonic Distortion	<0.5%
Weight	6.5 kg
Unit Size (mm)	(L×W×H) 484 x 365 x 88
Color	Black













 conference system



About DSPPA audio: 26 year audio manufacturing history, more than 1,000 workers, 150 R & D engineers, 3 SMT machines, 3 years quality warranty, CE, RoHS certificate; Chief editor of Technical Code for Public Address System Engineering of PRC; PA system supplier of 2014 Sochi Winter Olympics; PA Supplier of 2010 Expo Shanghai China;PA Supplier of 2008 Beijing Olympics.



Amplifier range: PA Mixer amplifier, Zone amplifier with Mp3, tuner & CD, Power amplifier, Class-D power amplifier.

Loudspeaker range: Ceiling speaker, horn speaker, fashion speaker, wall mount speaker, column speaker & garden speaker.

System range: Voice evacuation system, cyber-net PA system, IP network PA system, digital conference system and simultaneous interpretation system.
