125A 200Amp 300 Amp 500Amp 220V Ats ручной переключатель для

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

Agreed thermal current Ith	16A-3200A
Rated insulation voltage Ui	750V
Rated impulse withstand voltage Uimp	8kV
Rated voltage of the switch copper	AC 440V
Rated work current Ie	100A
Rated connection capability	10 Ie
Rated breaking capability	10 Ie
Rated conditional short-circuit current	100 kA
Rated short-time withstand current Is	9 kA
Trasfer time 1 - 2 or 2 - 1	2.4 s
Control voltage of the switch motor	AC110V, AC220V , AC280V

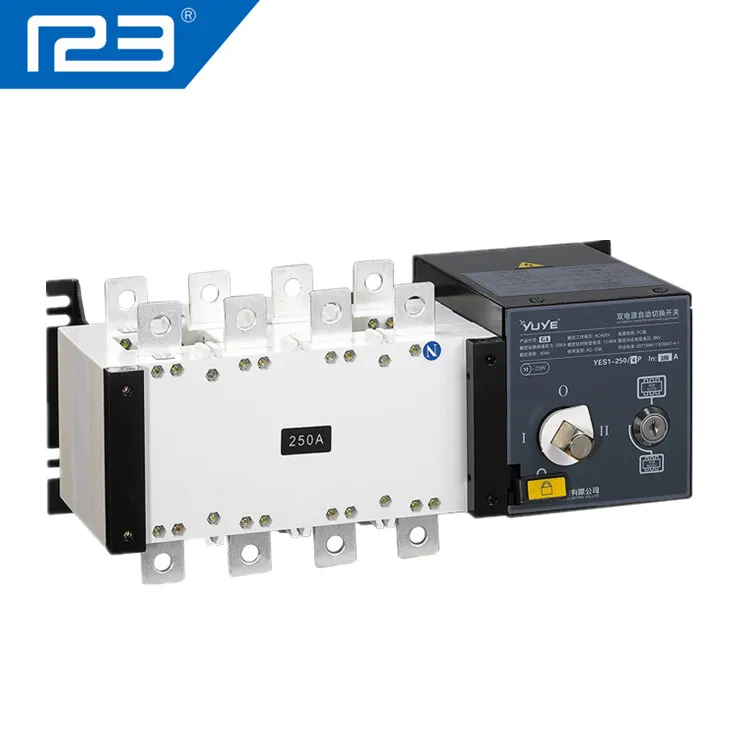

Brand	YUYE (YES1-GA Automatic Transfer Switching Equipment)
Model	YES1-100GA, YES1-160GA, YES1-250GA,YES1-400GA, YES1-630GA, YES1-1000GA, YES1-1250GA, YES1-1600GA, YES1-2000GA, YES1-3200GA
Current specification	16-3200A
Rated Operation Voltage(V)	AC400V 50HZ
Rated Insulation Voltage(V)	690 / 1000
Pole	3P/4P

Main Function

1. Closed-transition and open-transition are both by one electromagnetic winding

2. Simple in structure and convenience in examine and maintain

3. It's a latest reliable sliding contact,with strong overload capacity

4. Eliminate the superabundance electric parts,long service life.

Main Technology Parameters

NOTE: For more detail information you wanan know, pls feel free contact with me. Thank you !
