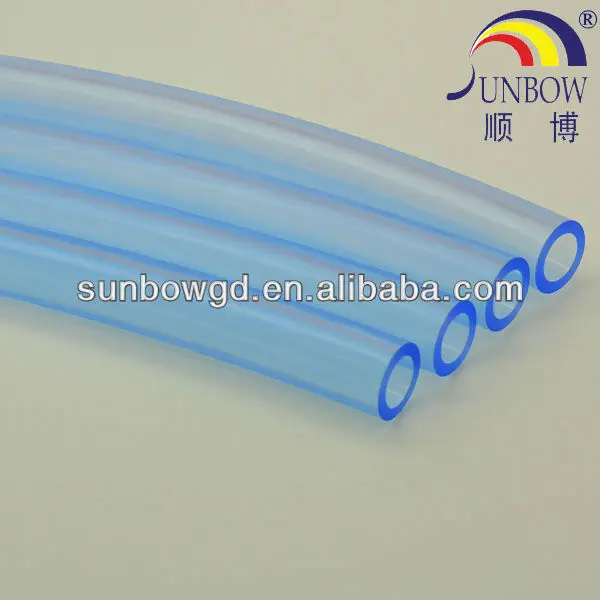

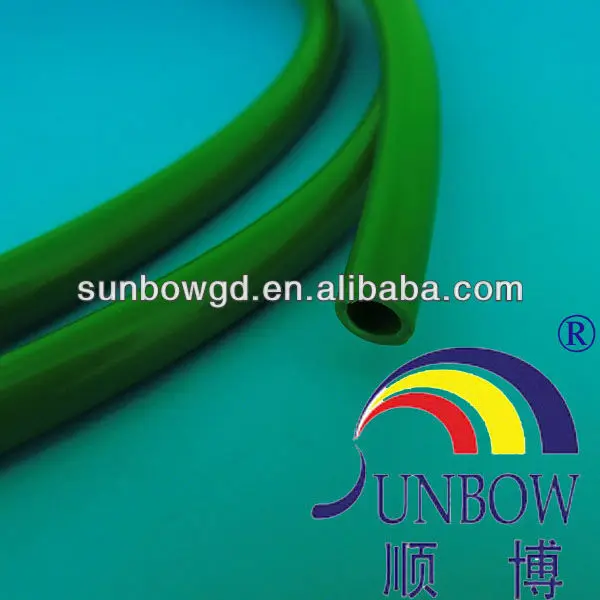

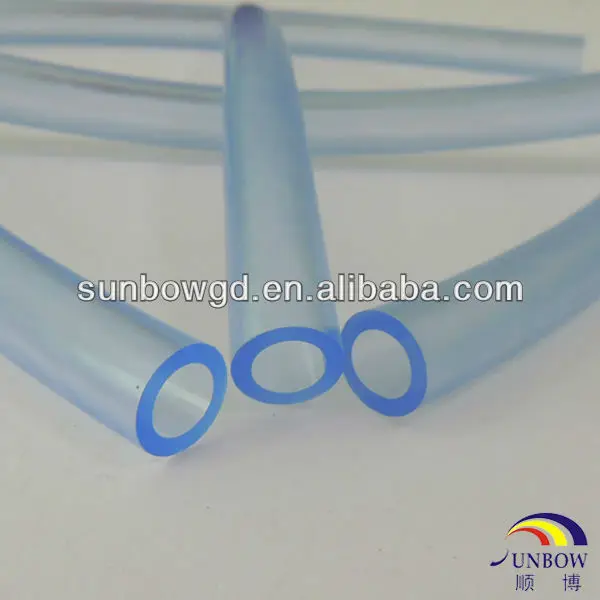

ROHS Rated 600V 150C Electric Plastic Flexible PVC Tubing



GRADE:SB-PVC

Working temperature:-30°C~+105°C



STRUCTURE

ROHS Rated 600V 150C Electric Plastic Flexible PVC Tubing is produced with superior and environmentally friendly polyvinyl colloidal particle, after drying, extruded to tubing when heated up and liquated, then packing in rolls after cooling.



USAGE

ROHS Rated 600V 150C Electric Plastic Flexible PVC Tubing With the excellent flexibility, mechanical and dielectric capability, flame resistance performance, ROHS Rated 600V 150C Electric Plastic Flexible PVC Tubing is widely used in outside insulation protection of outgoing wires of electrical appliances, transformers, electrical motors or lighting equipment, and electronic components, wire harness and etc.



SPECIFICATION

Item		Unit	Test Method	Numerical Value
				SB-300	SB-600
Voltage rating		V		300	600
Temperature rating		°C	UL224	105
Voltage resistance	Before aging		UL224  23°C	2500V/60sec
	After aging		UL224  136°C 168hr	2500V/60sec
Volume resistivity		Ωcm	UL224	≥1010
Tensile strength	Before aging	Mpa	UL224  23°C	≥10.4
	After aging	Mpa	UL224  136°C 168hr	≥7.3
Elongation	Before aging	%	UL224  23°C	≥100%
	After aging	%	UL224  136°C 168hr	≥100%
Flexibility			UL224  136°C 168hr	No cracking
Heat shock			UL224  180°C 4hr	No cracking
Cold bend			UL224 -30°C 1hr	No cracking
Copper stability			UL224  136°C 168hr	No corrosion
Flame resistance			UL224	VW-1















































DIMENSION



















1) 0.5~3.0mm-500m/r; 5rolls in one carton; Carton size: 35*35*60CM

2) 3.5~10mm-200m/r; 5rolls in one carton; Carton size: 35*35*60CM

3) 11~20mm-100m/r;  5rolls in one carton;  Carton size: 35*35*60CM

4) 21~30mm-50m/r,    5rolls in one carton;  Carton size: 35*35*60CM



1) 3~5 quick time production;

2) 2 years quality guarantee;

3) Prompt feedback;

4) 24 hours on line service.



1) ISO 9001:2008 approved;

2) 10 years exporting experience;

3) 15 years manufacturing experience;

4) Other products certificates: UL E360625 for heat shrink tube, silicone rubber tube and PTFE tube; E333178 and E333177 for silicone fiberglass sleeve; ROHS, REACH, CQC.



1. What is the MOQ?

    1000 meters.

2. What is the payment terms?

    T/T 100% in advance.



CERTIFICATION



Why Sunbow

1. Sunbow is a leading manufacture of insulation sleeves in China.

2. Quality is the top 3 in the insulation sleeve industry in China, but price is only in the little above middle level.

3. Sunbow owned more than 21 potent, other small factory does not have.

4. Sunbow invest 20% of annual sales turover on the R&D.

5. Sunbow is located in Shenzhen, which is a manufacture and trade city.

6. All our products are UL, Rohs and Reach certificated.

7. Good service, Inquiry can be replied in 2 hours, including the holiday.

8. Good after sales service, we can give the solution in two days for complaint.

9. Fast delivery time, the normal sleeve 1.0-6.0mm are almost in the stock, we can ship in 1-2 work days. If not in the stock, the delivery time is 7-10 work days.
