Телефонный кабель 6 ядро модульный плоский голос для передачи данных серый
- Категории: Telephone Cords >>>
- Поставщик: Shenzhen,Lanp,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Name: Telephone Cable 6 Core Modular Flat Voice Data Cable Grey 28 AWG
Product Description
Applications

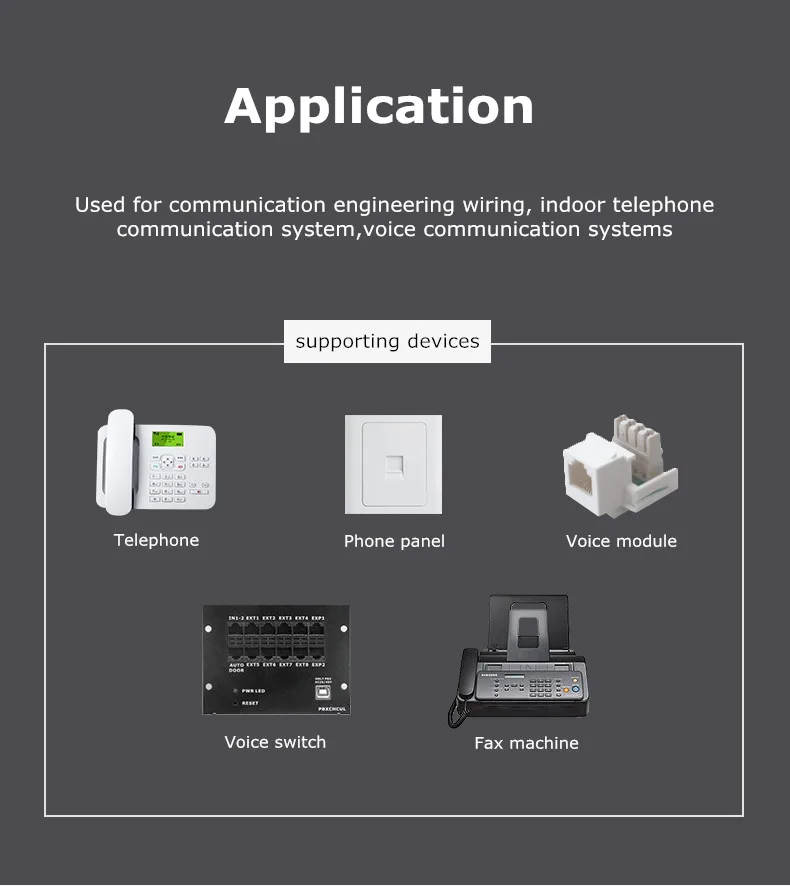

Used as telephone communication, electrical message transfer connecting, telephone receiver or connecting cables
Specification Size and Technical Data

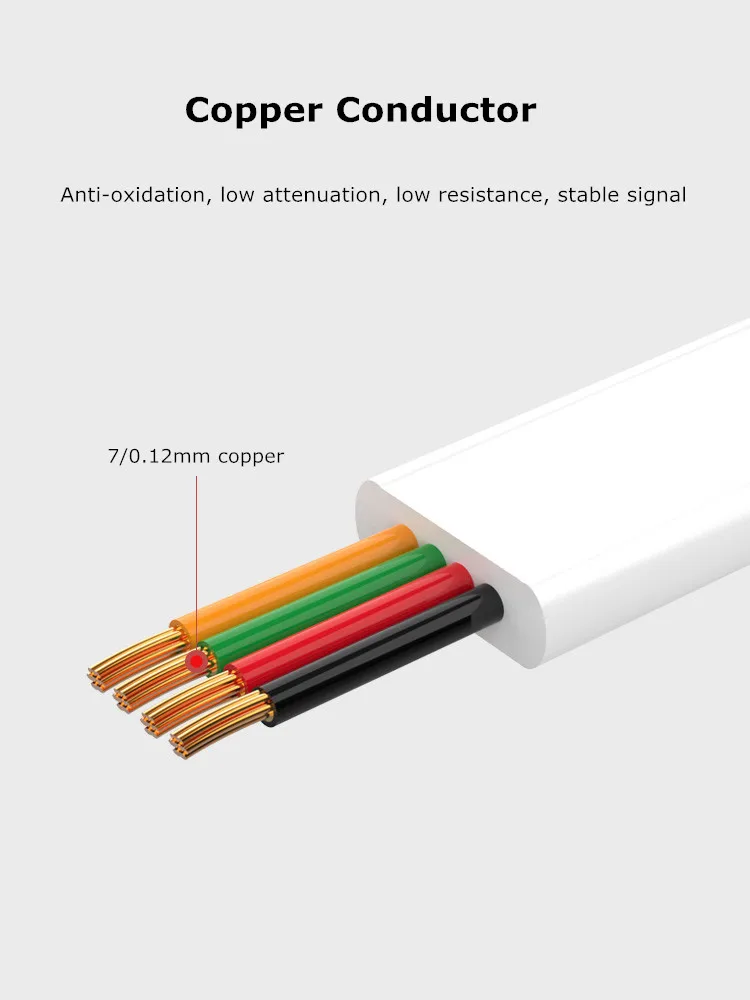

Conductors | Solid or Strands of CU or CCS |
Conductor insulation | Colour coded PVC, flame retardant |
Core colours | The cores are colour coded as follows: |
4 Cores | Red, blue, yellow, black |
6 Cores | Red, blue, yellow, black, white, green |
8 Cores | Red, blue, yellow, black, white, green, orange, brown |
12 Cores | Red, blue, yellow, black, white, green, orange, brown, grey, pink, violet, turquoise |
Screening | Optional. Available with Aluminium foil screen |

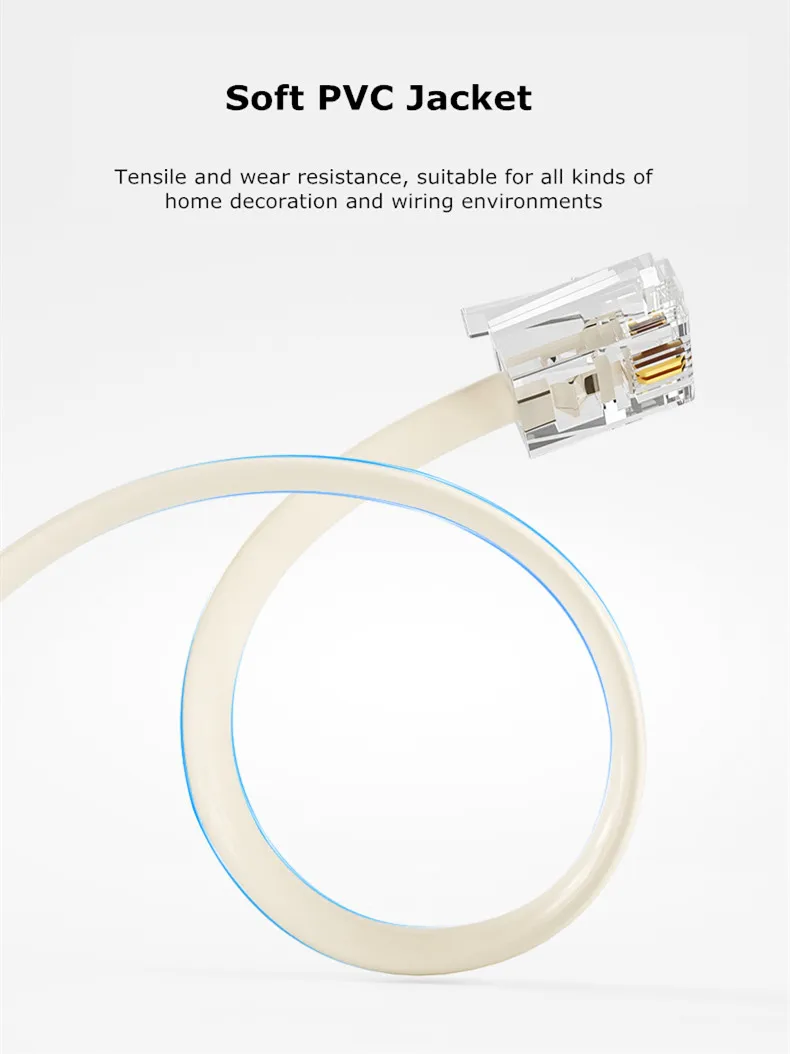

Outer sheath | PVC with nominal radial wall thickness 0.5mm. Colour white. |
ITEM NO | No of Conductor | Structure | O.D |
mm | mm | ||
HR-601A | 2 Core | 2x5/0.10 | 2.0x4.0 |
HR-601B | 4 Core | 4x5/0.10 | 2.2x4.4 |
HR-601C | 6 Core | 6x5/0.10 | 2.5x5.0 |
HR-601D | 8 Core | 8x5/0.10 | 3.0x6.0 |
HR-601E | 10 Core | 10x5/0.10 | 3.5x7.0 |
Model | Specification(mm2) | Insulation OD (mm) | Overall diameter(mm) | Weight(Kg/km) |
TC-01 | 2*7/0.10 | 0.9 | 2.0*4.0 | 10.5 |
TC-02 | 2*7/0.1widen | 0.9 | 2.2*4.5 | 12.9 |
TC-03 | 4*7/0.10 | 0.9 | 2.2*4.5 | 13.1 |
TC-04 | 4*7/0.1widen | 0.9 | 2.4*4.9 | 15.5 |
TC-05 | 6*7/0.10 | 0.9 | 2.2*6.4 | 19.3 |
TC-06 | 6*7/0.1widen | 0.9 | 2.4*6.9 | 22.6 |
TC-07 | 8*7/0.10 | 0.9 | 2.3*8.2 | 26.3 |
TC-08 | 8*7/0.1widen | 0.9 | 2.4*8.9 | 29.7 |
TC-09 | 2*7/0.12 | 0.9 | 2.1*4.1 | 11.6 |
TC-10 | 2*7/0.12widen | 0.9 | 2.3*4.6 | 14.1 |
TC-11 | 4*7/0.12 | 0.9 | 2.3*4.6 | 14.7 |
TC-12 | 4*7/0.12widen | 0.9 | 2.5*5.0 | 17.2 |
TC-13 | 6*7/0.12 | 0.9 | 2.3*6.5 | 21.6 |
Package:
1.100m/roll, 200m/roll,300m/roll ,500m/roll. etc.
2. Inner packing: Reel/ Drum, etc.
3. Outer packing: Case/ Carton/ Plastic pallet, etc.
4. OR according to customer's requirements.
2. Inner packing: Reel/ Drum, etc.
3. Outer packing: Case/ Carton/ Plastic pallet, etc.
4. OR according to customer's requirements.
Company Information
LANP Cables Technology Co., Ltd. established in 2003 , is one of the leading communications cables manufacturers. Our products include lan cable cat3, cat5, cat5e, cat6, patch cords, fiber optic patch cords, power cable and other network accessories and computer cables.
Our total manufacturing area covers 8000 square meters, with equipment such as high speed cross product lines, high speed cross supervisor data return online system (Zumbach), and cat6 twisters system machine. Our testing equipment includes Fluke test machine and PNA Network Analyzer machine.
Our products strictly adhere to ISO9001 international standards, which also cover our research and development, services, and management. We have more than 300 employees, among whom 10% are staffed with technical personnel. We have customers in over 16 countries and regions such as America, Europe, Southeast Asia, and Africa. Both OEM and ODM services are available.
We will continue being a people-oriented, faithful supplier offering quality products and excellent service. For more information, please visit our website or contact us directly with your questions or inquiries.
Trade Shows
Hongkong China Gobal Source Electric Fair
