Сельскохозяйственный трактор экскаватор LW-7E с обратной лопатой

Описание и отзывы

Характеристики

Tractor Excavator, Lw-7E backhoe is smart choose



·Application: digging, trenching, material handling and back-filling,ect.

·Advanced Design, excellent performance, low maintenance costs,

·PTO Hydraulic System, Total Machine Control (TMC)





Pls notice the specification below is for standard LW Series 3 point backhoe and LW Series Side Shift backhoe, and it is for reference only. If you want to buy nonstandard backhoe, pls contact us, we Provide customized service for you.

Specifications and engineering desighs are subject to change without notification

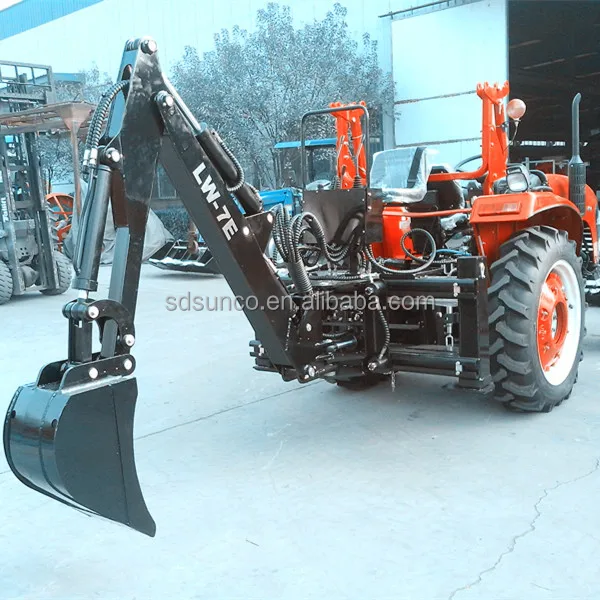

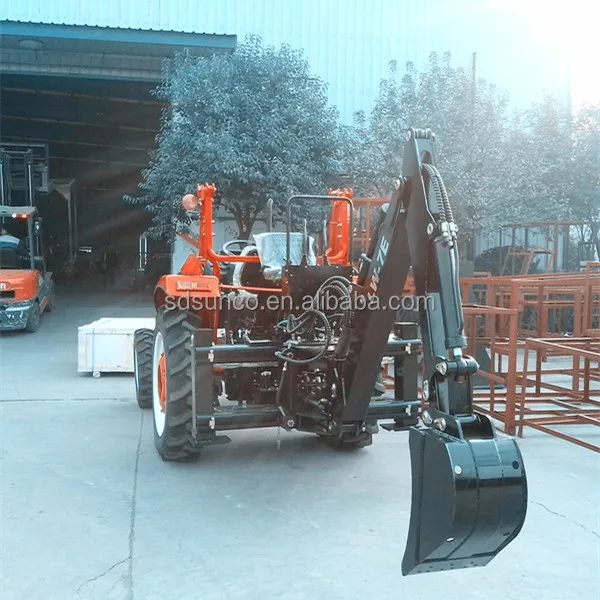

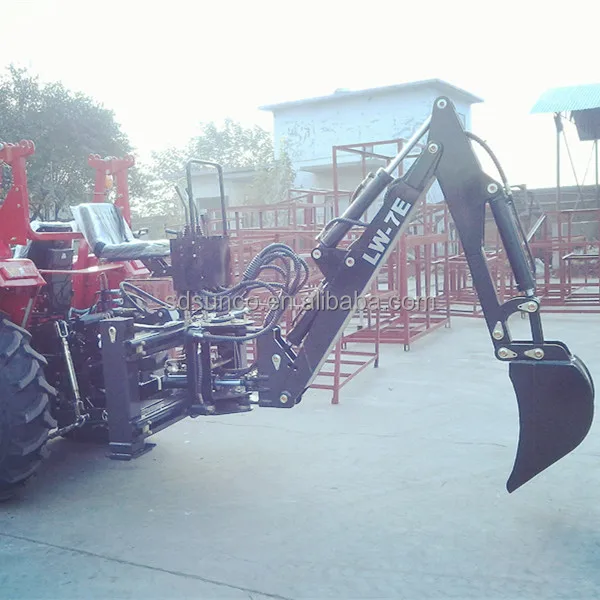

Specification of tractor excavator ,LW-7E Side Shift backhoe



Backhoe Model			LW-5	LW-6	LW-6E	LW-7	LW-7E	LW-8	LW-8E	LW-10	LW-10E	LW-12
Matching Tractor		hp	15~25	20~35		30~55	30~55	50~90		70~120		100~180
Max.Digging Depth	A	mm	1650	2000		2400	2400	2800		3200		3655
Max.Unloading Height	B	mm	1530	1860		2050	2050	2380		2650		3627
Max.Digging Height	C	mm	2600	2970		3210	3210	3460		3770		5040
Working Radius	D	mm	2300	2700		3140	3140	3600		3920		4510
Ground Clearance	E	mm	450	450	450	450	450	500				700
Side Shift Distance	F	mm	0	0	770	0	770	0	1000	0	1200	0
Min.Transporting Width	G	mm	1150	1700	1470	1700	1470	1700	1700	1850	2000	2100
Max.Width of Supporting Legs	H	mm	2100	2200	1470	2200	1470	2200	1700	2300	2000	2550
Bucket Width		in.	14			16	16	18		20		22
Bucket Capacity		m3	0.03	0.03	0.04	0.05	0.05	0.06		0.07		0.13
Weight		kg	360	550	600	560	620	630	700	800	1000	1500
Optional Devieces:
PTO Hydraulic System	6/8/21 Splines(Option)
Thumb Grab	Option



               (LW Series Side Shift Backhoe Loader)

   Secure transportation with arm swing back and shear pins in





 For more detial information of tractor excavator,LW-7E Backhoe,pls feel free to contact Nancy.
