16x4 lcd graphic lcd module industrial control monitor
Specification
Specification
| Module Size | 87.0x60.0x14.5 mm |
| Viewing size | 61.8x25.2 mm |
| Active area | 56.2x20.8 mm |
| Controller IC | NT7070 or Eqv |
| Numbr of Dots | 16 CH x 4 Lines |
| Dot pitch | 0.60x0.60 mm |
| Dot size | 0.55x0.55 mm |

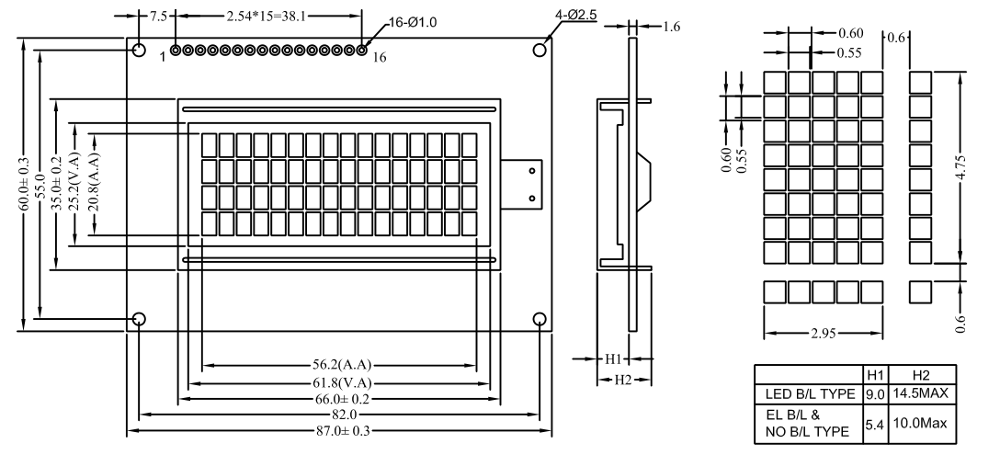

Drawing
Related Products
Character lcd module: 8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc.
Graphic lcd module: 122x32, 128x64, 128x32,192x64, 24064, 240x128, 320x240, etc.
TFT lcd display: 1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5",5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 17",etc.
TN/STN/FSTN/HTN/VA segment customized lcd LED backlight panel
All kinds of LCD Module can customized.
Flow Chart
Company Information
Packaging & Shipping
Packaging&Shipping
Customers can choose their own forwarder
FAQ
How to running the orders with old customers?
Step1.Send your original drawing paper or samples or photos, If you have not these information, tell us your idea.
Step2.According to your details, we give you some advise and good price.
Step3.Negotiate the technical dates after that we will send you the exact quotation
Step4.You arrange the tooling charge payment.
Step5.We make design paper and waiting for your confirmation in two days.
Step6.We make new samples for your testing with in two weeks
Step7.After samples confirmed, we are running the production.
Step8.You arrange the last payment, we sending goods to the ports.
We hope to build a long-term business relationship with you .
If you have any questions or queries, please do not hesitate to contact us. Welcome to inquire any of my other items. We are glad to help you!
Cathy Zhang
