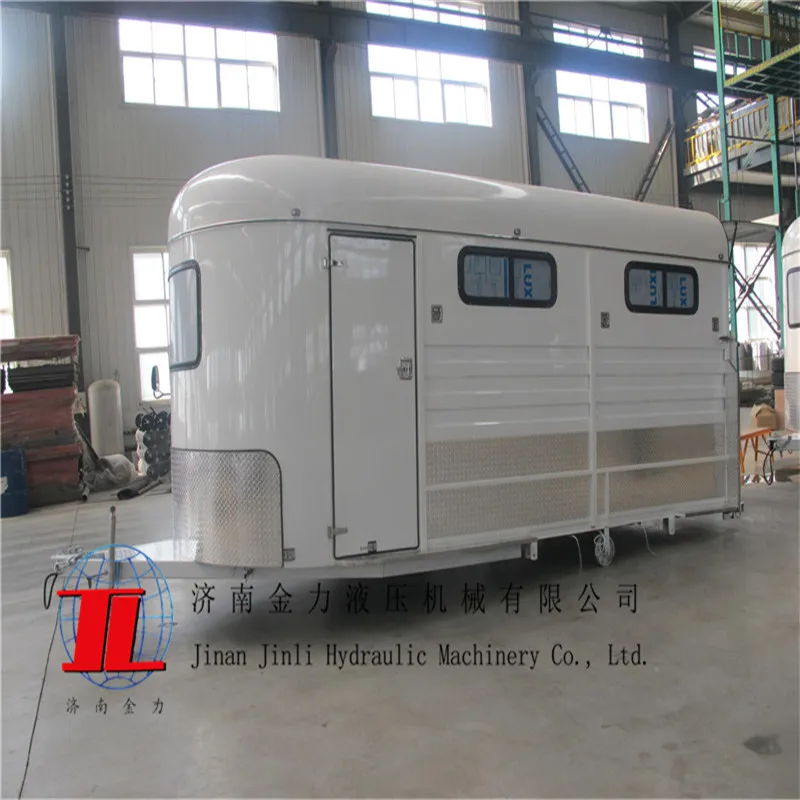

Китайский поплавок для лошадей с роскошным кухонным

MODEL:3HAL- D

1.TRAILER MATERIALS

1.1CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm)

1.2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm)

1.3 BODY PANEL galvanized (1.2mm

1.4 ROOF special molded FRP 5475*1890*450mm

1.5 NUTS & BOLTS stainless steel

2.WHEELS & TYRES

2.1 WHEEL RIM 14' aluminium alloy rims

2.2 TYRES 185R14C

2.3 SPARE WHEEL one

3.AXLES & SUSPENSIONS

3.1 AXLES two special trailer axles

3.2 LEAF SPRINGS roll rocker tandem spring suspension 6 plates

3.3 BRAKE SYSTEM 4 wheel electric brakes with break-away systems

4.WINDOWS & DOORS

4.1 FRONT WINDOW 1220*610

4.2 SIDE WINDOWS 3 pop-up rectangle windows,3 sliding rectangular windows

4.3 VENTS three sash casement vent

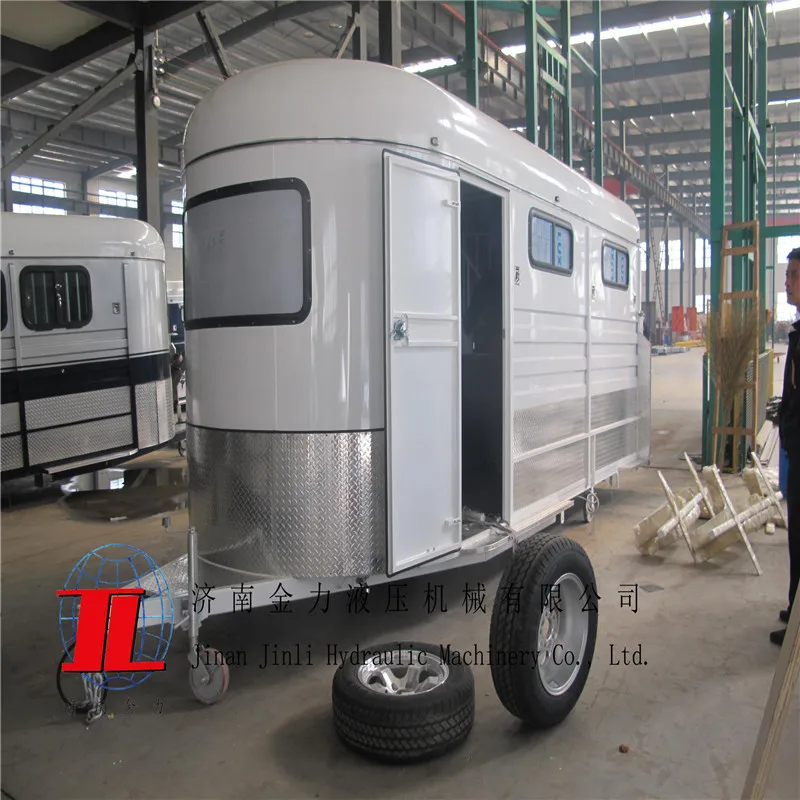

4.4 SIZE OF SIDE DOOR 1755*615

4.5 REAR UPPER DOOR 2020*1065

4.6 RAMP DOOR 2020*1210

4.7 REAR UPPER & RAMP DOOR STRUT high-intensity anti-rust strut

4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges

5.DRAWBAR

5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium

5.2 DRAWBAR SAFETY CHAIN two

5.3 BRACING WHEEL one

6.LIGHTS & RETRO REFLECTORS

6.1 TRAILER PLUGS square 7 wick plug

6.2 SIDE LAMPS 6

6.3 REAR LAMPS LED group

6.4 REAR LAMPS STAND aluminium

6.5 RETRO REFLECTORS 6

7.MUDGUARD

7.1 MUDGUARD TYPE compact mudguard

7.2 MUDGUARD CHECKER PLATE 1.2mm aluminium in the front of mudguard

7.3 PEDAL & ALUMINIUM STEP 1.2mm aluminium decoration board

8.INTERIOR & EXTERIOR

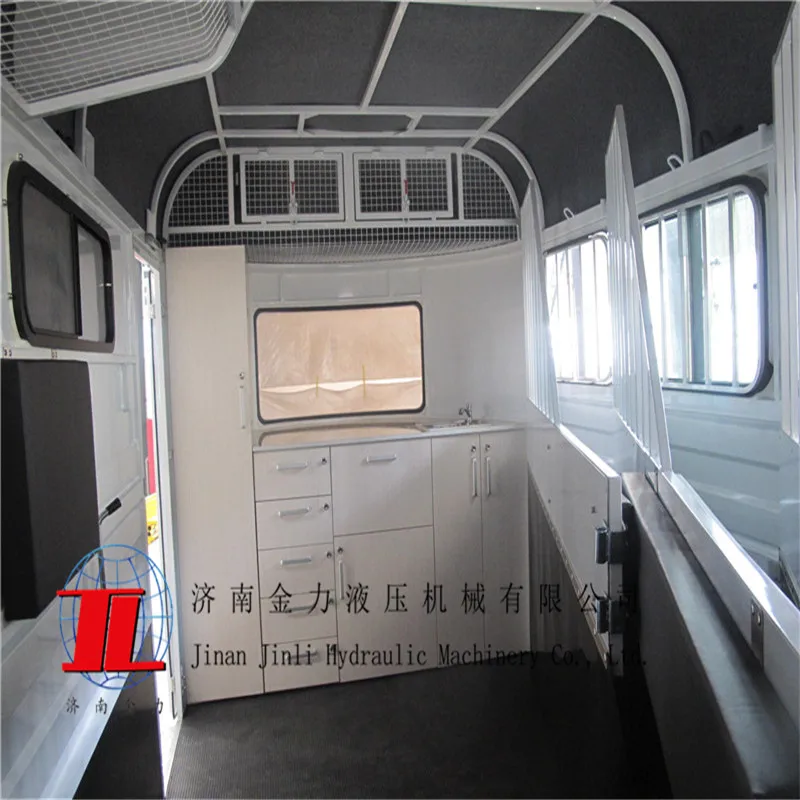

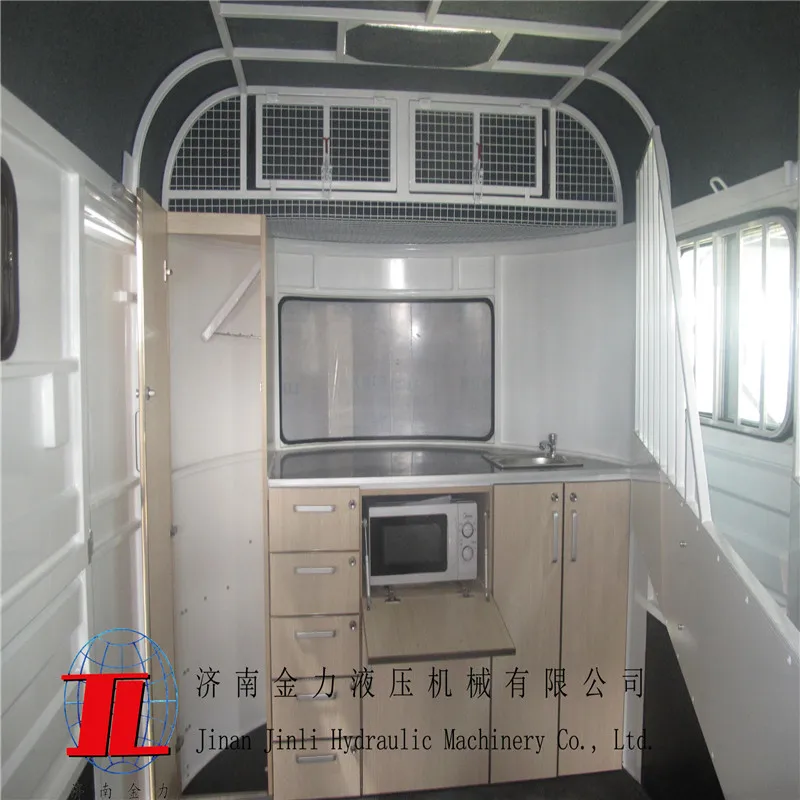

8.1 A KITCHEN with a cupboard and all appliance from yourself

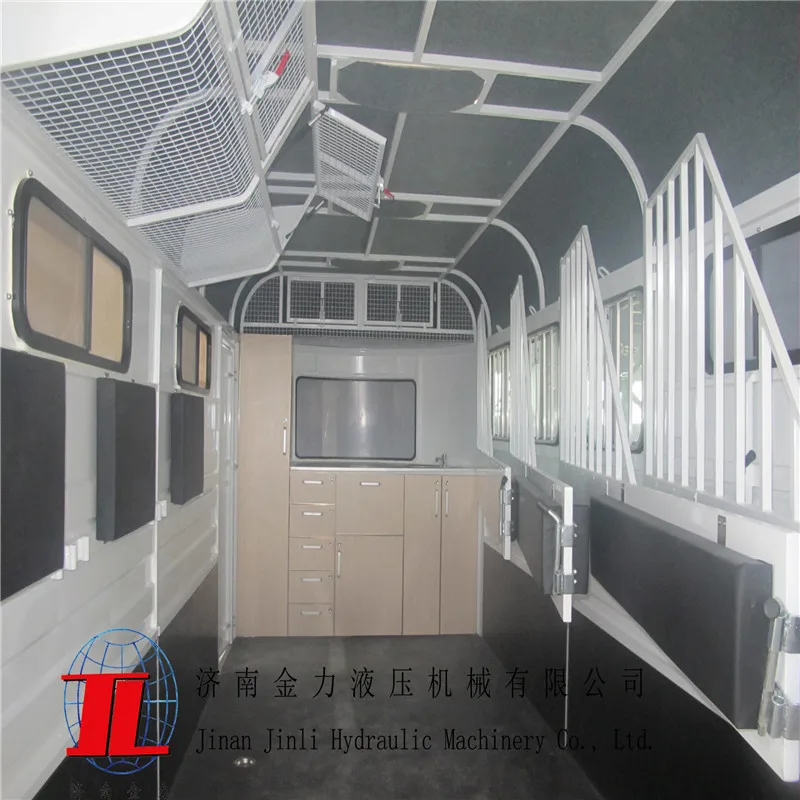

8.2 HORSE PROTECTION FRAME full padded

8.3 HORSE RING six

8.4 RUBBER MATTING FOR RAMP DOOR 10mm rubber matting

8.5 RUBBER MATTING FOR FLOOR 10mm rubber matting

8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting

8.7 WOOD BOARD FOR FLOOR & RAMP DOOR 18mm hardwood plywood

8.8 RUG RACK side

8.9 SADDLE RACK in saddle box

8.10 SADDLE BOX 1500mm height for 3 saddles

8.11 PAINTING single or customized

9.DIMENSIONS

9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 6325*2280*2590

9.2 BODY DIMENSIONS ( L x W x H: mm ) 5475*1980 *2230

9.3 MAXIMUM INTERNAL DEMENSION: 5450*1930*2155
