Point Micrometer for Measuring Drills and Grooves to ISO GB Standard

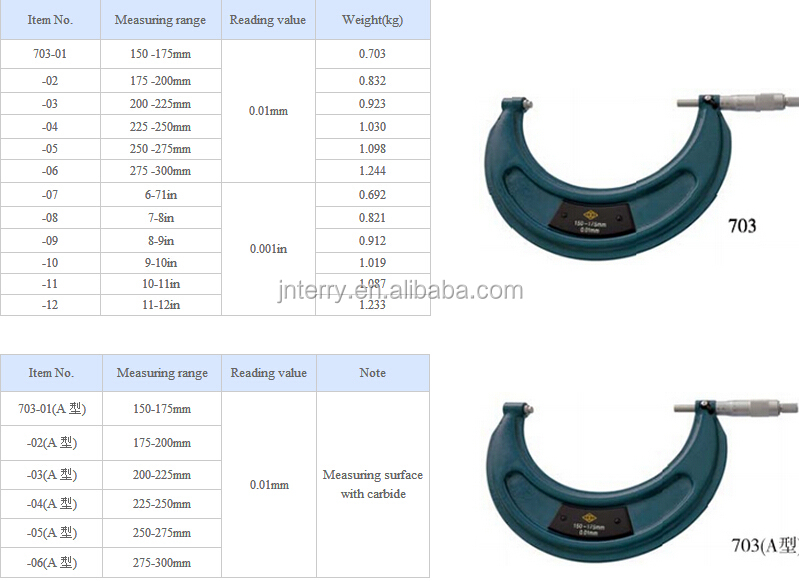

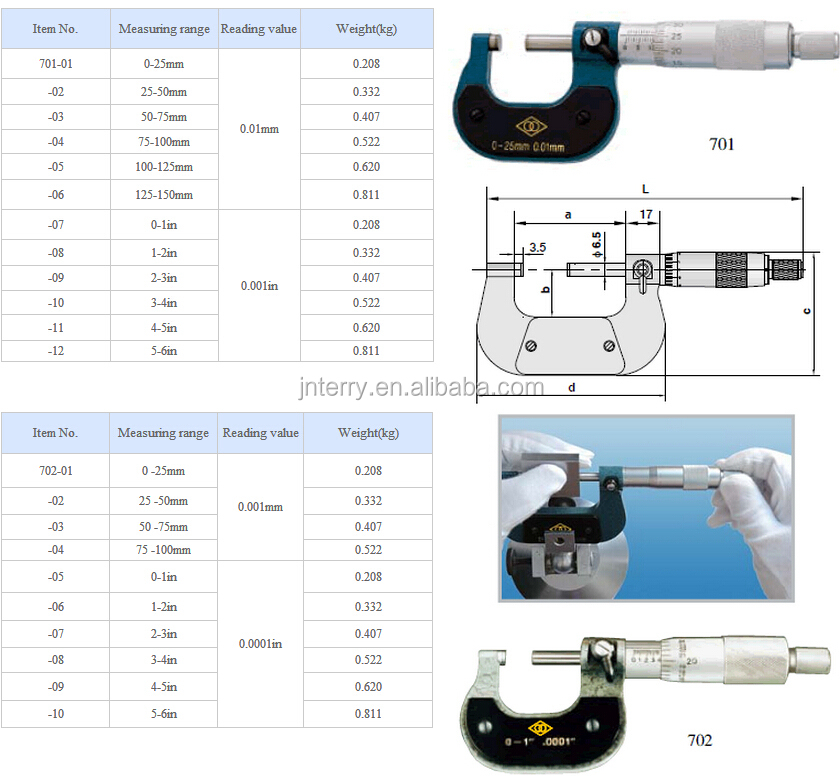

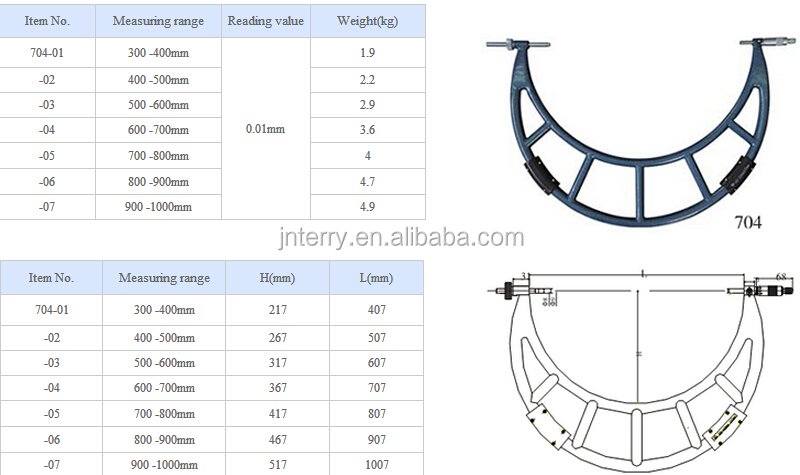

OUTSIDE MICROMETERS 701 702 703 704 705

The outside micrometers are widely used for outside precision measurement.

The main accuracies conform to ISO and GB standards.

(0-1000mm) conforms to GB standard,

(0-3000mm) conforms to JB standard.



OUTSIDE MICROMETERS WITH ROUND PIPE STRUCTURE 731

 FEATURES:

The micrometers are used for the accuracy measurement of the external dimension of large and medium type workpieces.

They have the features as follow:The frame with aluminium alloy for light weight and beautiful configuration,carbide-tipped measuring faces for long service life,comparison measurement for direct and easy readings by indicators. It conforms to JB standard.



MICROMETER HEADS 706

The thread pitch is 0.5mm.The diameter of the measuring face is 6.5mm and 8mm.The holding diameter is 12mm and 13mm. It conforms to GB standard.



THREAD MICROMETERS 711

The thread micrometers have a 60°measuring head.They can be used to measure the diameter of threads. It conforms to GB standard.



GEAR TOOTH MICROMETERS 712

The gear tooth micrometers can be used to measure the gear tooth.They are a universal measuring tool. It conforms to GB standard.



DEPTH MICROMETERS 713

The depth micrometers are widely used to measure depth and step in machining. It conforms to Q/HLR standard of the enterprise.



TUBE MICROMETERS 719

The fixed anvil of the tube micrometers has spherical surface. They are suitable for measuring the thickness of tubes. It conforms to GB standard.



LENGTH MICROMETER

Length Micrometer is suitable for narrow area length and its thickness measurement, measurement range (150-300) mm, conform to GB standard.Measuring range (0-150) mm and other specifications can be according to the contract production order.



Micrometers with Deeply Incurved Frame 724

The micrometers with deeply incurved frame are used for measuring the thickness of plates and plate-like materials,and two types of the micrometers are available:dial type and micrometer head type.

The depth of the incurved frame for the dial type is 40mm,which conform to JB standard,and that for the micrometer type is 200mm,which conform to Q/HLR standard of enterprise.

The technical specifications conform to JB standard.



INDICATING MICROMETERS 725

The indicating micrometers are used for outside precise measurements. Thier technical specifications conform to GB standard.



LIMIT MICROMETERS 726

The limit micrometer is equivalent to a snap gauge with adjustable nominal dimension.It is a precision measuring tool used for determining whether the dimension of a shaft piece is up to standard.The range of measurement is 0-25mm. Their specifications conform to Q/HLR standard of enterprise.



OUTSIDE MICROMETERS WITH ELECTRONIC DISPLAY 727



FEATURES:

Protection class IP54.

Display the original data of the absolute measurement after swich on.

Hard metal measuring surfaces,painted frame.

One SR44 battery,power consumption<35μA,auto power off.



FUNCTIONS:

Power switch;

Original data set;

mm/inch conversion;

Absolute and relative measurement conversion;

RS232 output interface;

Low battery alarm.



POINT MICROMETERS 728

Pointed spindle and anvil for measuring drills,grooves and other hard-to-reach dimensions. It conforms to GB standard.



SMALL MEASURING FACES MICROMETERS 729

FEATURES:

Small measuring faces for measuring splined shafts,slots and keyways.

Carbide measuring faces. Painted frame.

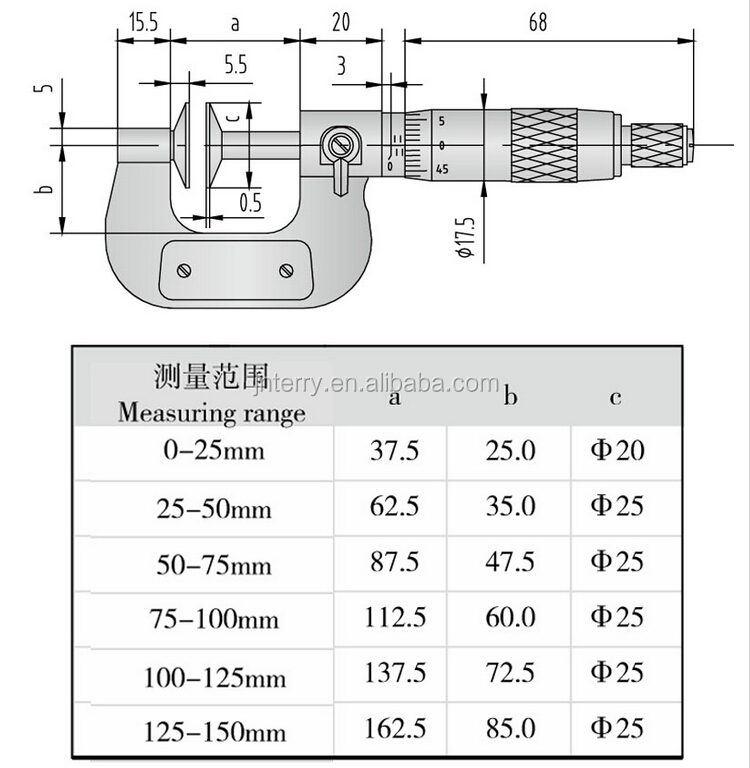

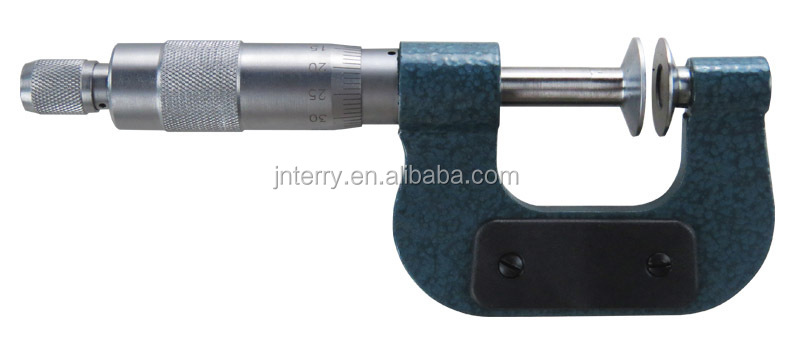

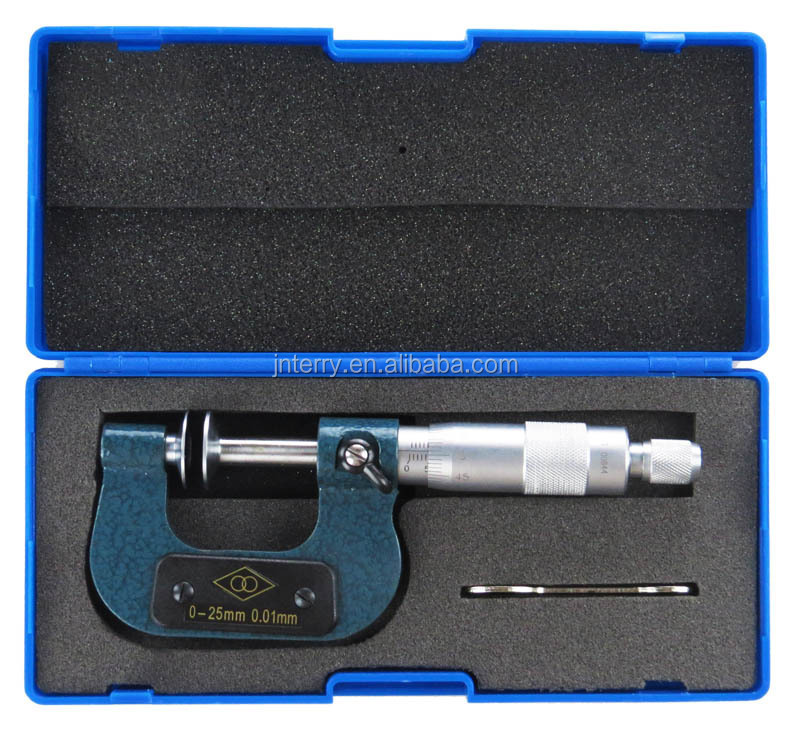

MICROMETERS WITH LARGE MEASURING FACES ON FIX ANVILS 730

Micrometers with large measuring faces on fix anvils for measuring the dimensions such as the external diameters of worms and the widths of milling cutters,etc. They can be manufactured according to the enterprise standards Q/ALR or contract orders.



Please see the technical datas as the following picture:
