Product Description
JST XH Series 2.5mm Pitch Wire to Board crimp terminal style with low contact resistance.
Scondar is over 16 year experience engaging in custom wire harness according to customer design specification to be applicable to the almost any devices, equipment and instrument with high quality and reasonable price for total solution to meet customer demand.
Scondar is over 16 year experience engaging in custom wire harness according to customer design specification to be applicable to the almost any devices, equipment and instrument with high quality and reasonable price for total solution to meet customer demand.

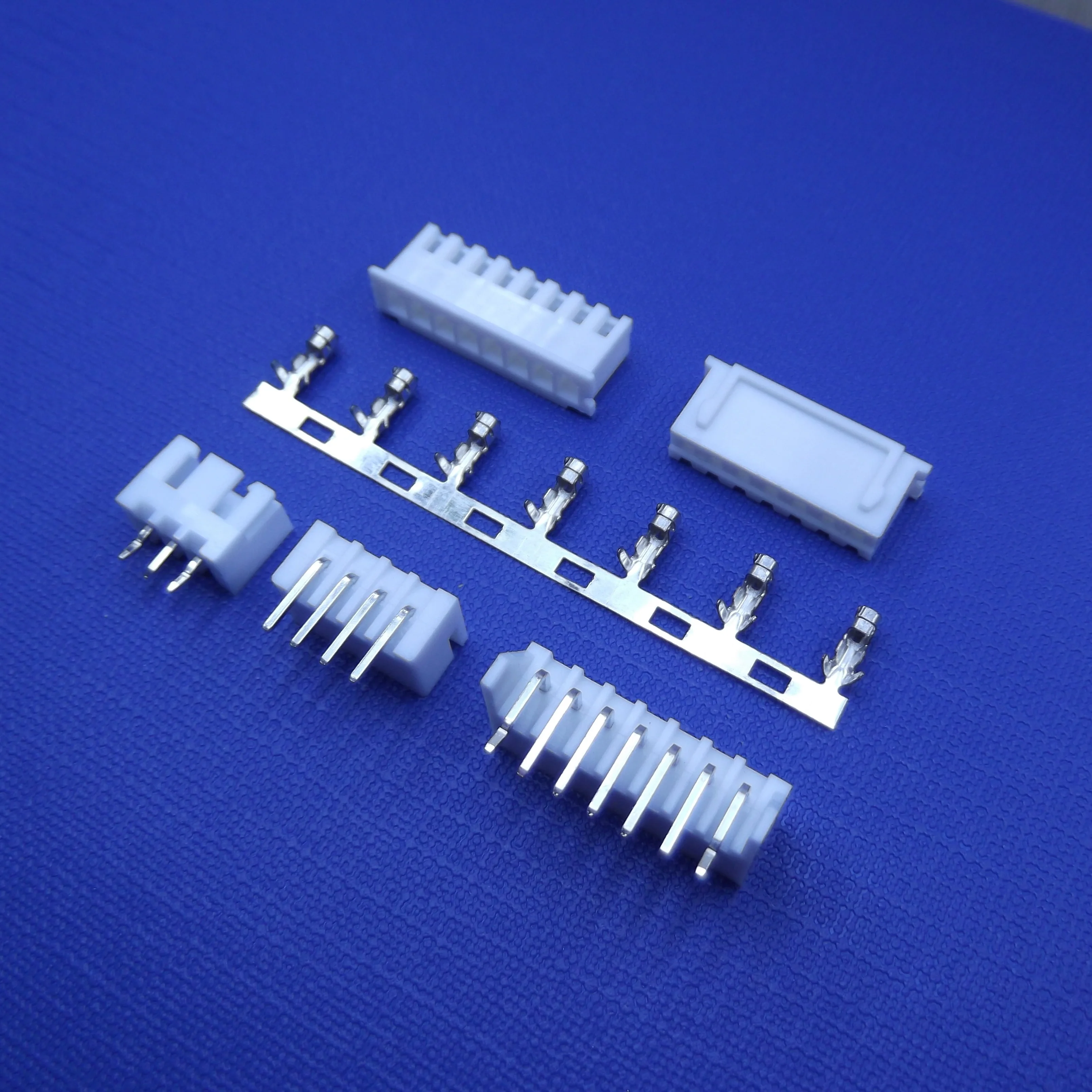

JST XH 2.5mm Pitch Connector
SCT2501 Series are replaced by JST XH connector. 2.5mm pitch, wire to board crimp terminal style with low contact resistance.
Compatible: JST XH Connector
Pitch: 2.5mm
Poles: 2-16P
Current rating: 3A (AWG#26-#30)
Items | Specifications |
Part Number: | SCT2501 |
Compatible: | JST XH Connector |
Pitch - Mating Interface: | 2.5mm |
Circuits: | 2-16P |
Applicable wire: | AWG#22-#28 (Max.OD:1.5mm) |
Current Rating: | 3A |
Voltage Rating: | 250V |
Temperature Range: | -25°C~+85°C |
Contact Resistance: | 20m Omega Max |
Insulation Resistance: | 1000M Omega Min |
Withstanding Voltage: | 1000V AC/minute |
Wire & Cable Assemblies: | Customized |

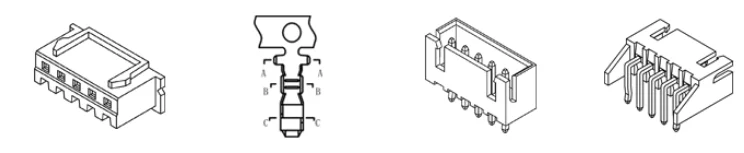

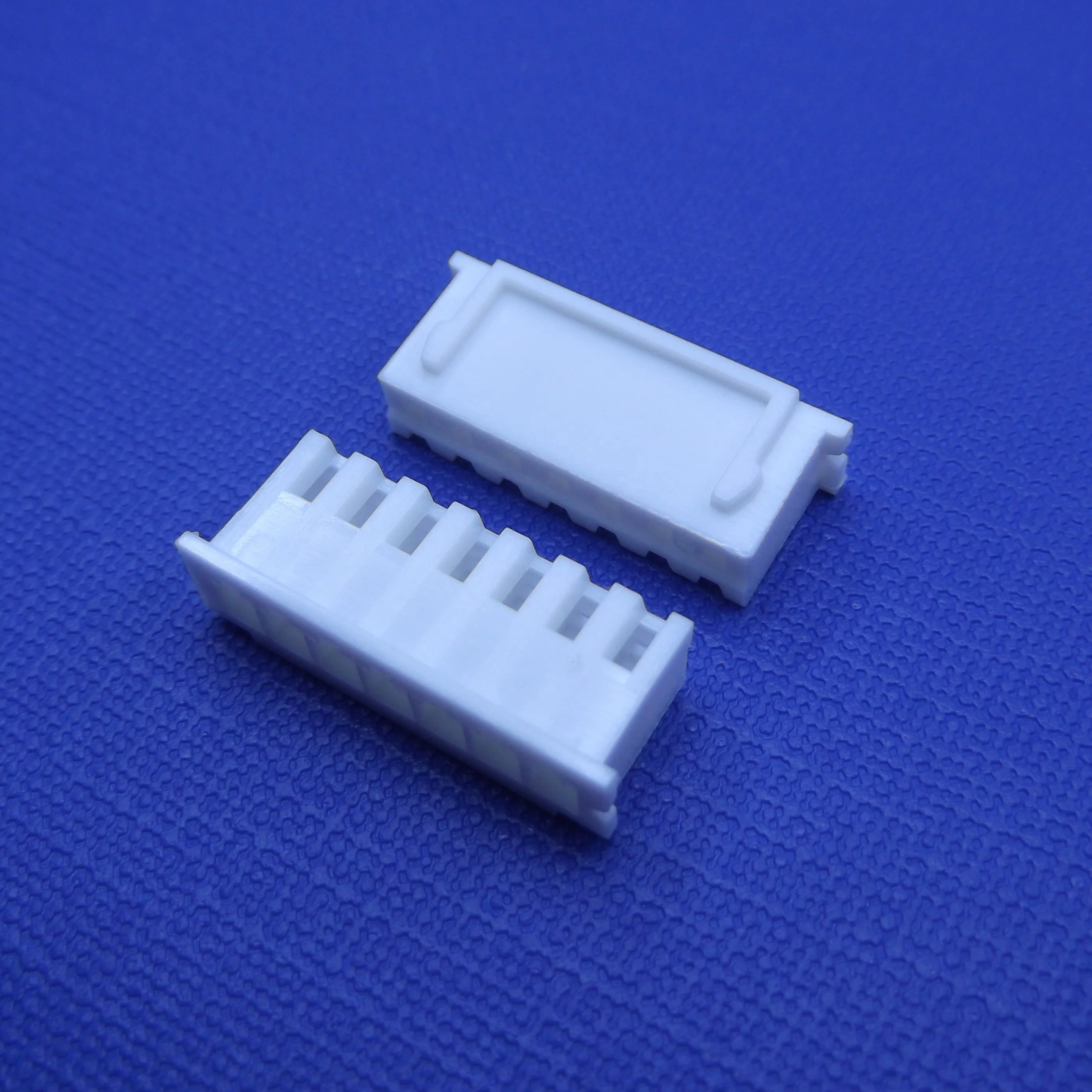

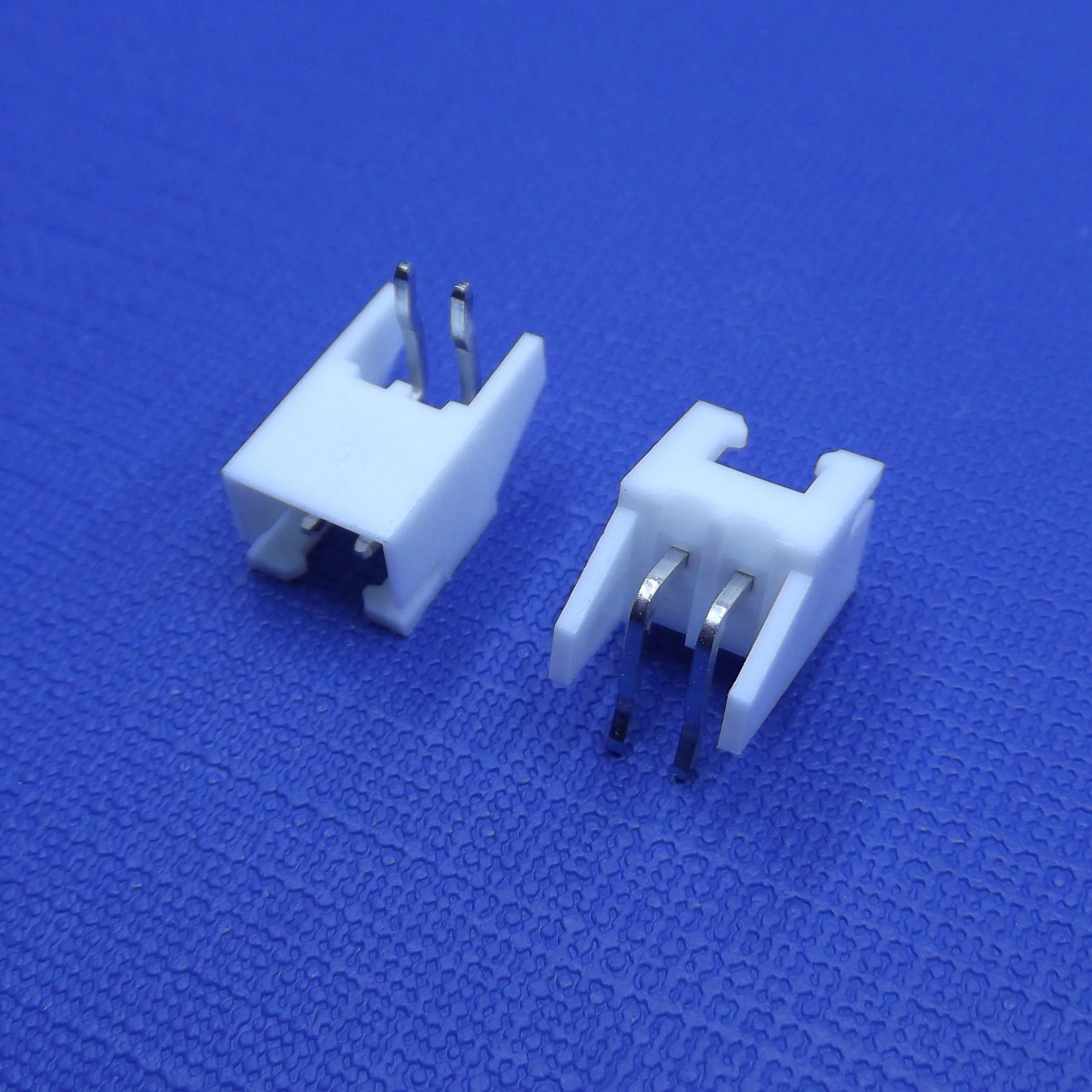

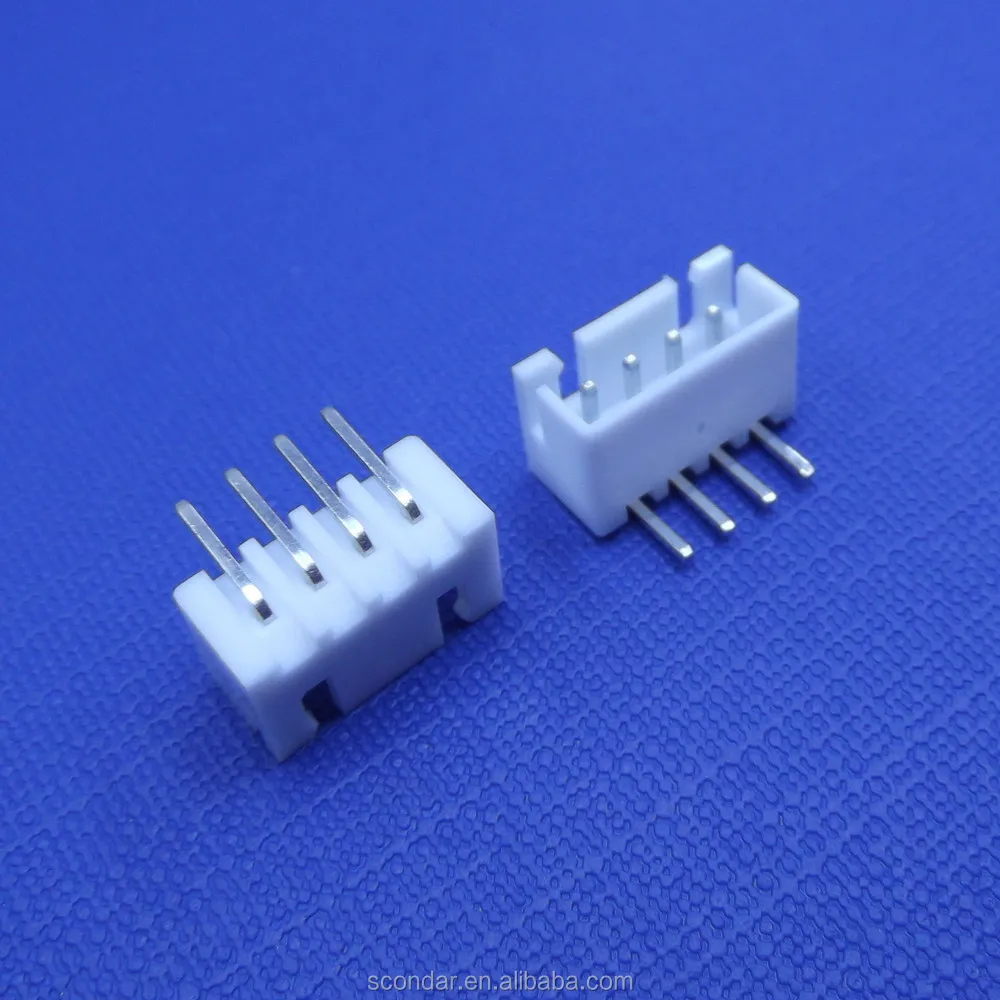

2.5mm crimp housing | 2.5mm crimp terminal | 2.5mm vertical header | 2.5mm right-angle header |
Compatible: JST XH series | Compatible: JST XH series | Compatible: JST XH series | Compatible: JST XH series |
Circuits: 2-16P | Circuits: 2-16P | Circuits: 2-16P | Circuits: 2-16P |
