                                               High quality Solid state relay





Current: 0.5-400A



Voltage: 24-440V



All models feature the same compact dimensions to prolide a



uniform mounting pitch



Built-in MOV effectively absorbs extermal surges



Operation indicaor (red LED) enables monitoring operation



Protective cover for greater saftey



Conform to IEC international electrical committee standard



DC and AC, AC and AC, DC and DC, AC and DC input versions available







Typical Applications



Universal switch and thermal control



Industrial automatic control



Numerial-controlled machinery,



remote-control system







  3 phase solid state relay



Rated Load	Control	Open	Turn-off	Load	Voltage	Off-state	dv/dt	Turn-on or off	Frequenty	Insulation	Tj	Outline
current	voltage	current	voltage	voltage	drop	leakage		time	range	voltage
A	V	mA	V	V	V	mA	V/μs	ms	Hz	V	°C
10	4~32	8-25	1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500	-30 °C ~ +80°C	SSR6
25	4~32	8-25	1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500
40	4~32	8-25	1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500
60	4~32	8-25	1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500
75	4~32	8-25	1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500
80	4~32	8-25	1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500
90	4~32	8-25	1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500
100	4~32	8-25	1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500

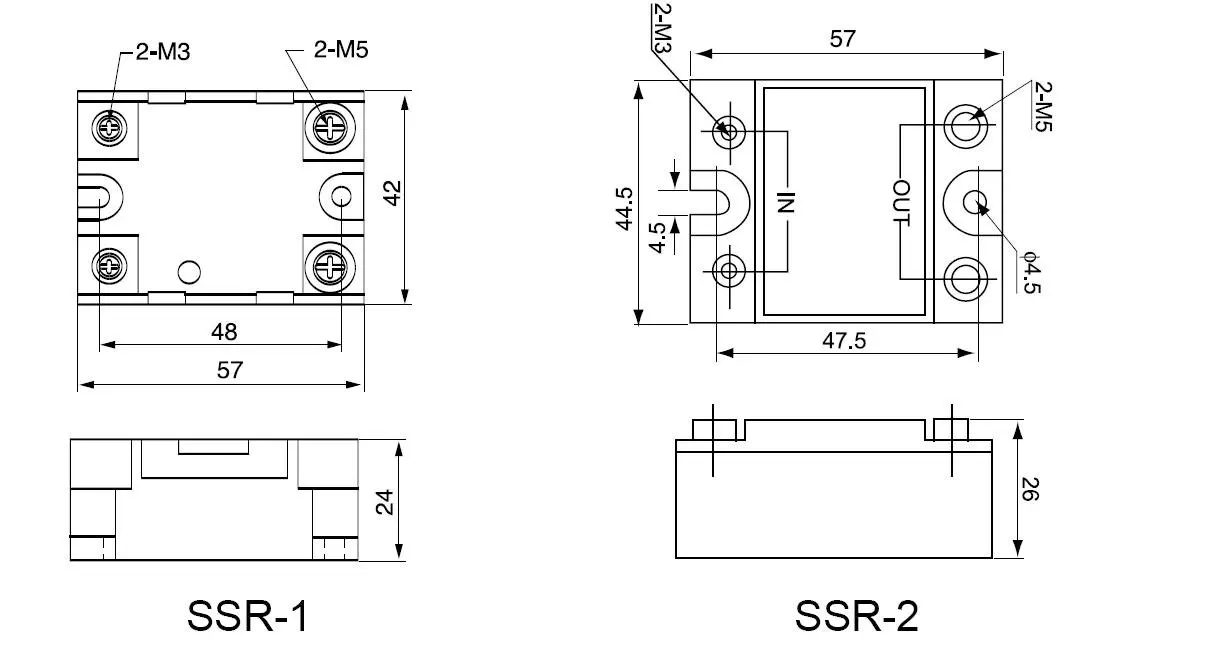

OUTLINE

3 phase solid state relay



PRODUCT PHOTO









  3 phase solid state relay

Single Phase Three Phase Rectifier Bridge Diode KBPC3510

 3 phase solid state relay



OFFICE

  3 phase solid state relay



3 phase solid state relay





  3 phase solid state relay



1. Q: Doe Liujing produce power semiconductor or only trading? A:Liujing has own factory, can control the production and quality directly.



2. Q: How does Lujing control the product quality? A: 100% of the products will be tested . Firstly we will test chip parameters . After the chip encapsulation . we test 100% of the thyristors again. Each chip and thyristor should pass all these QC procedures before shipping to customer.And we will deliver goods with all testing parameters wrriten in the paper.



3. Q: Could Liujing provide technology support? A: Liujing is specialized in manufacturing power semiconductor. If there's any problem,we'll provide suggestion from our engineer to help you to solve problem.



4. Q: Which field can Liujing power semiconductor be used on?

A:Liujing power semiconductor can be used on Locomotives, industrial transmission, motor soft start, high voltage dc transmission, high voltage reactive power compensation, the motor excitation, induction heating...
