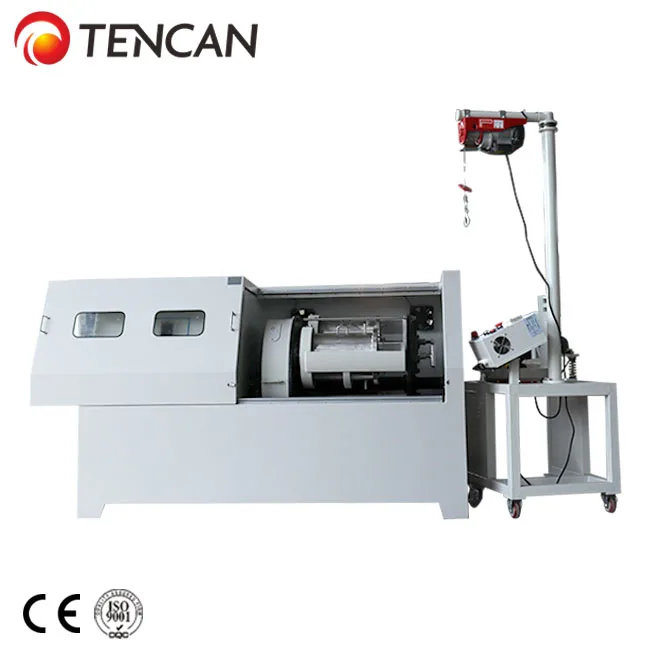

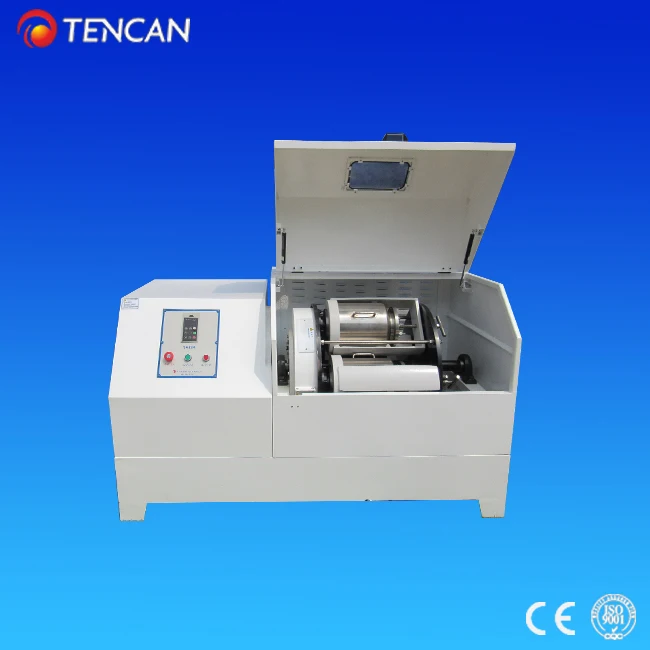

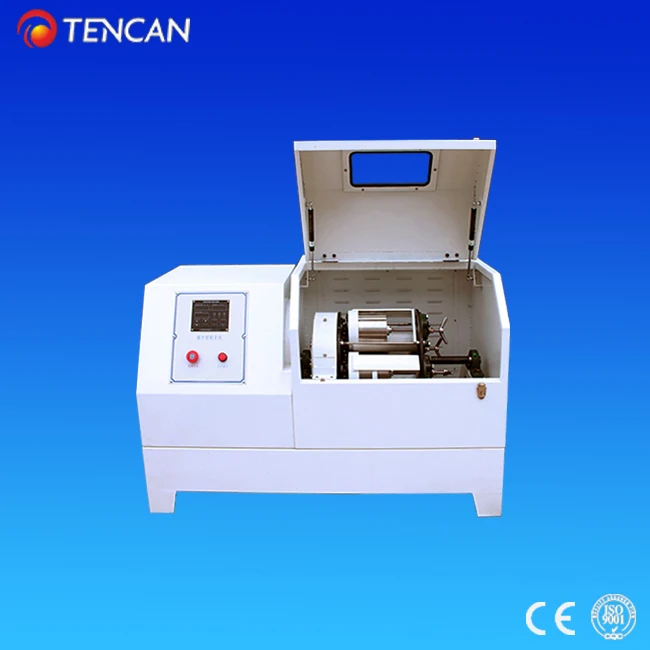

Horizontal planetary ball mill description:



Large horizonta planetar ball mill is adopted with the bracket strucure supported by both ends of double plates.Stability and anti load capacity of the machine are improved much efficiently.Large horizonta planetary ball mill is mainly used for medium or small prouduction of grinding.









Advantages of Tencan Planetary ball mill:



1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of undervoltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, selftiming forward and reversal rotating. You may choose freely any operation modes of oneway direction, alternation, succession, timing and un-timing according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

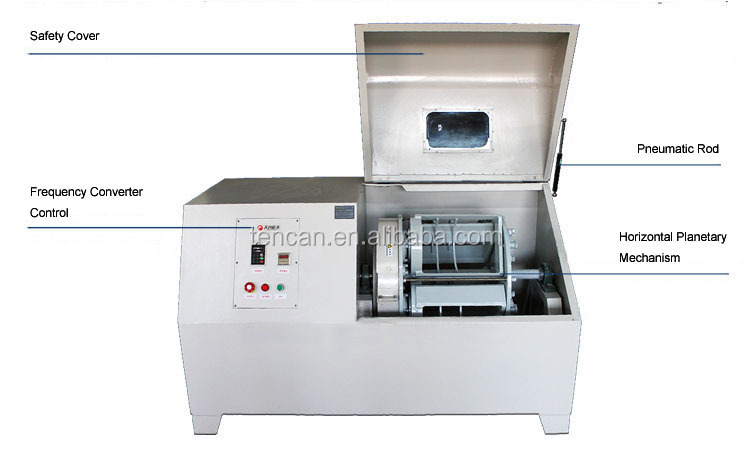

7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.





Type No.	Dimension(mm)	Max Rotation Speed(rpm)	Power(kw)
WXQM-0.4	560*470*730	670	0.75
WXQM-1	560*470*730	670	0.75
WXQM-2	560*470*730	670	0.75
WXQM-4	560*470*730	670	0.75
WXQM-6	1050*730*810	670	0.75
WXQM-8	1050*570*700	580	1.5
WXQM-10	1050*570*700	580	1.5
WXQM-12	1050*570*700	580	1.5
WXQM-16	1260*640*780	480	3
WXQM-20	1500*700*850	430	4
WXQM-40	1500*770*900	430	5.5
WXQM-60	1530*900*1020	420	7.5
WXQM-80	1750*990*1130	420	11

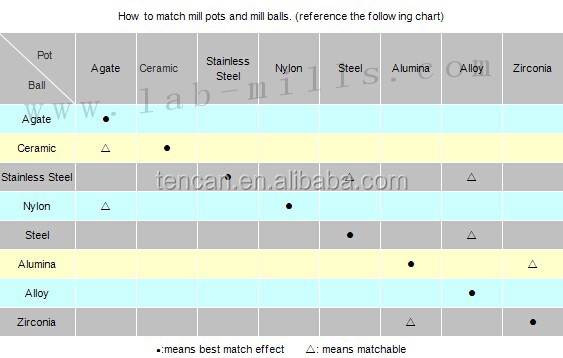

Planetary Ball Mill Accessories - Mill Pots and Mill Balls

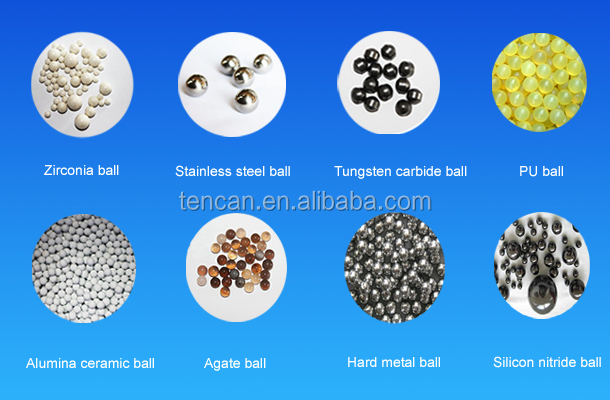

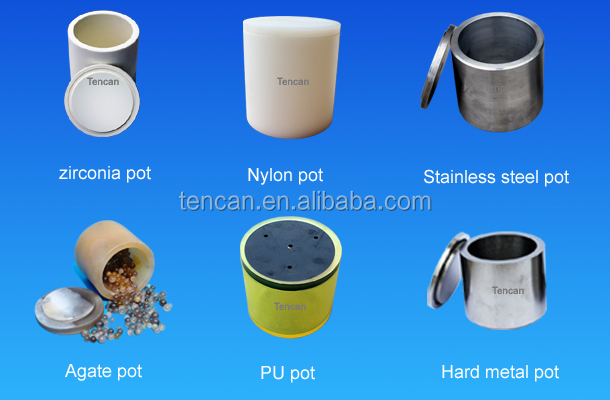

Besides the planetary ball mill machine, our factory provides all kinds of mill pots stainless steel pot, zirconia pot, alumina pot, nylon pot, PU pot, tungsten pot, hard metal pot, tempered nylon pot etc. Further, we also provide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.









TENCAN Certificates:











TENCAN Product Quality Warranty:
One-year warranty period shall be provided to any client who buys our products and related accessories. The following promises are valid within the warranty period which is calculated from time or date when the client or consumer takes delivery of machine, opens case, inspects machine and receives with signature. We promise to guarantee free replacement within one month, and guarantee free repair within one year.
Client may enjoy free replacement within one month if any of following occurs:
1) The machine is broken in course of transportation;
2) Motor and frequency converter are burnt out;
3) The key part or main disk of the machine is seriously in failure.

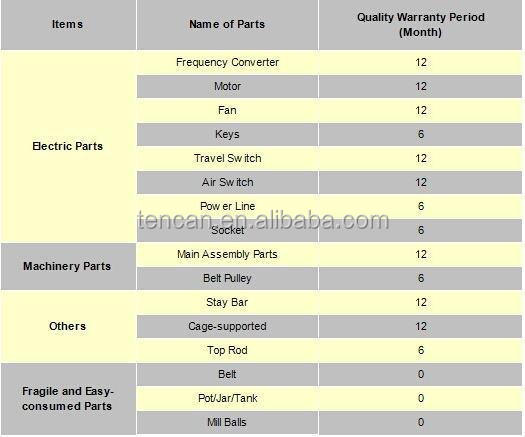

Table of Quality Warranty Period for Different Parts of Machine:









We shall promise to provide most favorable policy and best services after expiration of quality warranty period.



After-sale Services Promises:
1) We shall make prompt response to any problem about the machine within 24 hours if you have.
2) We shall provide 6-day 8-hour services for all our clients and subscribers, and shall provide trouble-shooting solutions until the fault is completely eliminated.
3) If the machine is found any fault or problem, please do not hesitate to notify us the details about faults, caused reasons and status. We shall do our great efforts to solve according to following terms:
a. Common faults:
  Common faults refer to failure of non critical parts or improper configuration that effects partial operation or leads to Inconvenience of machine operation. We shall solve such problems by email or posting parts by courier.
b. Serious faults:
  Serious faults refer to failure of key parts or improper configuration that influence running or operating of machine widely. We shall firstly diagnose reasons of faults by email or phone, then, shall send replacement of parts by courier, until solve the problems. Courier freight shall be for our account within quality warranty period.
Exception Clauses
Quality warranty service shall be exception and shall not be enjoyed if any of following occurs:
1) Faults and damages of machine which are caused by human factors or working under abnormal working environment.
2) Clients take liberty to disassembly, or repair, or refit the machine without factory’s agreement.
3) Damages of machine caused by bad transportation.
4) Damages caused by other force majeure factors such as fire, thunder strike, earthquake, abnormal voltage.
5) Normal old use, normal abrasion, break and infection.
