5K Ом прозрачный мексиканский потенциометр дроссельной заслонки микродатчик


Поделиться:

Цена:50,00 $ - 55,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики






Product Description

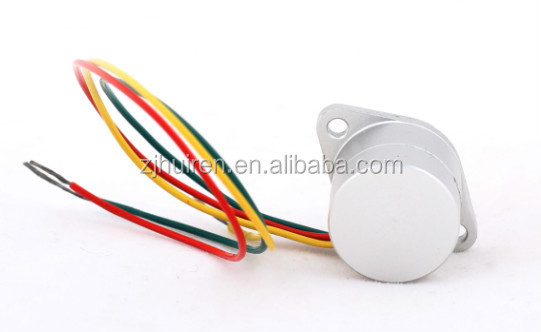

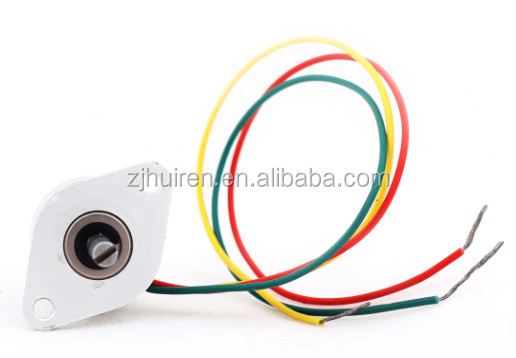

The potentiometer adopts a hard antirust aluminum case and molded integrated conductive plastic base. Imported precious metal brush and current collecting parts, stainless steel shaft with high-speed bearing ensure high linearity, long mechanical life, high resolution, less dynamic noise and convenient and reliable installation.










Potentiometer specifications


























































































Electrical:



Nomianl Resistance5KΩ
Resistance Tolerance±15%
Independent Linear degrees0.5%
Theory electrical corner 300°±2°
Power Rating2W ( @70°C )
Resist. Temperature Coefficient Of Wire  ±400 P.P.M/°C
Insulation Resistance≥1000MΩat 500V.D.C
Dielectric Strength1 minute at 1000V(AC.RMS)
Output Smoothness≤±0.10%
Mechanical:
Mechanical Travel360°(Endless)
Starting Torque (MAX.)≤10x10-4N.M
Bearing2 Pairs Ball Bearing
ShaftStainless Steel
Housing CaseAluminum alloy
Environmental:
Life ExpectancyApprox. 50,000,000(Shaft Revolutions)
Operating Temperature-55°C~ +125°C
Vibration15G 2000Hz
Shock50G 11ms

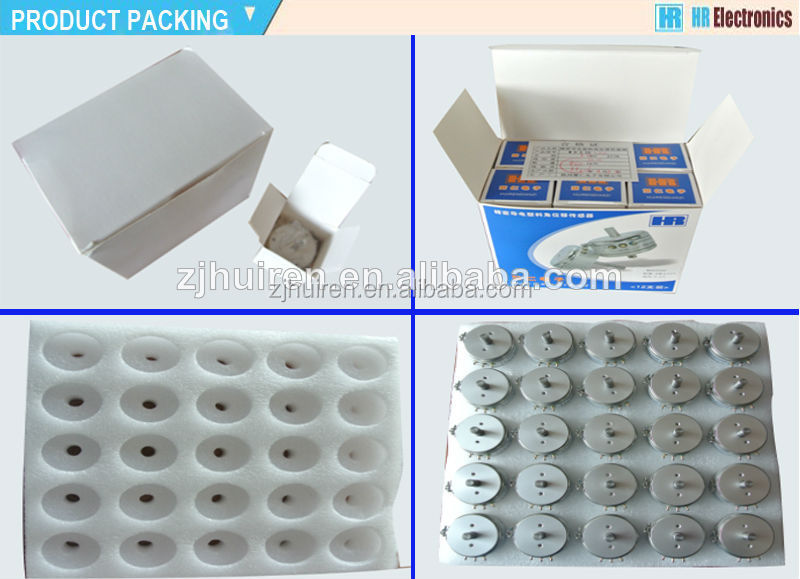

Packaging & Shipping





.jpg







Company Information





Zhejiang HuiRen Electronic Limited Company is located in the center of the city Huzhou (Zhejiang, China) which is known as the pearl of South Taihu Lake. HuZhou has a facilitated transportation, with a number of National Roads, highways, railways, and waterways running across the city, it is conveniently connected to Shanghai, Hangzhou, Wuxi and Suzhou.


Our company is specialized in sophisticated electric eonducted plastic products such as precision angular-displacement sensors, precision linear displacement sensors and precision conductive plastic potentiometers. The products are widely used in the field of automation control and servo, such as military affairs, aviation, automobile, oil industries, machinery and mediacal instruments and so on.


Our company focuses on management in all aspects, adhering to the principle of satisfying customers and faithfully serving all customers.


We will provide you with our best products and services. Welcome!
