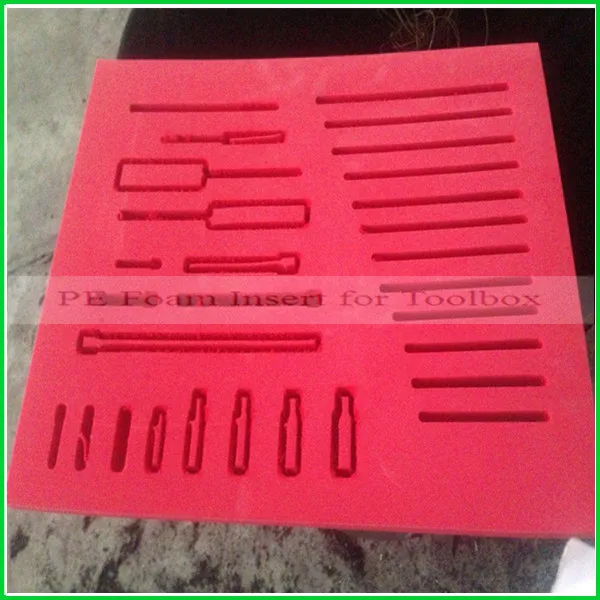

Foam type PE material custom CNC Milling PE Foam insert for tool box lining
Product Name: PE Foam Insert
Foam density: 45kg/m3, 40kg/m3,
Shape: Customized shape
Color: Black, white, grey. other color available
Thickness: different thickness available.
Material technical date sheet:
Properties | Unit | L-2000 | Test Method |
Density | KG/M3 | 37±5 | GB/T6343-2008 |
Hardness | Shore C | 30-38 | —— |
Elongation Ratio | % | 100 Min | GB/T6344-2008 |
Compression Set | % | 10 Max | GB/T6669-2008 |
Linear Shrinkage | % | ±5 | GB/T8811-2008 |
Tensile Strength | kPa | 170 Min | GB/T6344-2008 |
Tear Strength | KG/cm2 | 6.5 Min | GB/T10808-2006 |
Water Absorption | gm/cm3 | 0.005 Max | GB/T1034-2008 |
Compression Strength | KG/cm2 | 0.35 Min | GB/T8813-2008 |
Working Temperature | Degree | -40 to 70 | —— |
Thermal Conductivity | W/m.k. | 0.038 Max | GB/T3399-1982 |
Application:
Used for toolbox, case,cartons inserts.
Package will according to customer's demand.
* PE foam sheet; EVA Foam , EPDM rubber foam, Neoprene or CR rubber foam. Sheet.
* Die cut foam products.
* CNC foam products.
* Foam rolls.
* Foam with adhesive.
* Special shaped foam product.
* OEM or customerized foams
