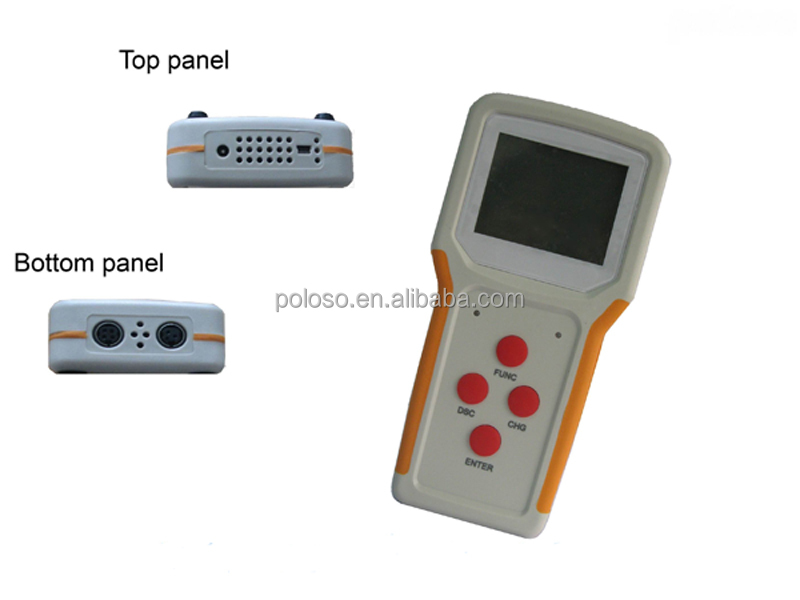

poloso RFNT3 Universal Laptop Battery Tester Charger Discharger

compatiable with over 95% batteries in the market by 14 different connectors !

Function:

*Charge:

Active, pre-charge, constant current and constant voltages are the stages of charging mode.

*Discharge:

Constant current discharge for double loads

Inner load: 0 ~ 1000mA, adjustable continuously via Battery Manager

External load: 0mA, 500mA, 1000mA, 1500mA, 2000mA, five gears with dip switches offered

*Test:

Testing time is 12 seconds and the purpose is to check both the charging and discharging performances. After finishing test, LED flickers with green color and LCD reports the test result

Normal: Test OK Shown on LCD

Abnormal: Test NG Shown on LCD

*Capacity Correction

The battery capacity value in the battery management chip will different from the actual capacity after a battery goes through many recycling cycles. Capacity correction is to deep discharge a battery and then fully charge, which will correct the capacity value in the battery management chip.

*50% Capacity

CD50%: charge firstly, and then discharge to 50% capacity

DC50%: discharge firstly, and then charge to 50% capacity

*Online Functions

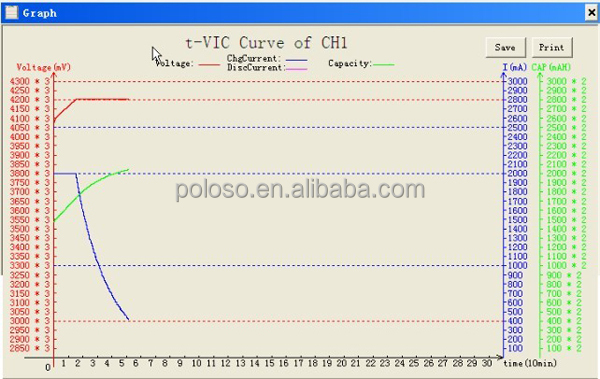

Tester can be connected with master machine via a USB port. Users can monitor, control and set parameters via Battery Manager software in the master machine.



Feature:

1. with one channel, supporting one intelligent battery

2. Supporting charge, discharge, test, capacity correction, charge / discharge 50% capacity

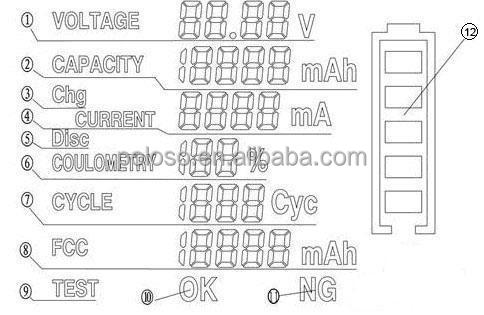

3. LCD for displaying battery information

4. LED for indicating working status

5. With charge-key, discharge-key, backlight-key and function-key

6. Pre-charge, fast charge and constant voltage charge for charging stages and the variation range of the values of the constant current and the constant voltage is less than 1%

7. Constant current for discharging

8. With a USB port for connecting with computers, master machine can monitoring and control slave machine



Specification:

Item:RFNT3

Brand:POLOSO

Dimensions:201 x 99 x 35 mm

Weight:333g

Adapter:Input: AC 100 ~ 240 V Output: DC 24V 2.65A

Display mode:Segment LCD with white backlight + LED in red and green

Discharging mode:Constant current discharge for double loads, inner load & external load

Charging mode:Constant current and constant voltages are the main mode.

Charging current:There is a connection between current intensity and charge mode. The max charge current is 2.5A.

Standby power consumption≤1W

Time:

Time limit for charging: 8.8h

Time limit for discharging: 8.8h

Time limit for testing: 6s + 6s = chg + disc

Auto quit time for function menu: 10s



Accessories:

1 * adapter

1 * USB cord

1 * CD

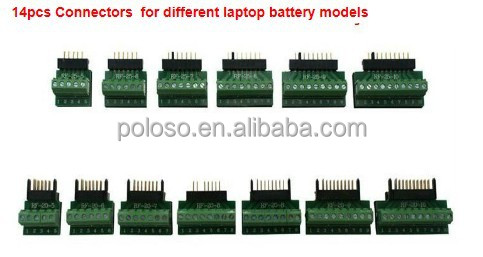

14 * connectors

10 * cables

10 * jumpers

1 * load
