1.General description

GSM FWT is a GSM line to Analog Converter(single port, insert 1 sim card only),the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN)expect your calls will go out the GSM network. The device can both receive and make calls.

The main application is: Connecting the RJ11 FXS line with fixed phone for voice call, connect PBX for call extentions, connect billing system for publish phone use, connect VOIP gateway for VOIP call terminal, connect alarm system for security purpose,etc.It is not a VOIP gateway,nor a GSM+VOIP gateway. it is a GSM fixed wireless terminal that produces a Analog FXS phone line.

Available:

1)GSM 900/1800MHz dual band

2)GSM 900/1800/1900MHz Tri band

3)GSM 850/900/1800/1900MHz qual band, base on M10 module, can be used all over the world.

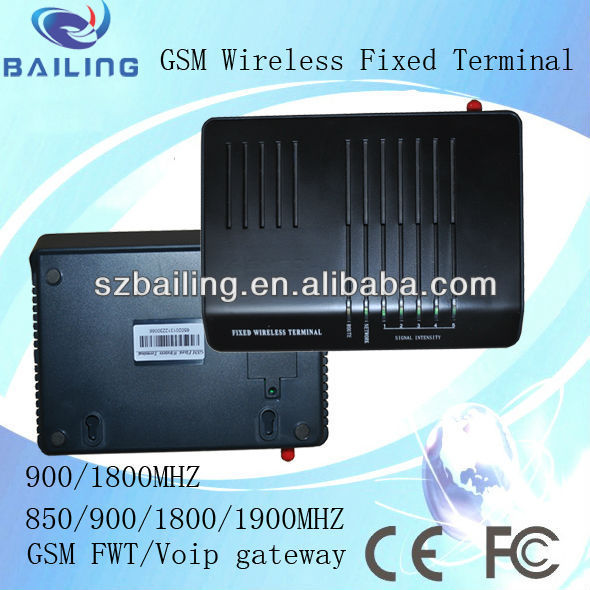

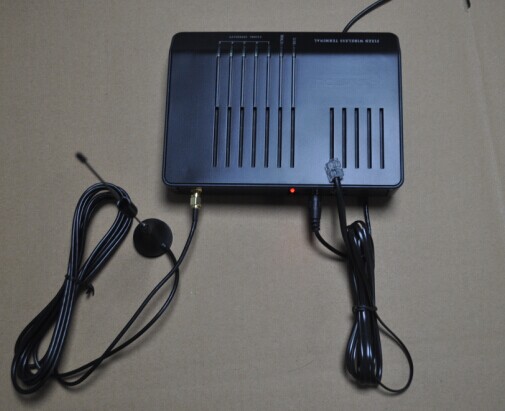

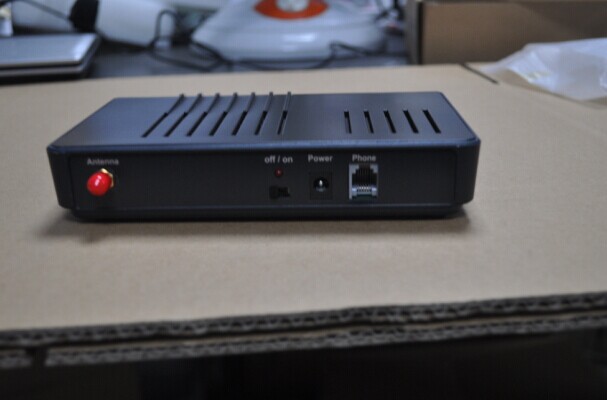

Appearance and Structure

 2.Features

1) It is a 1 channel GSM gateway with 2 RJ11 outputs for extensions.

2) It can connect with fixed phone set, PBX,VOIP Gateway, Billing meter, etc

3) Dialing tone frequency:450MHz

4) Base on industrial module M10/M35

5) Can adjust dial interval from 0.5sec to 9sec by setting up from telephone set

6) Can adjust voice volume by setting up from telephone set

7) SIM card supported(1.8V/3V)

8) Caller ID display

9) DTMF Dailing

10) Bell signal

11) Polarity reversal

12) The RJ11 socket which connect the phone or billing system for metering purpose

13) Antenna socket(SMA)

14) IP presetting

15) Working status and signal strength by LED indicator

16) IMEI change(optional)

17) USB interface for get online(optional)

18) PIN Locked(option)

3.Technical specification

Air interface standard: GSM 850/1900MHz,900/1800MHz phase 2+ full band

Frequency ranges:

A)GSM 850                                     GSM 1900

I)Transmission:869.2~893.8MHz      I)Transmission:1930~1990MHz

Ii)Reception:824.2~848.2MHz         Ii)Reception:1850~1910MHz

B)GSM 900MHz                           GSM 1800MHz

I)Transmission:890~915MHz         I)Transmission:1710~1785MHz

Ii) Reception:935~960MHz          Ii)Reception:1805~1880MHz

Phone interface:supply RJ11 phone interface

Hanging voltage:45V

Picking off voltage :30Ma/41Ma

Dialing tone Frequency:450MHz

Antenna interface:Antenna amplifying>2,5db

Sensitivity:<-104DBM

Transmitting power<3W

Color:White/Black optional

AC-Adapter interface: Input : AC 110~240VAC   50~60MHz

Output: 12DC 1A

AV adapter type: EU,US,AU, British can be optional
