2.2 mm working channel video durable medical video endoscope compare with video endoscope



Flexible Video Electronic bronchoscope is a totally new design to replace traditional endoscopes.



We have many medical application around the world.

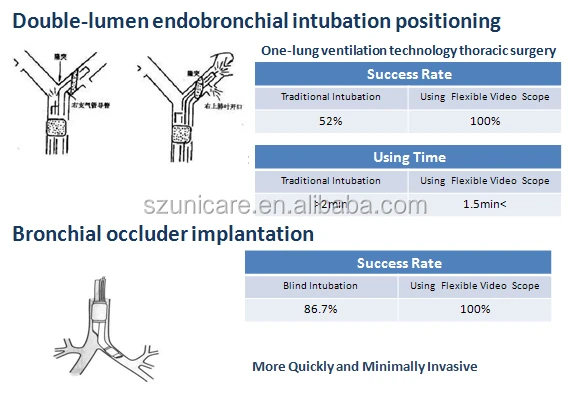

1, DLT position check





2,  Take out bladder stone in Urology

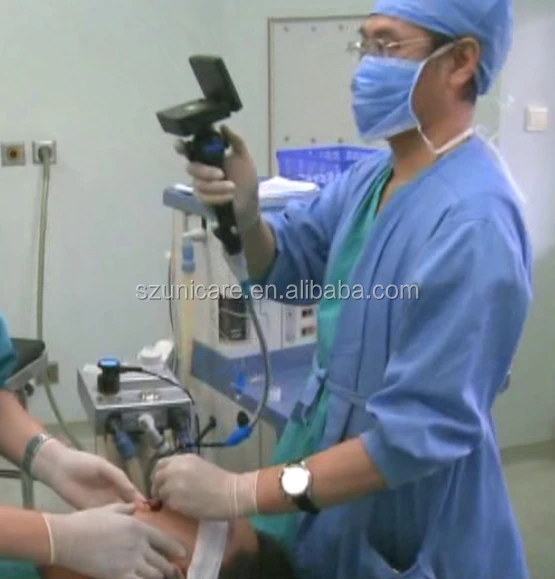

3, Difficult airway management.



4, Emergency Room, Portable and Durable





The most advantage of our endoscope

 Improvement Patient Care And Save Money



Medical applicaton:

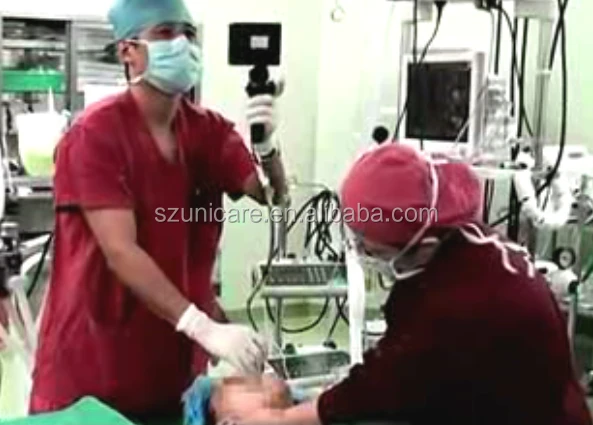

1,General Intubation/Difficult Airway Intubation

 Insufficient availability of equipment for management of the difficult airway in the OR, ER and ICU was considered among the major causative factors contributing to poor outcomes in the NAP4 survey conducted in China. In the ICU, access to a flexible scope for airway management was a recurrent problem.

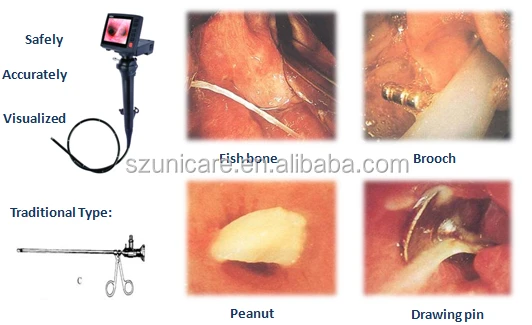

2,V41 bronchoscope can take out foreign materials from tracheal and  2.2 mm working channel video durable flexible endoscope lens.

Airway foreign bodies in children,80%-91.8% happened under 5 years. Most likely the peanut piton and bottle gap.

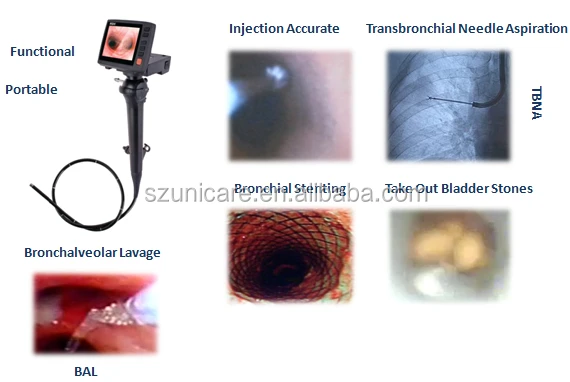

3,Interventional Therapy





4.Other Functions





5,Advantage of V41 2.2 mm working channel video durable flexible endoscope lens  .





More than 20 members of the Medical Technologies Advisory Committee including doctors, scientists, professors, health economists and patient representatives  have taken part in reviewing and discussing the clinical and economic data before producing the guidance.
In addition, external anesthetists, who are the experts when it comes to ventilation and ensuring survival in critical situations, were consulted for their view on Unicare V41  2.2 mm working channel video durable flexible endoscope lens.



Technical Information:



Modern and practical design

1,Detailed Design can take biopsy easily,suction easily,and brush clean easily

2,Flexible is ultra slender and flexible

3,Wide angle of visual

4,Video and Photo can output by USB cable, 8G memory card

5,Easy to learn and instructional.



 Specification:

Model	Item	V41
Optical system	Field of view	90°
	Depth of field	3-50mm
Insertion tube	Distal end outer diameter	5.8mm
	Suction channel diameter	2.2mm
	Handler	Flexible
	Insertion section working length	580mm
	Flectional	Yes
Bending section	Angulation range	up130°/Down130°
Waterproof		IPX7
Display part	Resolution	400*400
	Screen	3.5''TFT LCD screen
	Color	True
	Shoot Image/Video	Yes
Power		18650 Lithium 3hours continuous





 Packing list of V41 2.2 mm working channel video durable flexible endoscope lens.

1,Suitcase and Keys

2,Monitor

3,Operation Part

4,ET Tube Adaptor

5,ETO Gap

6,Oral Cavity Guide Sheath

7,Cleaning Brush

8,18650 Lithium Batteries,CR123A Battery Converter

9,Battery Charger

10. USB Cable

11. Manual, Certificates, Packing List, Warranty, etc.

12. Closing Plug, Stopper
