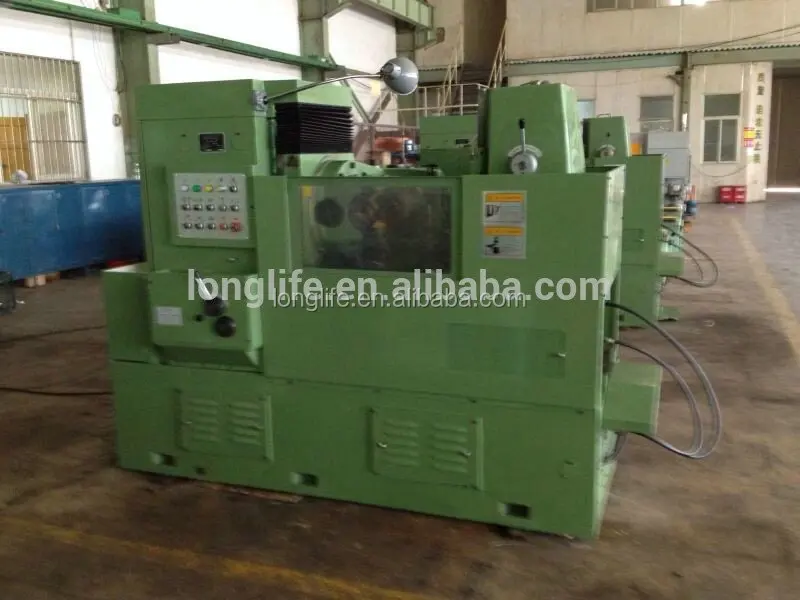

YNH3120/32/50 Gear Hobbing Machine
Declarations
According to the production arrangement, the YNH3132/3120/3150 PLC gear hobbing machine will be not manufactured in recent 6 months,
But the after-sale service & spare parts are provided as usual.
Recommended Hobbing
YX3132CNC5(Ø320mm) 5/6-axis high-class CNC Gear Hobbing Machine
Y3180(Ø800mm) Conventional Gear Hobbing Machine
Main Featurers:
such gear hobbing machine has following features:
1. It is applicable to produce or process spur gear, helical gear, worm gear and sprocket in batch or piece unit.
2. This machine is provided with the characteristic of excellent steel resistance, high intension, high precision, easy-operating, adjusting and maintaining etc.
3. It can process gear with down milling and up milling method in axial or radial way.
4. According to the requirements of customer, this machine can be equipped with Siemens CNC System to process crown
gear and Small Taper Gear, and it can also heighten or lengthen machine tool.
* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.
Main Technical Data:
Specifications | Unit | Y(NH)3120 | Y(NH)3132 | Y(NH)3150 |
Maximum diameter to be hobbed | mm | 200 | 320 | 500 |
mm | 4 | 8 | 8 | |
Maximum angel of helix |
| ±45° | ±45° | ±45° |
Worktable diameter | mm | 210 | 360 | 510 |
mm | 40 | 80 | 80 | |
Diameter from the hob center worktable centers | 10~185 | 30~300 | 30~330 | |
Diameter form the hob center worktable surface | mm | 125~295 | 235~535 | 235~535 |
Maximum diameter of hob | mm | 110 | 160 | 160 |
Maximum length of hob | 110 | 160 | 160 | |
Maximum axial movement of the hob | mm | 50 | 55 | 55 |
Cone of the spindle bore | r/mm | MT 3 | MT 5 | MT 5 |
Hob spindle speeds in 8(9) steps
| mm/r | 63~320(8) | 40~250(9) | 40~250(9) |
Axial federates | mm | 0.2~3 | 0.4~4 | 0.4~4 |
Hydraulic withdrawal of the worktable | mm | 30 | 50 | 50 |
Power of the main drive motor | kW | 2.2 | 4 | 4 |
Total power consumption | kVA | 3.42 | 7.5 | 7.5 |
Net weight/Gross weight | kg | 2100
| 4500 | 4550 |
Machine overall dimension (length × width ×height) | mm | 184×140×145 | 245×135×185 | 245×140×185 |
The measure of area (length × width ) | cm |
200×180 | 250×190 | 250×190 |
Free Std Accessories
S.N | Name | Remark |
1 | Hob arbors (Ø27, Ø32, Ø40) | 1pc/size |
2 | Tools for installation and adjustment |
|
3 | Dead center |
|
4 | Manuals in English | 1 set |
Optional Accessories
Pls send inquiry to me for optioanl accessories and other further information about such gear hobbing machine.
Our Services
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353
7, Fax us:+86-411-84410129
