CE compact tractor towable

Описание и отзывы

Характеристики



 Benifits:

1 CE certification

2 Easy installion and removel

3 Full hydraulic down power for digging and trenching

Specifications









Backhoe Model			LW-5	LW-6	LW-6E	LW-7	LW-7E	LW-8	LW-8E	LW-10	LW-10E	LW-12
Matching Tractor		hp	15~25	20~35		30~55		50~90		70~120		100~180

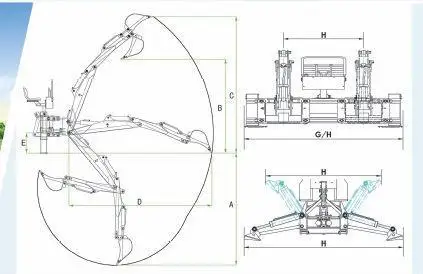

Max.Digging Depth	A	mm	1650	2000		2400		2800		3200		3655
Max.Unloading Height	B	mm	1530	1860		2050		2380		2650		3627
Max.Digging Height	C	mm	2600	2970		3210		3460		3770		5040
Working Radius	D	mm	2300	2700		3140		3600		3920		4510
Ground Clearance	E	mm	450					500				700
Side Shift Distance	F	mm	0	0	770	0	770	0	1000	0	1200	0
Min.Transporting Width	G	mm	1150	1700	1470	1700	1470	1700	1700	1850	2000	2100
Max.Width of Supporting Legs	H	mm	2100	2200	1470	2200	1470	2200	1700	2300	2000	2550
Bucket Width		in.	14			16		18		20		22
Bucket Capacity		m3	0.03	0.03	0.04	0.05		0.06		0.07		0.13
Weight		kg	360	550	600	560	620	630	700	800	1000	1500
PTO Hydraulic System	6/8/21 Splines(Option)
Thumb Grab	Option

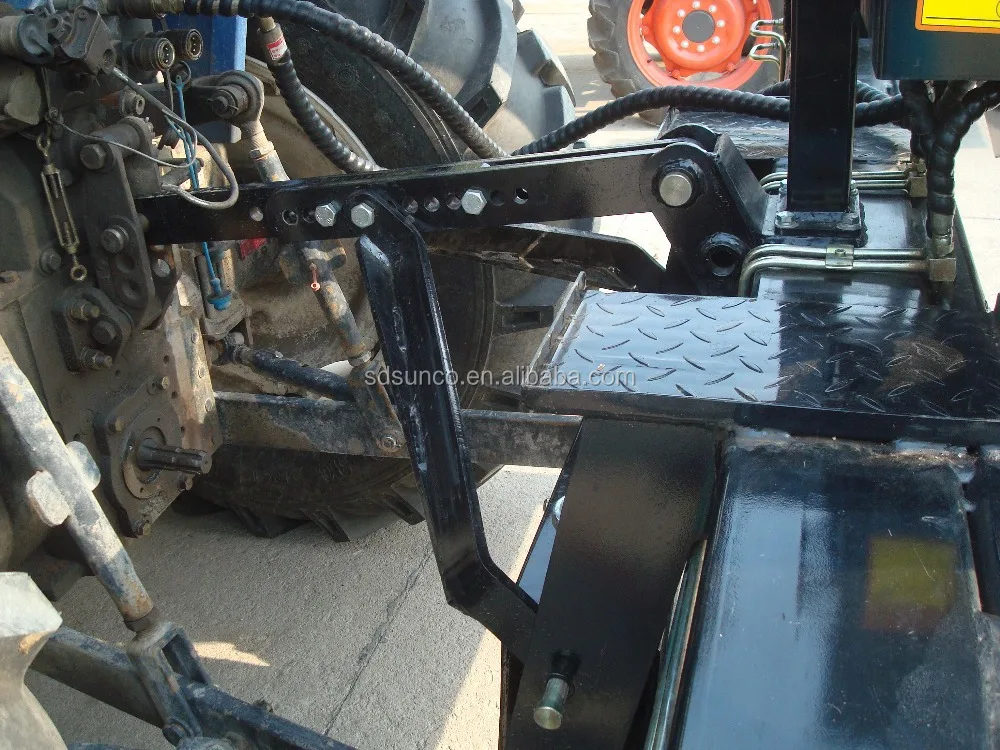

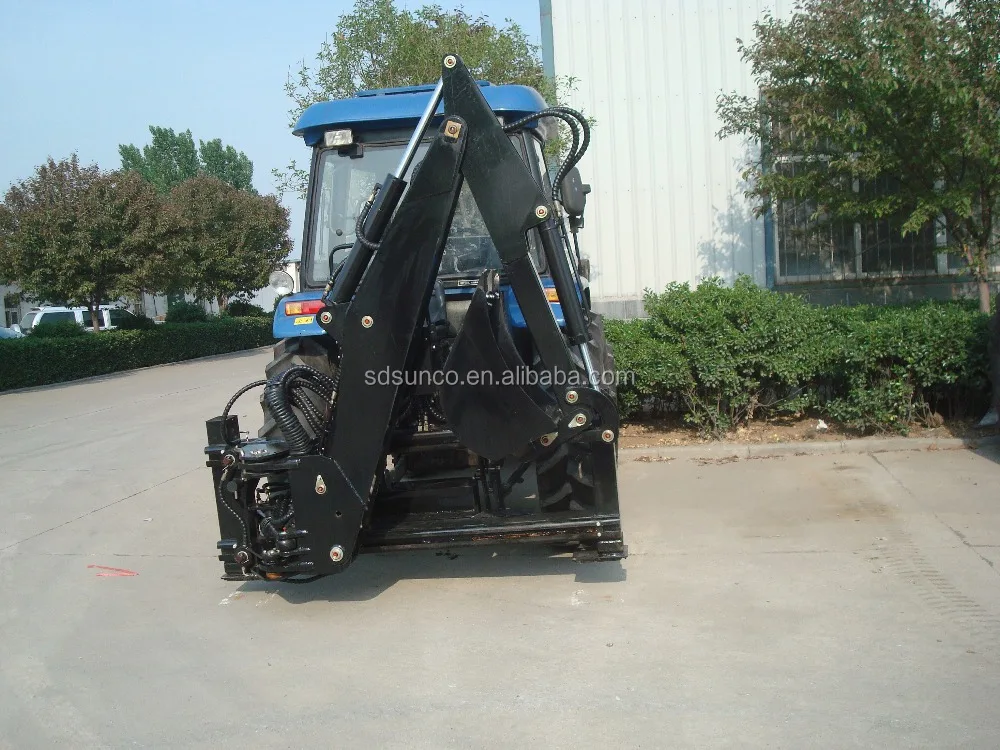

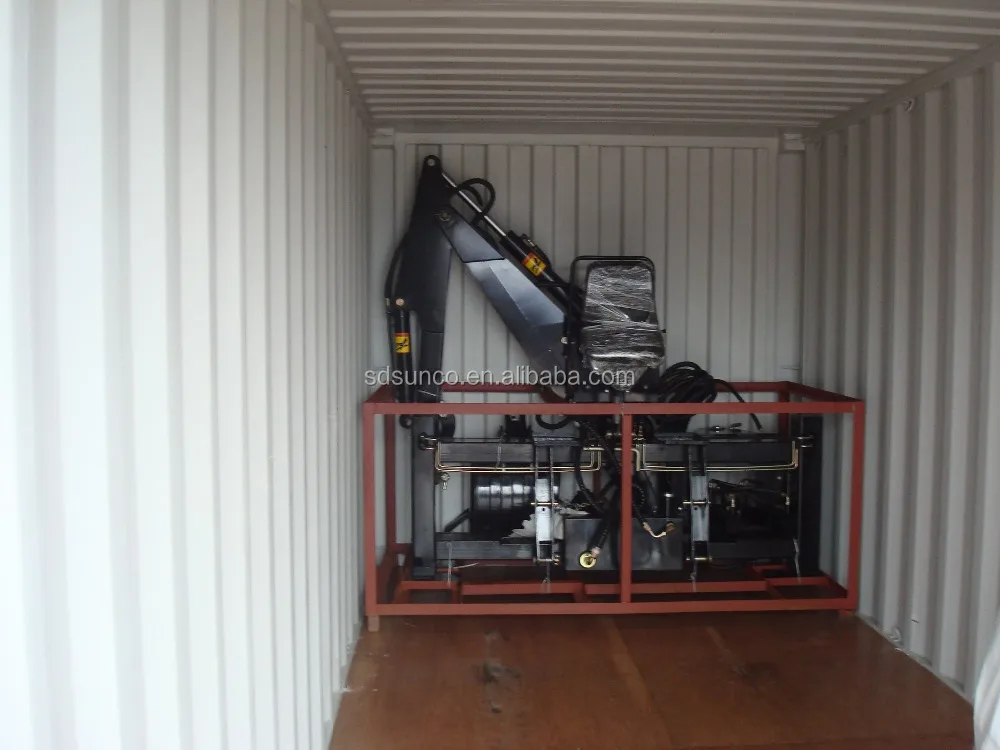

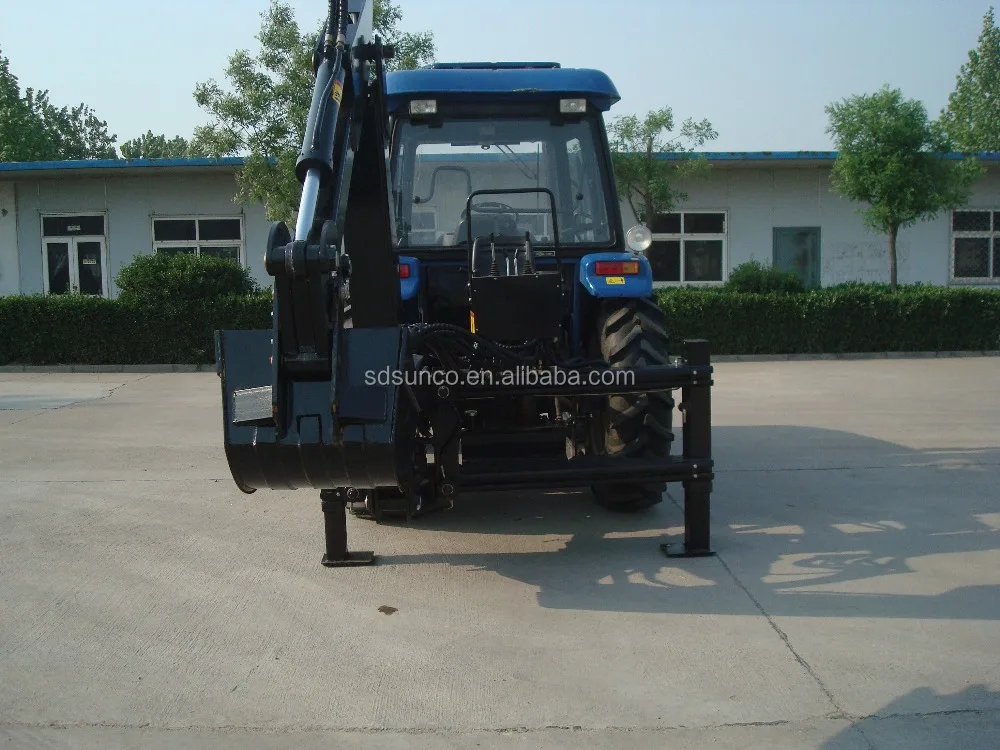

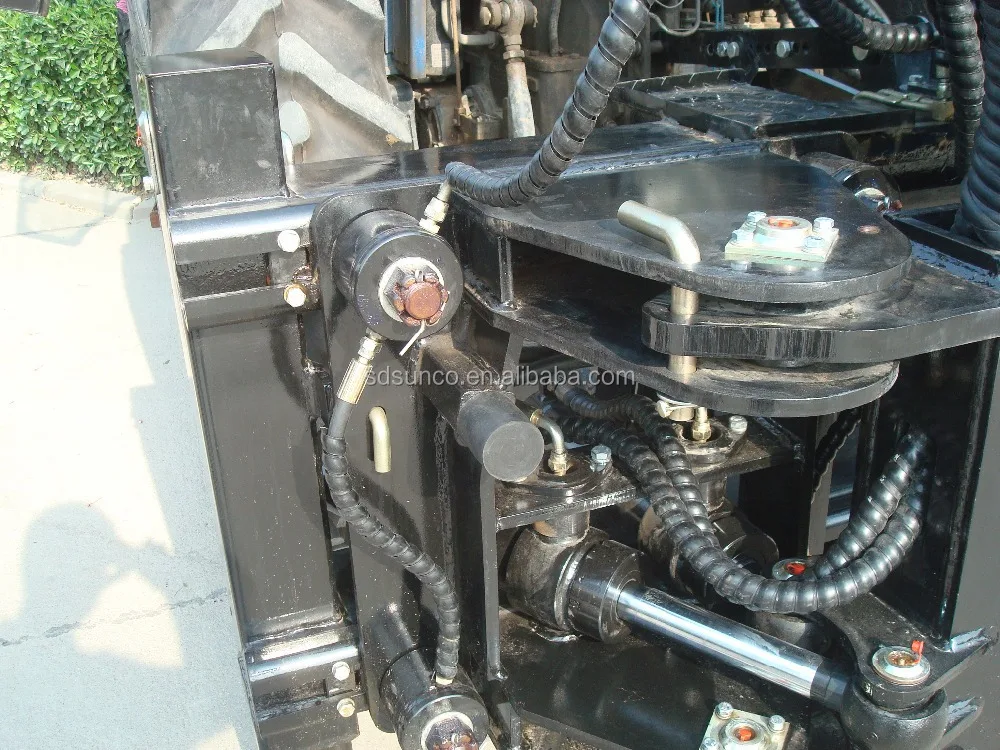

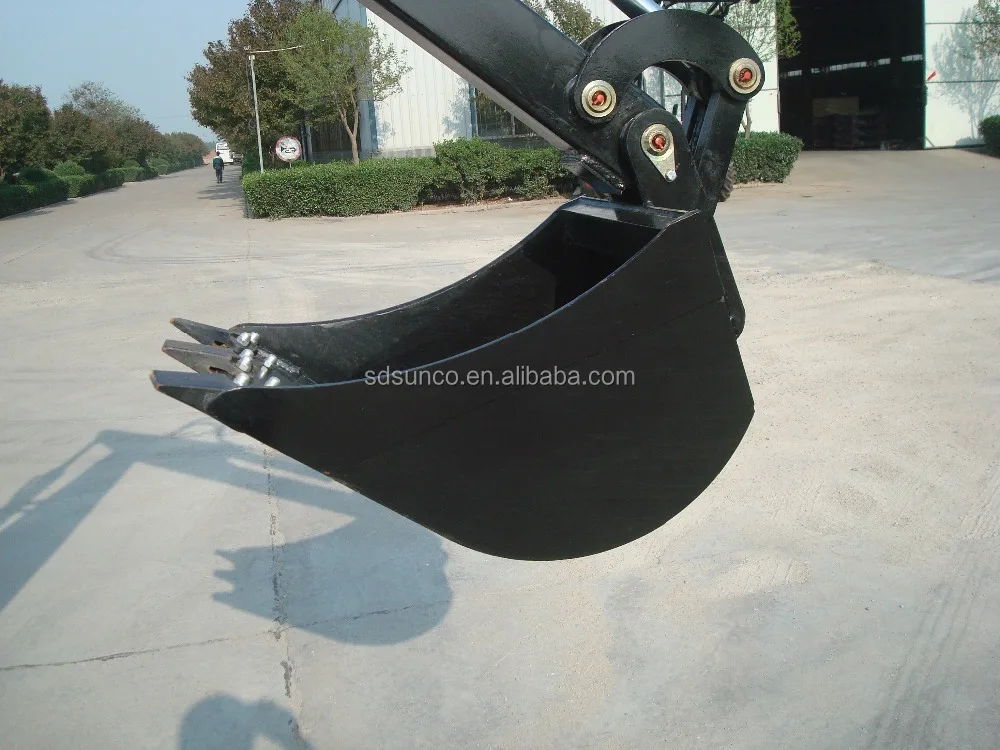

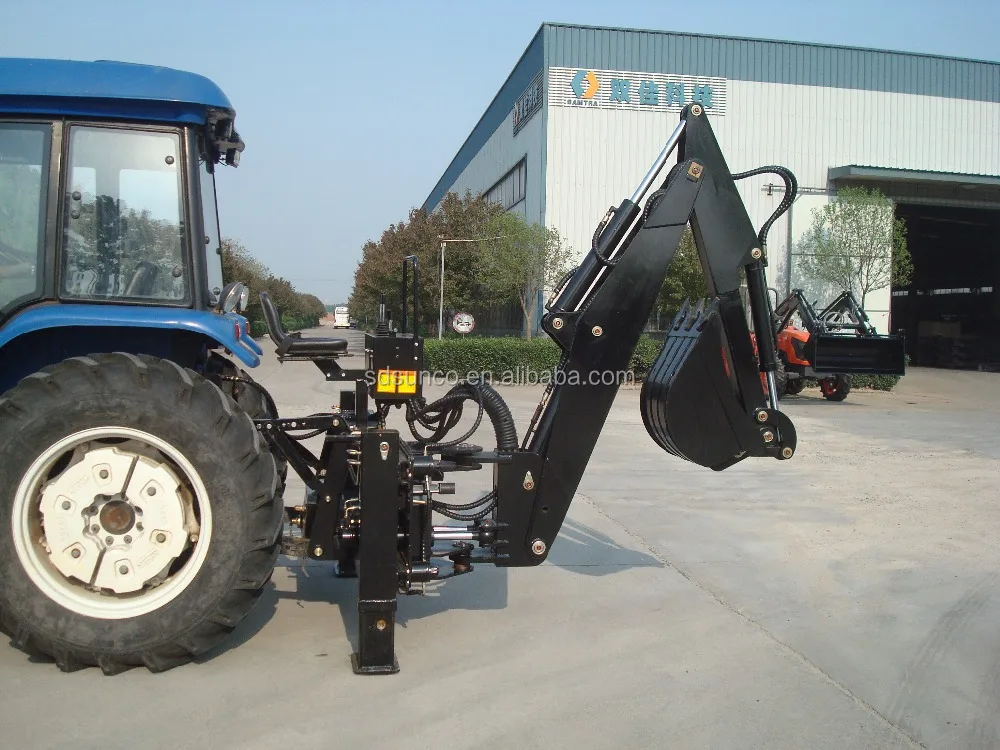

 Pictures



If you have any requirment, please contact with me

Mobile phone 008618505419920

Skype ID lee.nansy

Email 114972863(at)qq.com
