Venezuela Market Plastic Electrical Wire Gutter
1).Material: New PVC Material
2).Standard: IEC 61084-2-1
3).Apperance: Regular round, smooth, light, no impurity, beautiful Decent packaging
4).Color: Color pure, no have discoloration and aging
5).Smell: no scent,environmental.
6).Use: For internal wiring,protecting the wire under 1200v.
7).Effect: After using,wiring easily and trimly,installing reliably,and is convenient for maintaining and searching and exchanging.
8).Lifetime: ShingFong brand of PVC pipes and PVC trunking are Anti-aging,normal use life can be up to 50 years.
Product Features:
1).Thickness: With appropriate temperature and accurate molds machinery technology, the thickness,size,shape can be precisely controlled.
2). Toughness: If you bend ,can not be easier to break
3). Hardness: Under pressure ability, high impact resistance
4).Fire-resistance: Flame-retardant PVC resin,highly combustion-retardant,quickly self-extinguishing.
5).Corrosion resistance : moisture, acid and alkali resistance, assuring a lower maintenance cost and a longer performance life
7). Non-conductive: excellent electricity insulation, which resist 25kv voltage , assuring a safe system
8).Installation: easy to open and close ,convenient push-pull,installed with solvent cementing and threading joinin
9).Save cost: Can save much more installation expense than metal pipe and fittings because of light weight and convenient for installation.
PVC TRUNKING | Model | Size(W*H)mm | Thickness(mm) | Packing(pcs/bud) |
SF10-1 | 10X10 | 0.5/0.6 | 50 | |
SF12-1 | 12X12 | 0.6 | 50 | |
SF15-1 | 15X10 | 0.55/0.70 | 30 | |
SF16-1 | 16X16 | 0.7/1.0 | 30 | |
SF18-1 | 18X9 | 0.55/0.70 | 30 | |
SF20-1 | 20X10 | 0.55/0.70/0.75/0.90 | 30 | |
SF20-2 | 20X20 | 1.0/1.20/1.40 | 25 | |
SF24-1 | 24X14 | 0.60/0.70/0.80/0.95 | 25 | |
SF25-1 | 25X16 | 0.55/0.60/0.65/0.75/0.85/1.0 | 25 | |
SF25-2 | 25X25 | 0.60/0.80/1.2 | 20 | |
SF30-1 | 30X13 | 0.60/0.80 | 20 | |
SF30-2 | 30X15 | 0.65/0.85 | 20 | |
SF39-1 | 39X19 | 0.70/0.80/0.90/1.0 | 15 | |
SF40-1 | 40X16 | 0.80/1.25 | 15 | |
SF40-2 | 40X25 | 0.80/1.0/1.3 | 12 | |
SF40-3 | 40X40 | 1.0/1.3 | 9 | |
SF50-1 | 50X25 | 0.75/1.0 | 10 | |
SF50-2 | 50X50 | 1.0/1.5 | 8 | |
SF60-1 | 59X22 | 0.85/1.0/1.3 | 10 | |
SF60-2 | 60X40 | 1.2/1.5 | 6 | |
SF60-3 | 60X60 | 1.1/1.6 | 6 | |
SF75-1 | 75X50 | 1.2/1.4/1.7 | 4 | |
SF75-2 | 75X75 | 1.3/1.7 | 2 | |
SF80-1 | 80X40 | 1.2/1.5 | 4 | |
SF80-2 | 80X50 | 1.2/1.4 | 4 | |
SF100-1 | 99X27 | 1.2/1.4 | 5 | |
SF100-2 | 100X40 | 1.3/1.7 | 4 | |
SF100-3 | 100X50 | 1.3/1.8 | 4 | |
SF100-4 | 100X60 | 1.4/1.8 | 2 | |
SF100-5 | 100X100 | 1.3/1.8 | 2 | |
SF150-1 | 150X50 | 2.3 | 2 | |
SF150-2 | 150X100 | 2.3 | 1 | |
SF200-1 | 200X100 | 2.3 | 1 | |
SFF25-1 | 25X8 | 1.25 | 30 | |
SFF35-1 | 35X10 | 1.4 | 30 | |
SFF50-1 | 50X15 | 1.8 | 20 | |
SFF70-1 | 70X20 | 2.1 | 10 | |
SFF100-1 | 100X30 | 2.3 | 5 |
M.O.Q | 8000PCS |
Package | Up to your requirement |
Port of Loading | Shunde, China |
Delivery | 25 days after receipt of 30% deposit |
Payment | By T/T or L/C |
Certificates | CE, ISO9001 |
Life Span | 30 years |
Main Market | Europe, Mid east, South America, Africa, etc |
OEM, ODM Capacity | It is acceptable to manufacture your brand products or set your brand on our own products instead our brand |
Sample | Free |
Item: PVC trunking | ||
Impact property (60°Cx240h, -5°Cx2h) | No damage | |
Impressive property | Load 1min | D<25% |
Load-off 1min | D<10% | |
Fire Test | Oxygen index | >32% |
Vertical Combustion | FV-0 | |
Horizontal Combustion | FH-1 | |
Heat Resistance | D<2mm | |
Power frequency voltage (2500KV kv/min) | No damage | |
Insulation resistance | >500MΩ | |
pvc trunking
3.We have pvc trunking with self adhesive in blue,white or red color.
4.We have pvc trunking accessories/fittings from 20x10mm to 100x60mm,such as flat angle,flat tee,internal angle,external angle,terminal,coupler.
5.Packaging: pieces in one bundle, each bundle in one plastic printing bag or up to you.The design of plastic bag will be transparent or as customer request.
Shipping:We will loading the goods in 7-10 days after we receive the deposit from customer.
6.Advantage:pvc trunking
1).Customization: Any color, size, thickness depending customers’ request, also can open new model for customers.
2).QC:Our QC members who are strict, experienced and technical..
3).Delivery time:5-10 days finish one high cube
4).Packaging Details:pvc cable trunking 25pcs in one bundle, each bundle in one plastic printing bag or meet your request.
5)Payment Term:T/T,30% as deposit,70% at the sight of BL copy
7.Certificates

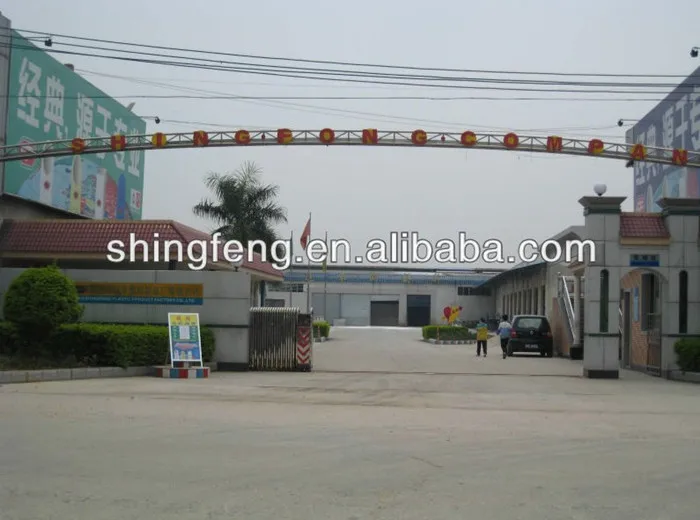

Factory & Warehouse Overview
Our factory of PVC Trunking locates in Sihui city, it only takes one hour from guangzhou to our city by car. We manufacture a wide range size of PVC Trunking from 10x10mm to 200x100mm. With experience of more than 18 years, we sure to supply you good quality of PVC Trunking with competitive price.
Welcome to contact Gaby at any time.
Pls scan QR to find Gaby's vcard below
