FM200 GAS (hfc 227EA) GAS filling machine for fire Suppresion cylinder HFC-227ea Gas is one expensive extinguishing agent , upgrade filling effective and keep away gas losing very important ,

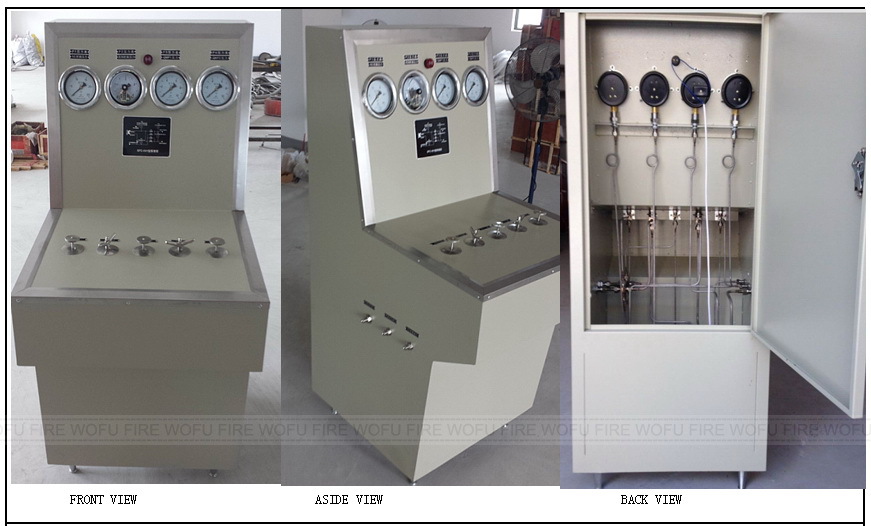

 Filling HEAD OF THE MACHINE

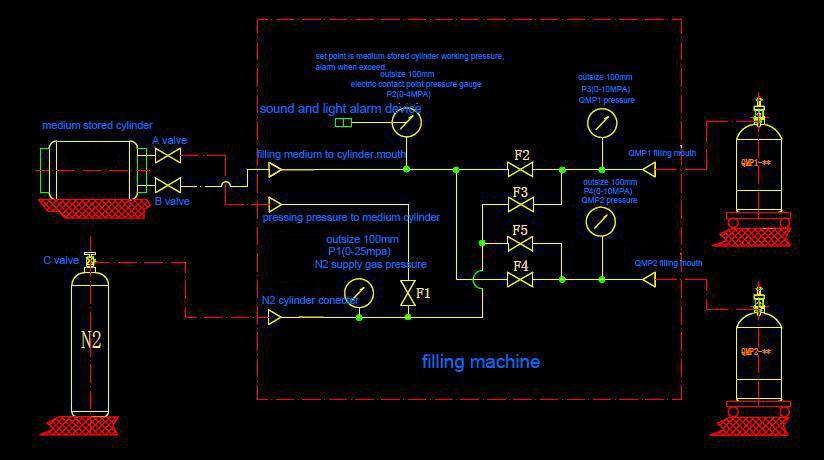

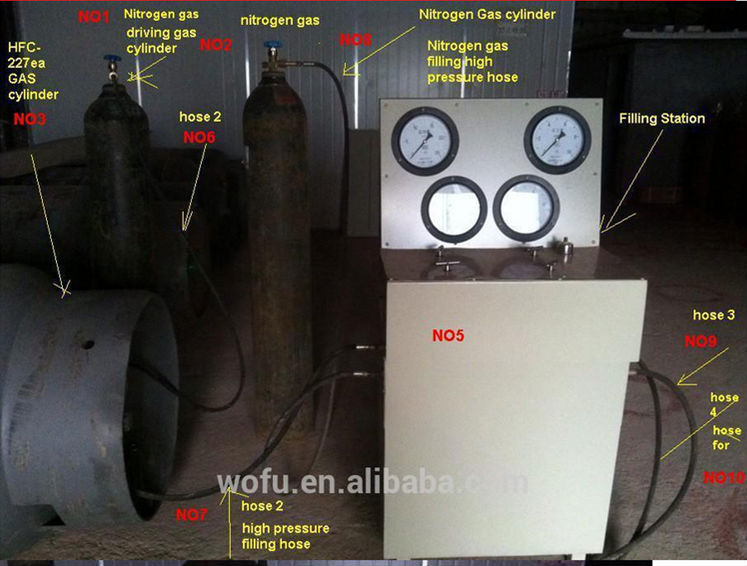

How HFC-227ea filling machine to be connected when in filling operation









HFC-227ea Gas filling machine Operating instruction

1.Usage:

The filling machine is suitable for use in liquid medium without pressure, such as seven fluorin propane, six fluorine propane etc. agents partial filling.

The filling machine have nitrogen inlet hole, through nitrogen to pressing the medium in the storage container,using siphon phenomenon release medium of storage container,to filling.Filling mouth is divided into two:QMP1 and QMP2.

Use of this filling machine can improve the filling efficiency and reduce the medium loss.

2.Filling machine structure:

1.Four pressure gauges:

Pressure gauge P1(0-25MPa)is show nitrogen stored cylinder pressure.

Pressure gauge P2(electric joint pressure gauge 0-4MPa)is show medium stored cylinder pressure.

Pressure gauge P3(0-10MPa)is show pressure after filling medium to cylinder.

Pressure gauge P4(0-10MPa)is show pressure after filling medium to cylinder.

2.Five kinds control valve:

F1 is pressing control valve for medium stored cylinder.

F2. F4 respectively is pressing control valve after filling medium to cylinder.

F3. F5 respectively is quality(weight) control valve for filling medium to cylinder.

3.With a sound and light alarm device(AC.220V input);



HFC227EA filling machine details
Product name	HFC-227EA suppression filling machine
Type	Automatic
MOQ	1 set
Packing	Wooden box
Delivery time	Ten days after deposit received
Payment terms	T/T, L/C
Application	It can be used for HFC-227EA fire suppression system cylinder gas filling. (Clean agent HFC-227EA gas, HFC-236FA).
Features	1. It applicable to various of filling cylinder, such as 20ltr, 40ltr, 70ltr etc. 2. Two nitrogen intakes on the machine which can fill the material after the pharmaceuticl container increase the pressure. 3. It has two filling mouths which can fill gas or pressuring the nitrogen at the same time. 4. Improving the efficiency of filling and reducing the lose of filling machine.
Certificates	ISO9001, CNAL,





Fire Suppression System HFC-227EA Equiment Name

Item	Equipment	Unit
1	Fire Alarm Control Panel (FACP)	set
2	HFC-227EA Gas	kg
3	HFC-227EA Gas storage container with impulse valve(one 100LTR filling 87kg gas )	each
4	FM-200 Gas storage container with impulse valve(70ltr filling 52kg )	each
5	Electrical Actuator	each
6	Manual Actuator (control)	each
7	Discharge Nozzle (brass nozzle 360Degree)	each
8	Intelligent Smoke & Heat Detector with Optional CO Sensor and base	each
9	emergency light	each
10	Addressable input/output module	each
11	Fire Alarm Bell (6")	each
12	Break glass call point	each
13	Abort switch	each
14	Horn and strobe	each
15	Gas discharged signage for 2 room	Lot
16	Evacuate area signage for 2 room	Lot
17	M.S pipe ( ERW) for 2 room	Lot
18	Surface conduit wiring	Meter
19	Assemblying charges
