1600W Switch Mode Power Supply Rectifier
Product Description
Main Features:
1U rectifier power shelf up to 1600W
- Wide Input Voltage Range 90Vac-300Vac
- Wide Temperature Range -40 to +75C
- High Power Density
- High Efficiency
- High Power Factor, Low THD
- Active Current Share
- Advanced Battery Management, LVD Control
- Alarm and Protection Function
- Intelligent interface RS232/RS485
- Hot Plug-in
- Front/Rear Access installation
Application
- Wireless Networks
- Access and Optical Network Equipment
- Enterprise Networks
Configuration:
2 rectifiers + 1 controller + 1 dc distirubtion
Standards:
UL60950 /EN60950
EMC EN55022
RoHS
Specifications
| 1 Input | |
| Input Voltage | 176~300Vac full load |
| 90-176Vac Derating load | |
| Frequency | 45 Hz-65 Hz |
| Inrush Current (maximum) | 38A |
| Power Factor | ≥0.99 |
| Efficiency | ≥91% |
| 2 Output | |
| Vo range | 42/53.5/58 (Vdc) |
| Vo Regulation | -0.5/+0.5 (%) |
| Output Current | 75A |
| Current Share | -5/+5 (%) |
| 3 Environment | |
| Operating Temperature | -40 ºC - 75 ºC |
| Humidity | 10% - 90% Non Condensing |
| Cooling | Forced Air |
| 4 Configuration | |
| Controller | SC Controller |
| Rectifier | CR2000-48 |
| DC Distribution | 1*75A Load 1*75A Battery 1*LVD control 4*Alarm Relay Output(programmable) |
| 5 Other information | |
| Dimension | 44.3*482.6*250mm(front access) 44.3*482.6*280mm(rear access) |
| Standards | Safety UL60950/EN60950 EMI EN55022 Environment RoHs Compliant |
| Communication | RS232/RS485 |
| Rectifier No | 2 |
Contact us

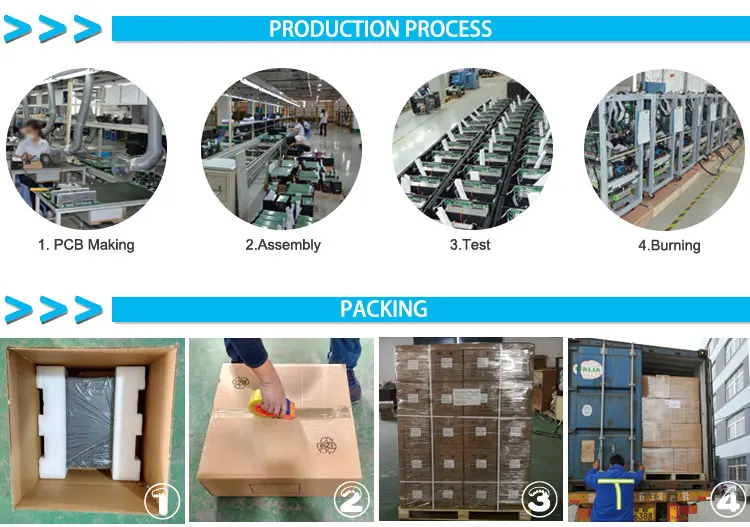

Production Process
