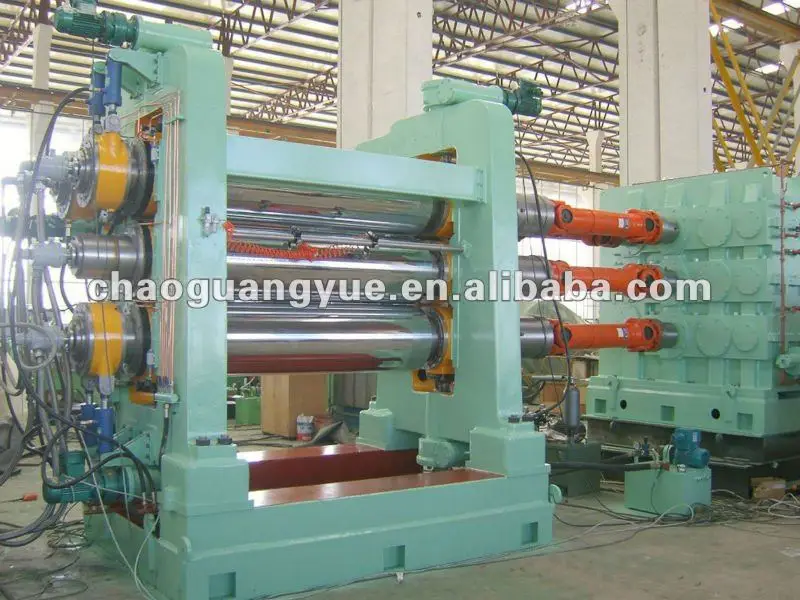

Four-roll Rubber Roll Calender/Calendering machine/Factory direct sales/Rubber sheeting Machine





1.Hardening teeth face gear reducer
2.roller is made from chilled cast alloy iron
3.universal joint drive.



1. Application:

Rubberizing and fractioning of textile material, rubberizing of wirecord fabric, sheet, and counter plate(embossed) of rubber material, separation of fabric and film, as well as joint of multi-layer laminate film.



2. General design:

It mainly contains roller, rack, backplane, adjustment, device, transmission system, roller temperature control device, security device, lubricating device, etc.



3. Features:
The roller is made of chilled cast iron alloys, whose work surface has high hardness, wear-resistent and durable life.



Steam, cooling water, and heat-conducting oil can pass into the rollers cavity, so that the working temperature can be adjusted in order to meet the technical requirements.



Roll spacing can be adjusted both by manual or electric mode.

Roller bearings lubricating can adopt drier oil or dilute oil.



parameters of four-roll rubber calender





Model & Parameter		XY3I 630	XY-3I 1120	XY3I 1400	XY3I 1500	XY3I 1730	XY3I2130
		XY3L 631
			XY-3L1120
Roll dia	mm	230	400
Roll working length	mm	630	1400
Roll ratio		1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1
			1:1.38:1.38	0.73:1:1	1:1.38:1.38
		1:1.42:1	1:1.38:1		1:1.38:1	1:1.5:1
Middle -roll liner speed	r/min	0.8-8	3-21.06	3-26.39	2.62-26.2	5.5-54	8-50
Adjusting nip range	mm	0-7	0-10	0-10	0-6	0-20	0-20
Min.Calendering product	mm	0.2	0.2	0.2	0.2	0.15	0.15
thickness
Motor Power	kw	100-500	500-	1200	1400	1400	1900
Overall Dimensions	mm	3168	5550	6500	7420	7010	7650
	mm	890	1640	1500	2200	3950	4560
	mm	1830	2120	2440	2900	3730	4080
About weight	t	2.6	11	22	26	52	67







We are Qingdao ChaoGuangyue Industry CO.,LTD.Our main products are: various types of rubber mixer, rubber crusher, plate vulcanizer, rubber cutter, rubber extruder, rubber refiner and other kinds of rubber machineries. The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
