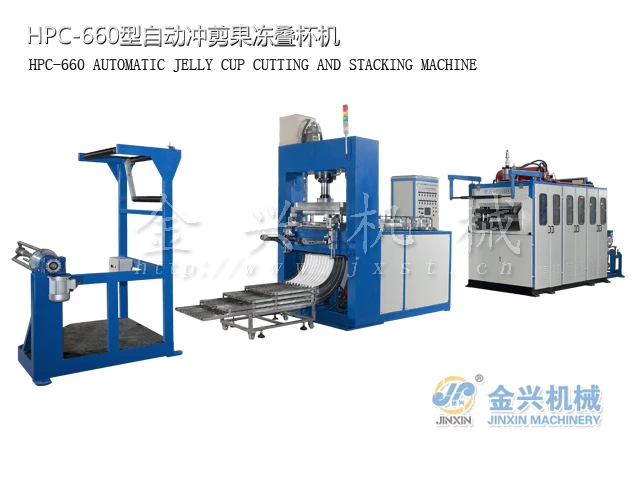

HPC-660 Automatic Jelly Cup Cutting and Stacking Machine
Parameters
Parameter
HPC-660
Available Material
PP,PE,PET,HIPS,GPPS
Formed Area(mm)
650*320
Formed Depth(mm)
120/180
Formed Speed(cycles/min)
20-35
Max.Width(mm)
660
Sheet Thickness(mm)
0.3-2.0
Power of The Whole Machine(Kw)
≤45
Air Wastage(Mpa)
0.6-0.8
Water Wastage(M3/h)
≤0.5
Dimension(mm)
5500*2300*2400
Function
1.The machine adpots hydraulic pressure system to produce products,stable running,small noise,good mold locking ablity.
2.Electromechanical,gas,hydraulic pressure integration,PLC control,high precision frequency conversion.

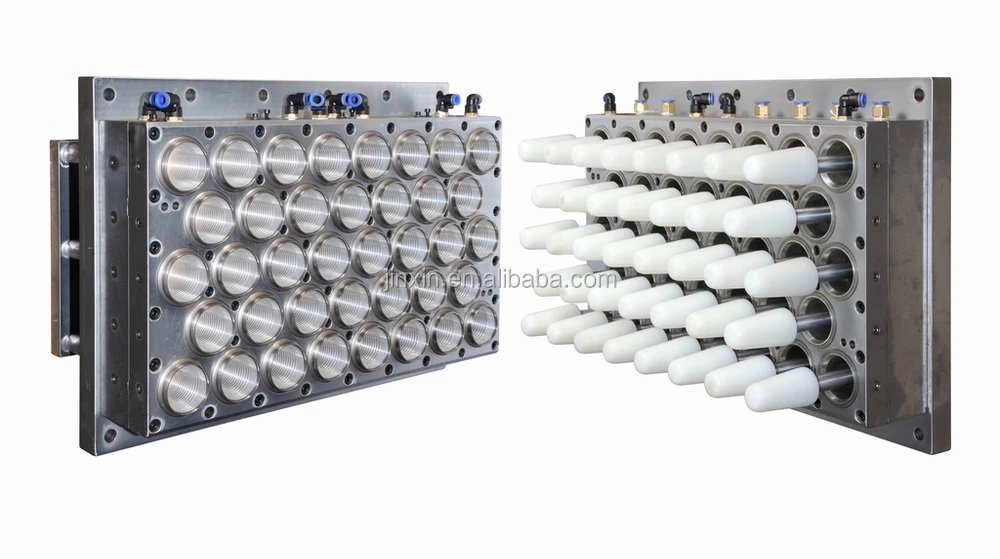

3.Completely automatic and fast production speed.By installing different molds to produce different prodcuts.
4.Adpot imported famous brands of electric and pnematic fitting,stable running,reliable quality and long life.
5.The whole machine is compact,one mold has all functions,such as pressing giving,forming,cutting,cooling and finished product stacking.Short process,high quality of finished products and meet the national sanitary standard.

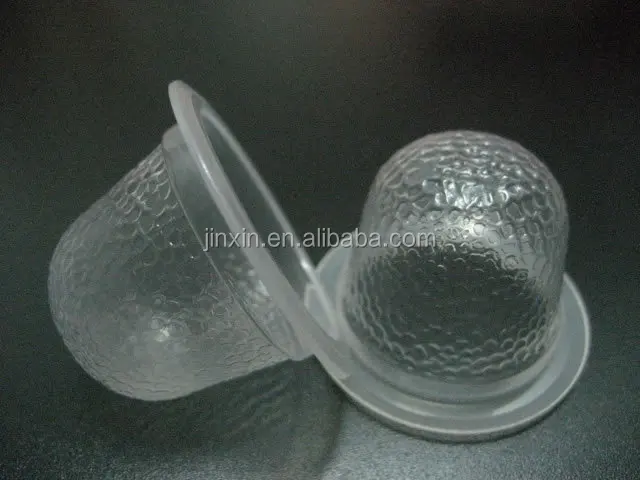

6.The machine is fit for producing PP,PE,PET,HIPS,GPPS and other plastic prodcuts,such as cup,box,bowl and so on.For example,milk cup,jelly cup,ice cream cup,instant noodle bowl,fast food box and so on.
Main Fittings 1.Electric Fittings: Yatai PID Self-adjusting Automatic Temperature Control Meter, Schneider
Pushbutton, Selector Switches, Pilot Lights, Contactor and Thermal Overload Relay, Korea LG Circuit-breaker; 2.Lubricating System: Taiwan Famous Automatic Oiling System; 3.Pneumatic System: Japan SMC; 4.Hydraulic System:Guangye hydraulic the pump and Taiwan Lianton hydraulic the electromagnetism valve.
