Линейный подвижный измерительный потенциометр 50 мм до 900
Линейный подвижный измерительный потенциометр 50 мм до 900
Линейный подвижный измерительный потенциометр 50 мм до 900

Линейный подвижный измерительный потенциометр 50 мм до 900


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики




Product Description

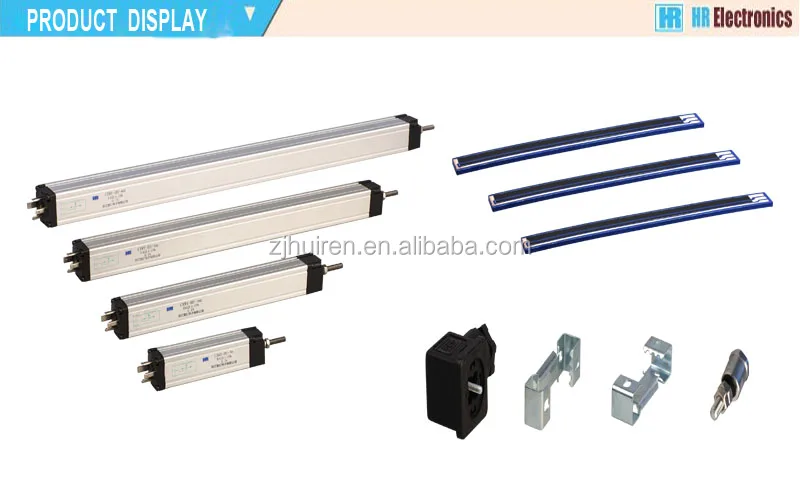

HR linear position sensors are designed for precise measurement of displacement and length. The Measuring range is up to 650mm with repeatability of ±0.01mm and linearity of  0.05% .Its structure is designed for simple installation and reliable work. Anodized aluminium housing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic track inside ,the product could run smoothly and have low-noise output signals.

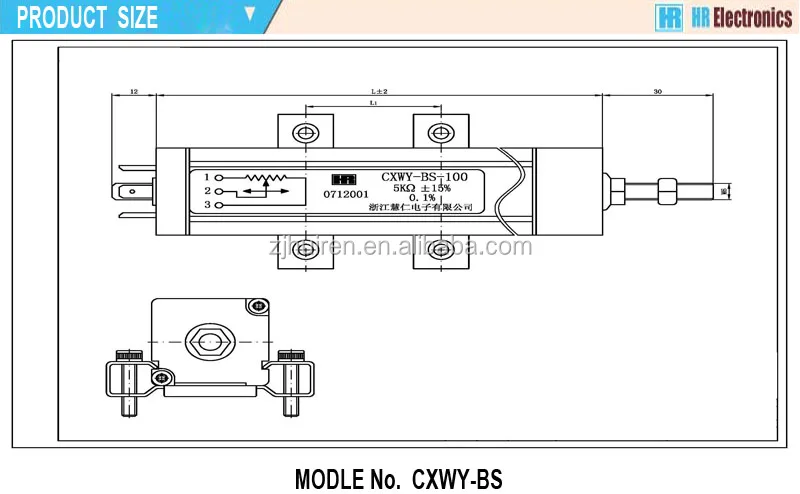

Potentiometer specifications



Electrical:
Standard Resistance5K Ω  ,  10K Ω
Resistance Tolerance±15%
Independent Linearity0.1% , 0.2% , 0.3% , 0.5% , 1.0%
Theory electrical corner50mm-900mm(Increasing every 25mm)
Power Rating 0.04W/cm (70°C)
Resist. Temperature Coefficient Of Wire≤±0.04%/°C
Insulation Resistance ≥1000MΩ(500VD.C)
Dielectric Strength1000V(AC.RMS)1min
Output Smoothness

≤±0.10%

Mechanical:
Mechanical Travel Theoretical electrical stroke+8mm±2mm
Work Force≤7.2N
Environmental:
Life Expectancy20×10E6
Operating Temperature-55°C~ +125°C
Vibration15G 2000Hz
Shock50G 11ms




Packaging & Shipping



.jpg


Company Information



Zhejiang HuiRen Electronic Limited Company is located in the center of the city Huzhou (Zhejiang, China) which is known as the pearl of South Taihu Lake. HuZhou has a facilitated transportation, with a number of National Roads, highways, railways, and waterways running across the city, it is conveniently connected to Shanghai, Hangzhou, Wuxi and Suzhou.

Our company is specialized in sophisticated electric eonducted plastic products such as precision angular-displacement sensors, precision linear displacement sensors and precision conductive plastic potentiometers. The products are widely used in the field of automation control and servo, such as military affairs, aviation, automobile, oil industries, machinery and mediacal instruments and so on.

Our company focuses on management in all aspects, adhering to the principle of satisfying customers and faithfully serving all customers.

We will provide you with our best products and services. Welcome!
