VMC855 Top sale fashion machine centre vertical type 3 axis cnc machine

specifications			VMC855
Table	Area	Unit	1000×550 mm
	T-slot	mm	5-18-100
	Max. load	kg	500
Travel	Moving range X, Y, Z	mm	850×550×600
	Spindle nose to table surface	mm	100~700
Feed	Rapid feed speed  X, Y, Z	m/min	36/36/30
	Feed speed  X, Y, Z	mm/min	1~10000
Spindle	Taper		BT40
	Speed	r/min	(AC servo) 40~8000
	Power	kW	AC servo 7.5
Tool magazine with capacity		qty	24
Min. time of tool change		sec	1.75/5
Accuracy	Positioning accuracy	mm	±0.005/300 JIS
	Re-positioning accuracy	mm	±0.003  JIS
Overall dimension		mm	2620*2260*2600
Machine weight		kg	5500

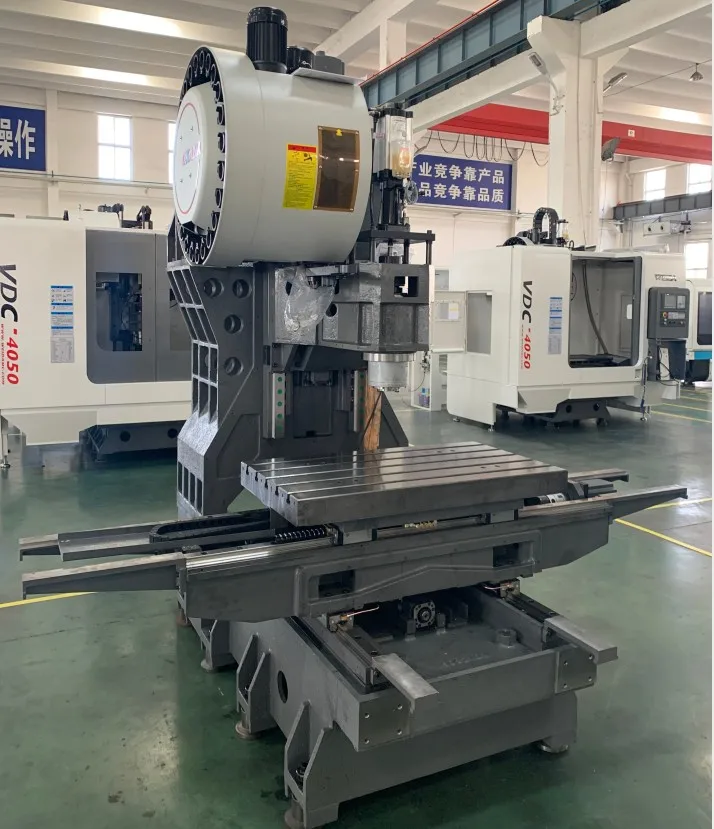

VMC855 is composed of base, column, middle sliding saddle, table, headstock, operation panel, tool magazine, pneumatic system, lubricant system, cooling, lighting, protection system, CNC system, electrical system.

 International advanced linear rolling guide way pair are adopted on X, Y shafts, which is high rigidity, heavy-load, low friction; driving lead screw is heavy-load, low friction, high accuracy ball screw, spindle speed range is 40~8000 rpm,rapid speed is 36/36/30m/min. Timing and fixed quantity lubricant system is equipped, which prolongs the working life of machine, totally enclosed protection device is adopted, which assures the safety of worker and lustration of environment.

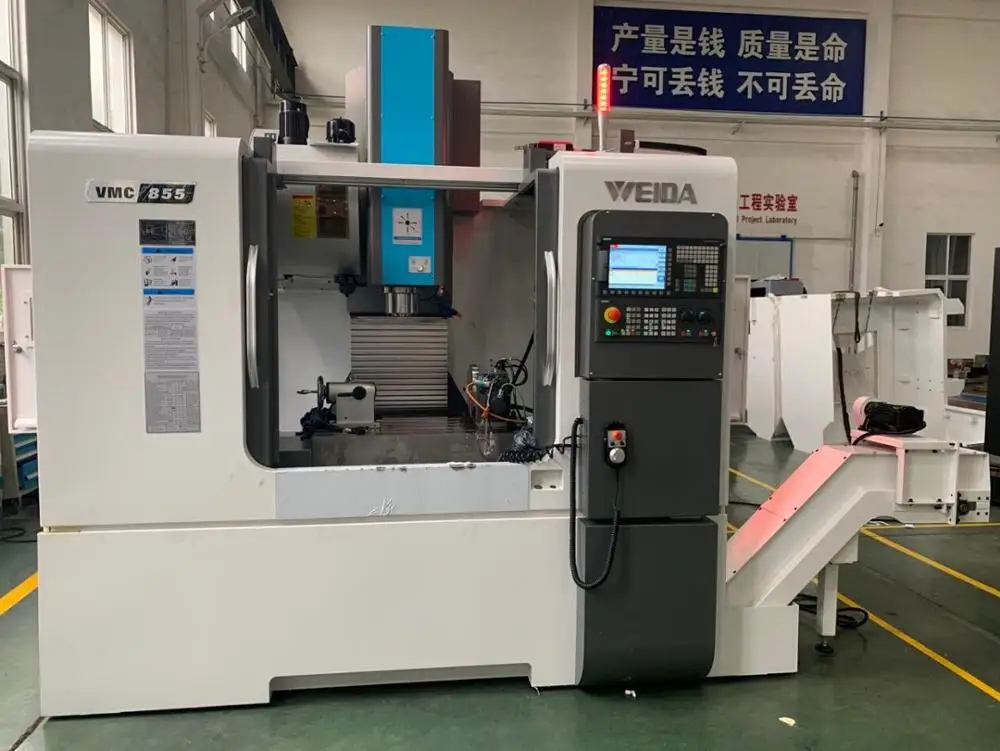

Machine model: VMC855 new appearance vertical cnc milling machining center

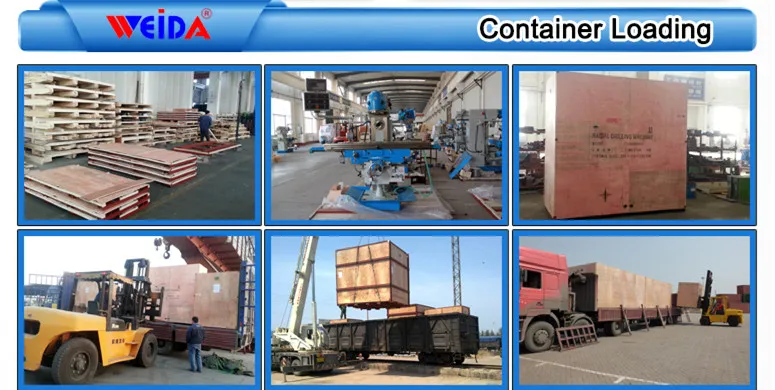

Type of package: Plywood case

Packing dimension:

289X228X255CM

Suitable Container and quantity:

40 High container:  4sets

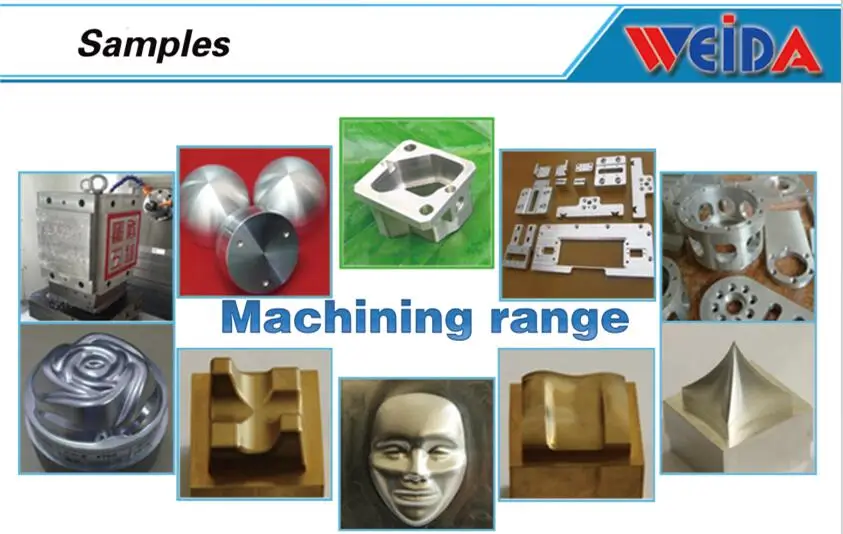

Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams, molds, connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc., for the processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and machining center can meet the basic processing requirements.

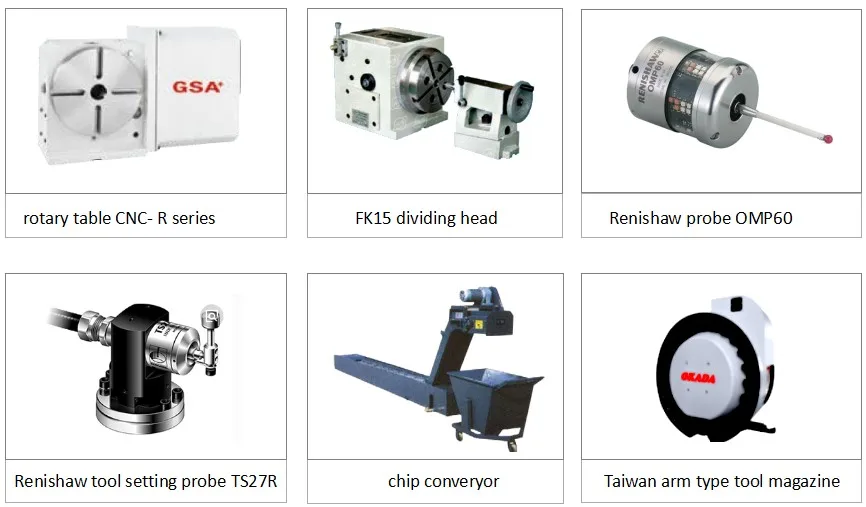

Optional accessories

VMC855 can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.

All our machines have been passed CE certification,such as cnc vertical center machine,vertical machining

center,drilling machines etc.. Besides, we also have ISO9001 certificate. Our company complys with European standard. We always export our machines to European market,such as Poland, Russia, Italy, Germany,America etc.

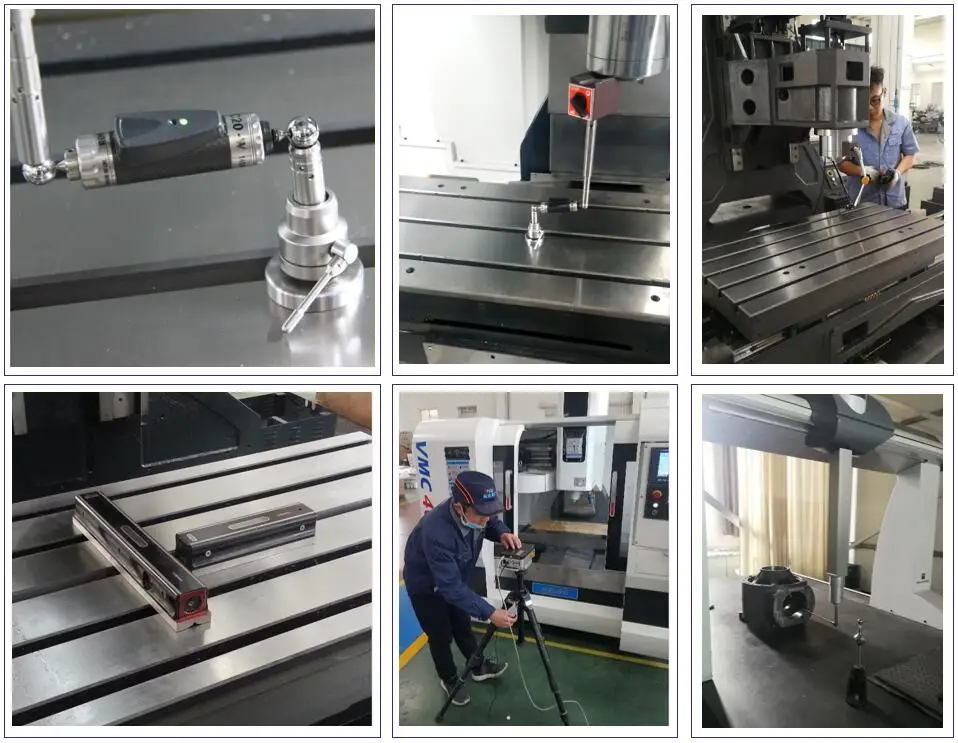

We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine,Shanghai cnc gantry guide rail grinding machine, Beijing cnc gantry type boring milling machine and automatic powder coating line .Besides, Cnc machine tool project laboratory with with advanced testing equipments is built for quality control.

Shandong Weida Heavy Industries co., ltd. is a large scale joint enterprise with the right of import&export.It covers an area

500,000 square meters,the building zone is about 350,000square meters,and the total assets is more than RMB500million,

there are 365 engineers and 632sets of production equipment&measuring test instrument in the company.

 We are the biggest manufacturer of machine tools in the south of Shandong Province. Our main products have developed to

 8 series:cnc gantry type machining center,horizontal boring machine,radial drilling machine, 3 axis cnc machine ,

universal knee type milling machine,vertical milling machine, milling drilling machine,altogether more than 90 specifications.

 We also have passed through ISO9001:2008 certification of CQC,and got CE certificate in 2006.

 Shandong WEIDA heavy industries Co., Ltd.wish to cooperate sincerely with friends at home and abroad to realize mutual

development.

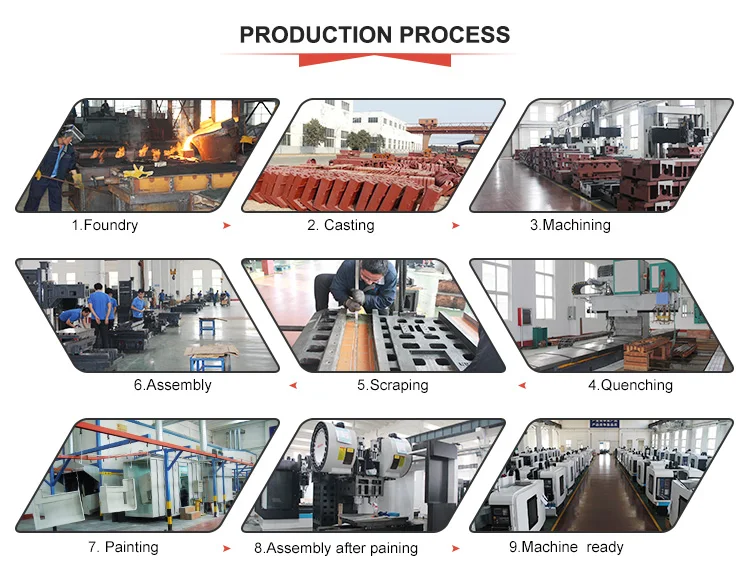

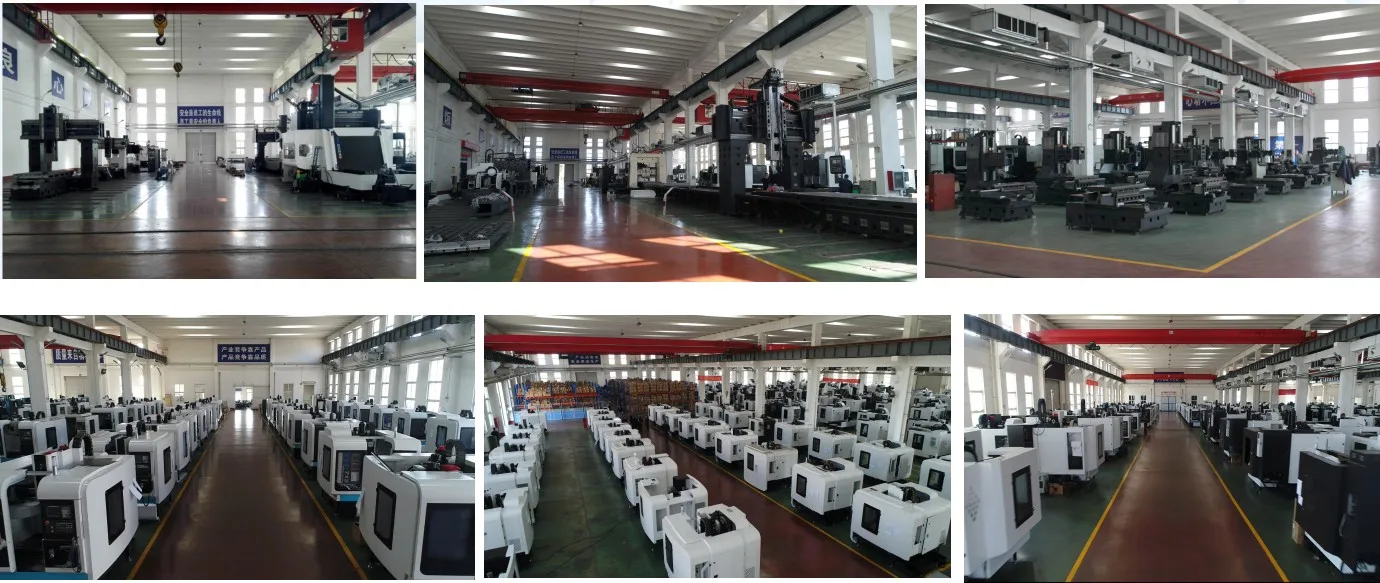

We have different workshops to produce different machines,it mainly includes cnc workshop,milling machine workshop, radial drilling machine workshop,processing department etc.

For cnc workshop as above, we will produce vertical machining center,gantry type machining center,horizontal machining center,cnc vertical center machine etc.. Every year we will produce hundreds of machining centers for abroad customers. Our brand is well-known in many markets. And in every exhibitions in home and abroad, we will avertise them. And we get great effect from exhibition.
