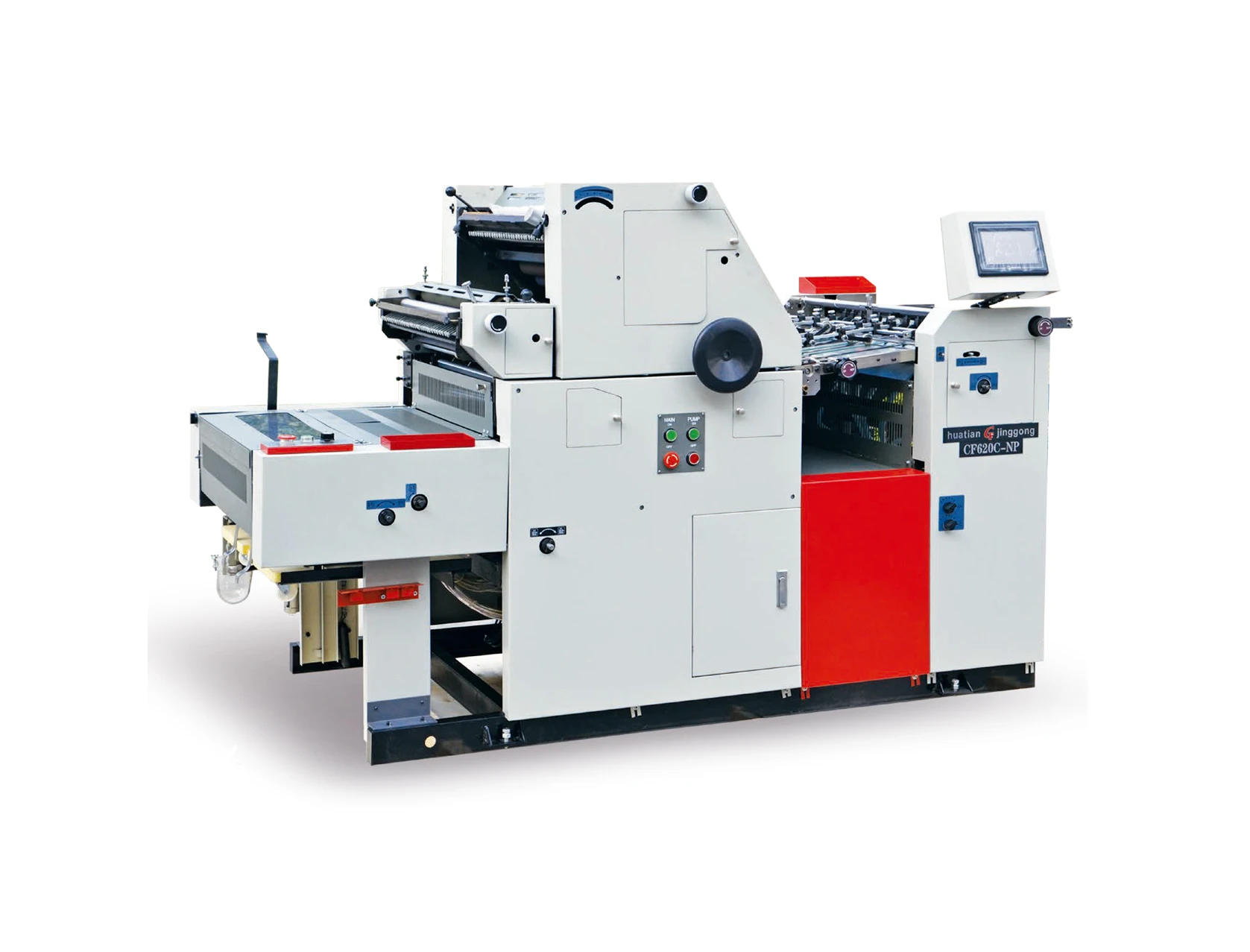

CF620-NP  automatic A2 SIZE single color mini offset printing machine

Instructions:



    This offset press is  made with fine workmanship on the basis of high quality 47-series,

in addition to all the functions of 47series,they have improved inking system, more form rollers and

vibrating rollers, uniform ink distribution can ensure high printing quality needed for full printing,

make short run color printing simple, easy and smooth, the printed products are more beautiful.

So they are economical and practical printing machines.



Character and advantage :



1.Applicable scope:   This machine is suitable for schools,hospital,Medium and small companies etc.

2.Products: business forms,exam papers, prescription sheet,NCR(carbonless)bills,notebooks,exercise book etc.

3.consumable items:  paper from 17-250gsm,normal 1.95mm blanket,common aluminium plate.

4.Main fuction:    Printing,Numbering,perforating can be finished at a time.

5.Main parts:

  a)much thicker and heavier cylinder Pressure NO PROBLEM!

  b.)cast iron wall and metal case hardening and galvanized .

  c) gears and bearings hardened.

  d)electric apparatus.Panasonic PLC,Taian Converter.Mikom sensor. Automatic controll system.

6.automatic system:  Feed system/Inking system/numbering system/delivery system:Auto-feeding system,double sheet sensor. Auto damping and inking device/numerbing perforating 2 in 1./delivery auto up and down system.

7.Operation:   We send the manual and videos. If possible we can send the techician.

8.Aftersale service: The machine have a year warranty. We send as many spare parts as possible.



Parameter:



Model No.	CF620-NP
Maximum printing area	605X440mm
Maximum paper size	620X450mm
Minimum paper size	180X260mm
Paper type	17-250gsm
Number of ink rollers	Main machine system :14 pieces (3 form rollers) NP system 6 pieces 2 form rollers
Number of dampening rollers	4 pieces (1 form rollers)
Minimum space between codes	Vertical code:vertical 71mm horizontal 48mm	Gripper edge 25mm
	Horizontal code:vertical 47mm  horizontal 60mm	Gripper edge 25mm
Registration mechanism	Roller type side lays
Printing speed	2000-8000 sheets/hour
Motor power	Main motor: 1.5KW/220V	Air pump motor:0.55KWX2/380V
Machine size	2280(L)X1100(W)X1400(H)mm
Weight	1100KG



Sample list :



   This machine could do the 1-4 color print work and number work in the NCR paper ,woodfree paper  and offset print paper .it is suitable for the book print. notebook print/invoice and check book print and so on.







Spare parts :

    Most of the spare parts is made by our company, so we could control the quality for the spare parts, and the main electric parts, we imported from japan ,america and german.







 Delivery :

     We could arrange the delivery within 20 days after we get the deposit.



 FAQ:

1.Question: Are you Manufacture or Trading Company?
Answer:We are manufacture for the offset printing machine for about 12 years. And we have customer in about 60 countries.we have the4 color offset press, collate machine . Uv coating and spot uv machine. computer paper production  line ,folding machine. Binding machine ,die cutting machine and flexo graphic machine .



2.Question: what is your payment term and delivery time ?Answer: we accept TT,30% prepaid as deposit, and before we delivery the machine, you need to pay us the balance . We could arrange the delivery within 10-30 days after we get the deposit.
