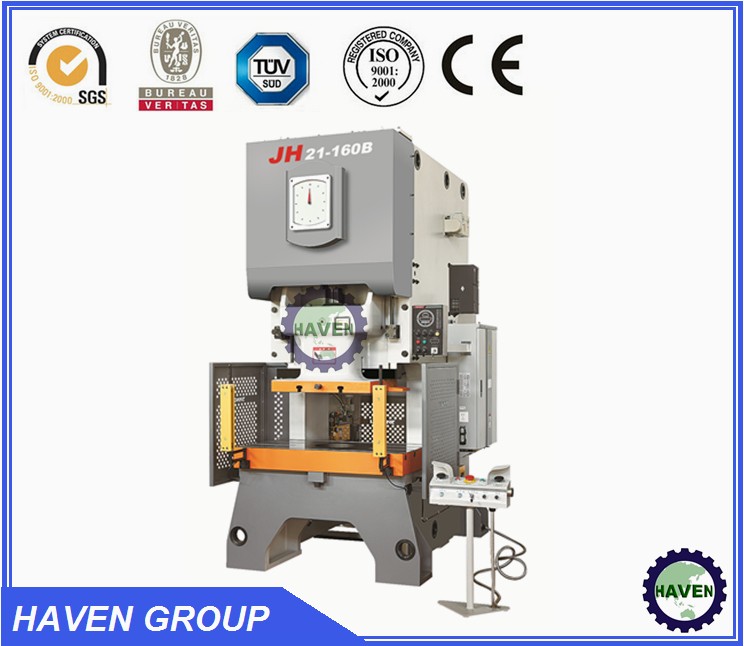

200 ton power press for sale Press With Fixed Bed power press machine

Main motor is made by Siemens.

Adopts combined pneumatic friction clutch and brake.

Cluster gear adopts the flooding oil lubrication.

 Six-face rectangle lengthen guide; JH21-315B/400B adopts eight-face lengthen guideway.

 Equipped with hydraulic overload protecting device.

JH21-25/25B/45 adopts manual shut height adjustment,among these types JH21-25/45 adopts scale display and JH21-25B with digital display.JH21-63 and above type adopts electric shut height adjustment with digital display.

JH21-45 can equip with die set height adjustment motor, the value will be displayed by digital.

 JH21-25B, JH21-45 and above type equipped with balance cylinder.

Duplex valves imported.

Electric compelling grease lubrication system.

 Balancing cylinder adopts manual lubrication system.

One set of blowing device.

 Controlled by PLC with international brand.

 Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.

Equipped with optional air cushion device, automatic feed shaft and photoelectric protector,which can used to work with various automatic equipments.



			JH21-160B	JH21-200	JH21-200B	JH21-250	JH21-250B	JH21-315	JH21-315B
Capacity		kN	1600	2000	2000	2500	2500	3150	3150
Nominal Stroke		mm	6	6	6	8	8	8	8
Slide Stroke		mm	160	180	200	200	250	200	250
SPM	Fixed	min-1	40	35	35	30	30	30	30
	Variable		35-50	30-40	30-40	25-35	25-35	25-35	25-35
Max. Die Height		mm	350	390	450	430	500	430	550
Die Height Adjustment		mm	110	110	110	120	120	120	120
Between Slide Center & Frame		mm	380	390	390	420	420	420	460
Bolster (FB×LR)		mm	740×1300	760×1400	760×1400	800×1400	800×1400	800×1400	880×1600
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)		mm	φ300×50×φ260	φ300×50×φ260	φ300×50×φ260	φ320×50×φ280	φ320×50×φ280	φ320×50×φ280	φ320×50×φ280
Bolster Thickness		mm	150	160	160	170	170	170	200
Bolster Opening (Dia./FB×LR)		mm	φ470	φ470	φ470	370×570	370×570	440×580	440×580
Slide Area (FB×LR)		mm	580×770	600×800	600×800	650×850	650×850	650×850	700×950
Shank Hole (Dia.×Dpth)		mm	φ65×85	φ65×90	φ65×90	φ70×90	φ70×90	φ70×90	φ70×90
Between Columns		mm	850	870	870	960	960	920	920
Main Motor Power		kW	15	18.5	18.5	22	22	30	30
Outline Size (FB×LR×H)		mm	2280×1550×3240	2500×1580×3320	2500×1580×3420	2730×1640×3550	2770×1700×4060	2770×1650×3550	2850×1700×4450
Net Weight		kg	14500	17000	17350	23500	24500	25000	28000
