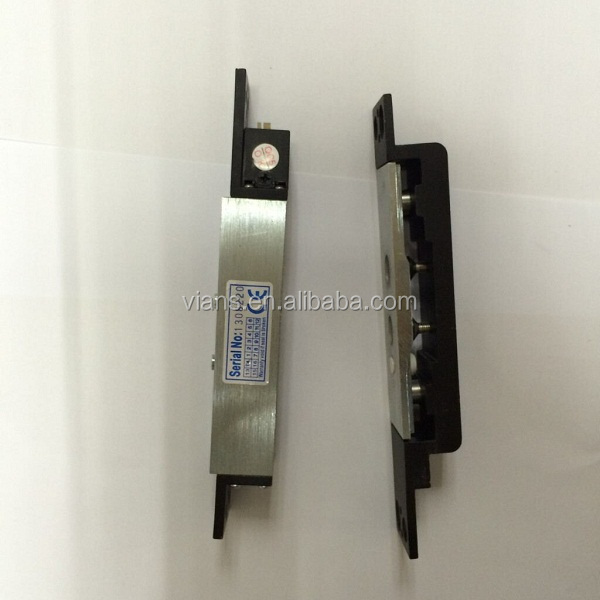

2600Lbs(1200kg) Electro Magnetic Shear Lock (VI-125)

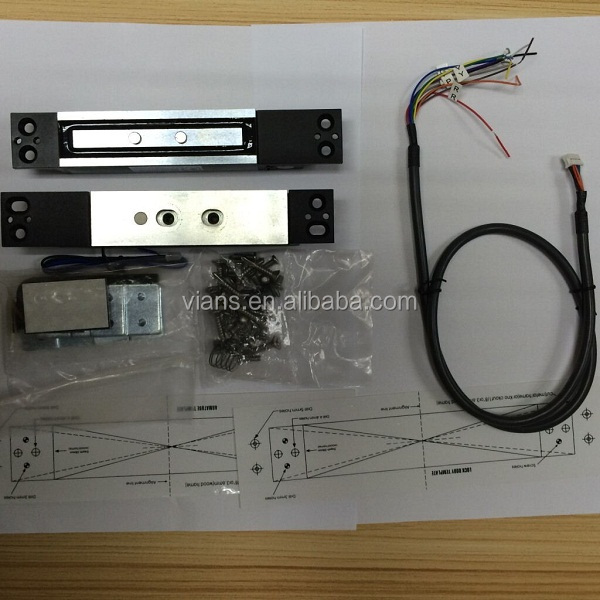

 The shear lock comprises of a lock bolt and a shear keeper and operates through use of an electromagnet. To lock the door, the armature plate with its shear keeper is attracted to the electromagnet that has the lock bolt. The lock bolt fills the holes in the shear keeper resulting in a mechanical locking action. This lock has a high physical shear holding force. The design of shear locks utilizes the holding force of the electromagnet differently to that of an electromagnetic lock

  The locking mechanism is totally concealed providing discrete security while the lock supports both electromagnetic lock and electric dropbolt feature.

Technical Details

Model	VI-125
Power supply	DC 12-24V±15%
Operation Current	900mA
Holding Current	220mA @12VDC mA±5% , 190mA @24VDC mA±5%
Delay Time	0.5-2.5sec.
Holding Force	2600Lbs(1200kg)
Lock status sensor	NC & NO output (1A @30VDC)
Lock Size	182L x 30W x 25D(mm)
Armature Plate	182L x 30W x 23.6D(mm)
Magnetic distance(max.)	3mm@12V / 5mm@24V
Indicator	Double colored LED light
Weight	1.2kg

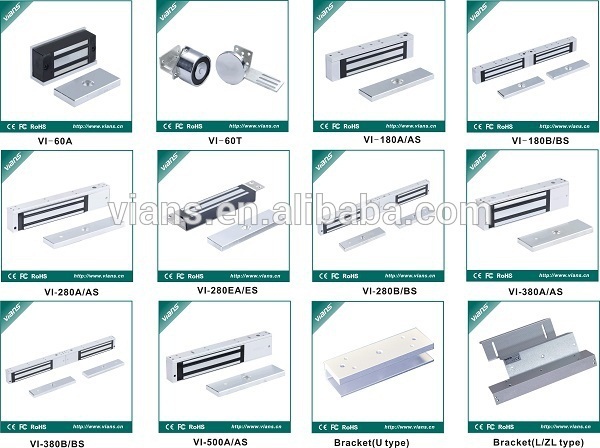

Related Product
