FX shutter door roll making mill made in china



















Product Description

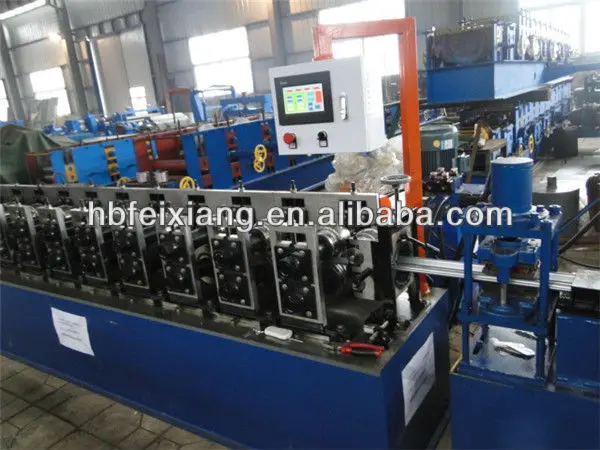

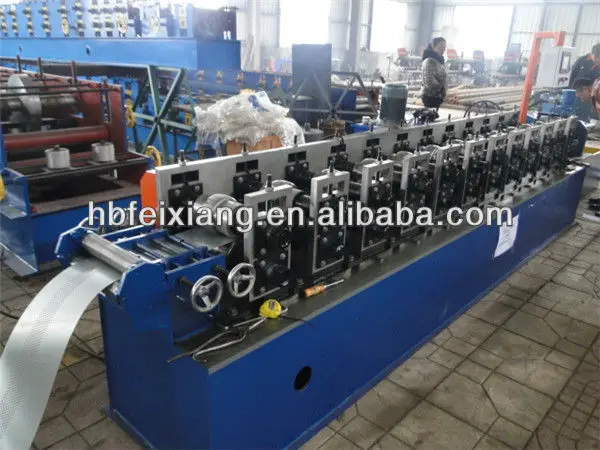

 The type of our machine:

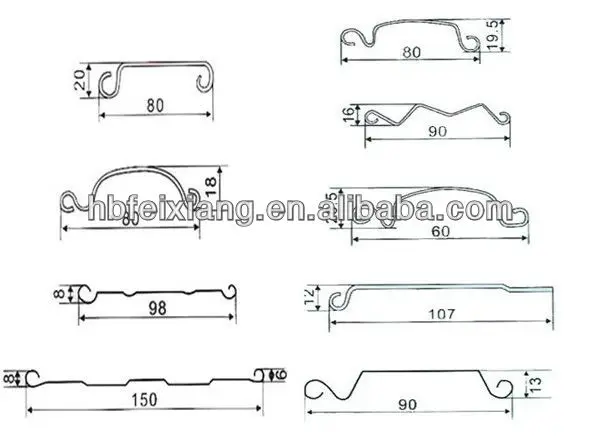

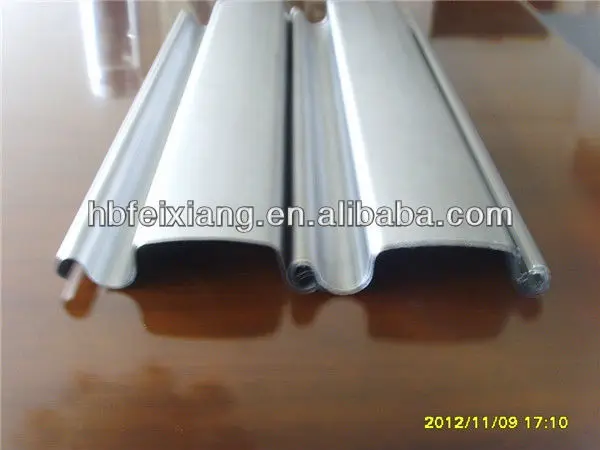

shutter door profile.jpg





The parameters as follows:








































































































1



Model No.



shutter doorroll forming machine



2



thickness



0.3-2mm



3



Coli material



GI



4



The bearing capacity of manual decoiler



1.5 tons



5



shaft material



45#steel



6



Out diameter



40mm



7



numbers of forming steps



12 stations



8



transmission



Gear transmission



9



Forming speed



20m/min



9



main motor power



5.5kw



10



voltage



380V50HZ Three-phase



11



dimension



4.2*1.2*1.55



12



cutting



hydraulic cutting



13



blade material



Cr12  steel with quenched treated 60-62°c



14



control system



PLC(Delta)



15



length tolerance



±2mm



16



weight



3.2t



17



spare parts



1 easy damaged parts: conk 2pcs, fuse-link 4pcs


2 rubber mat: 1 pcs


3 bolt spanner: 1 pcs



18



The whole line including: Manual decoiler, roll forming machine, hydraulic station,


hydraulic cutter, PLC control system, run-out table.










Working flow:





 Decoiling--active feeding---forming---measuring lengh---cutting---product to stand








The main equipments:

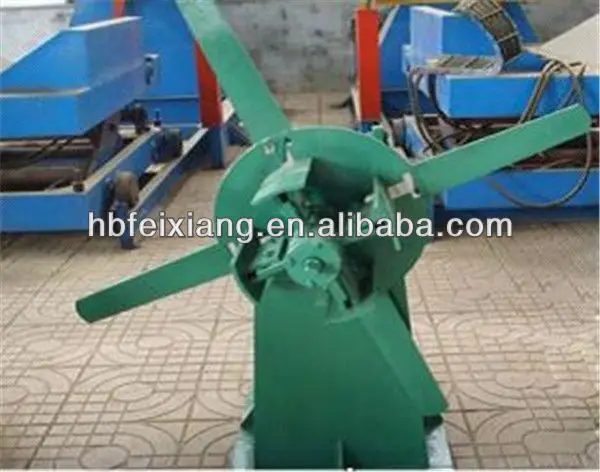

1 Decoiler,used to load coil,the capacity is 5t.

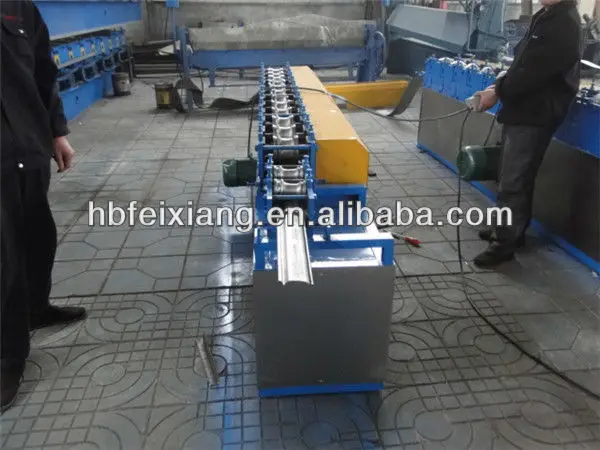

2 forming machine,the forming speed is about 20m/min.
























3 The cutting device.





.jpg

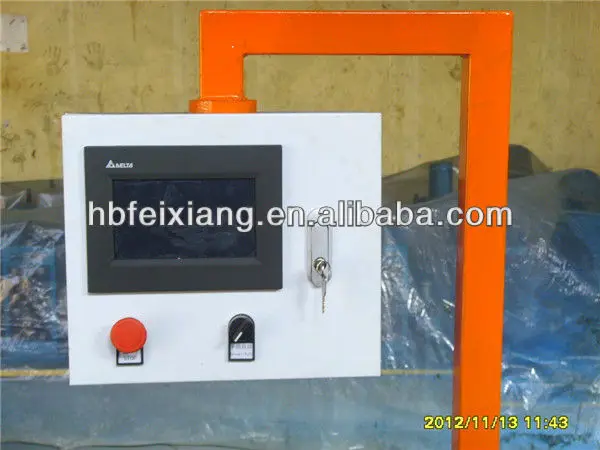

4 controlling device,PLC controlling.

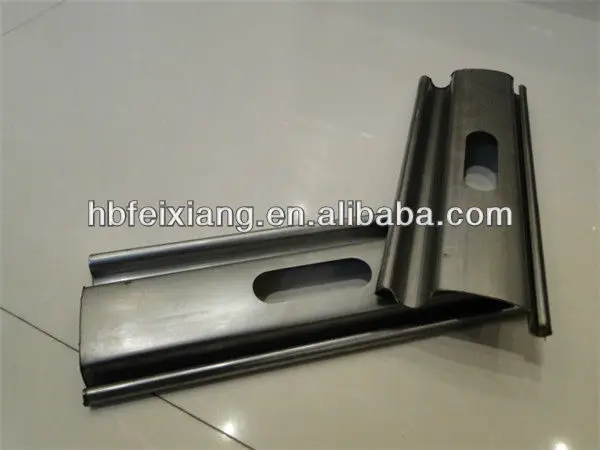

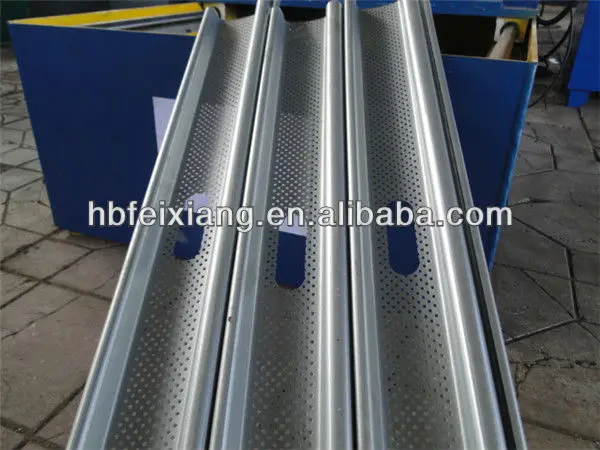

the production:




















the certification:





iso1CE



Company Information




        Feixiang roll forming machinery is a china manufacturer of metal steel cold roll forming machines, bending machines, cutting machines, and slitting machines. It is a division of its parent company, Xingbo International.


        Feixiang was founded in 1997 and is the oldest roll forming machine maker around today in the north of china. Its history includes the first double layer color steel roll forming machine,the first high speed interchangeable C U keel roll forming machine,the first gear drive with water cooling cable tray roll forming machine created by Mr.Fu in 2005.


        In 2013,they first successfully developed high speed rotary punching machine ,which highest speed could be 100m/min,makes the company got government recognition.


        The company marketed overseas its first roll forming machine in 2006 and  established relations of cooperation with customers from over 80 countries all around the world. Feixiang has built up a reputation for designing high-quality, high-speed ,safe and cost-effective cold forming and bending equipment .


They have become a status symbol for high productive capacity and the safe and easy operate. The company is synonymous with technical and has been involved with several famous international exhibition since 2008.


        The company currently has 2 invention patents, 1 utility model patents,has been accepted by the 1 invention patents, 2 utility model patents.  Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy" .










Contact Us


If you are interested in our products,and want to know more details,


you can click the link below and send us your inquiry.


we will reply immediately.
