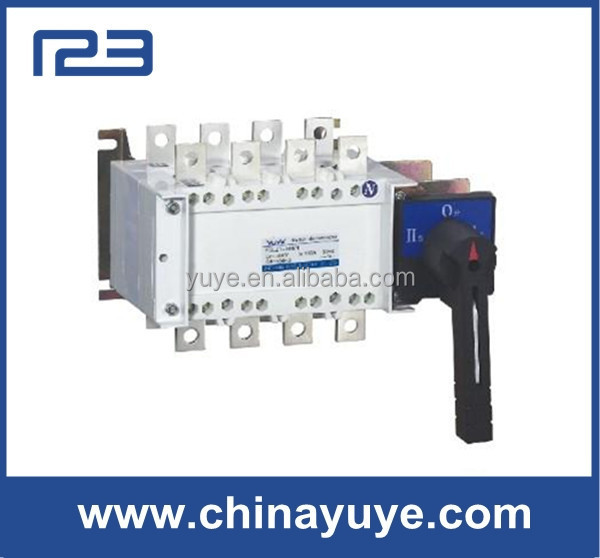

3-х позиционный ручной 200A переключатель передачи для генератора переключателем МТС

3 Position Manual 200A transfer switch panel for generator change over switch MTS 630Amp

General

YGLZ1-125-4000A. The load isolation switch is suitable for the changeover of two sets of low voltage electric or the changeover of 2 sets if on-load devices or safety insulation.

• Mode of operation:
• Direct operation: handle is installed on the switch

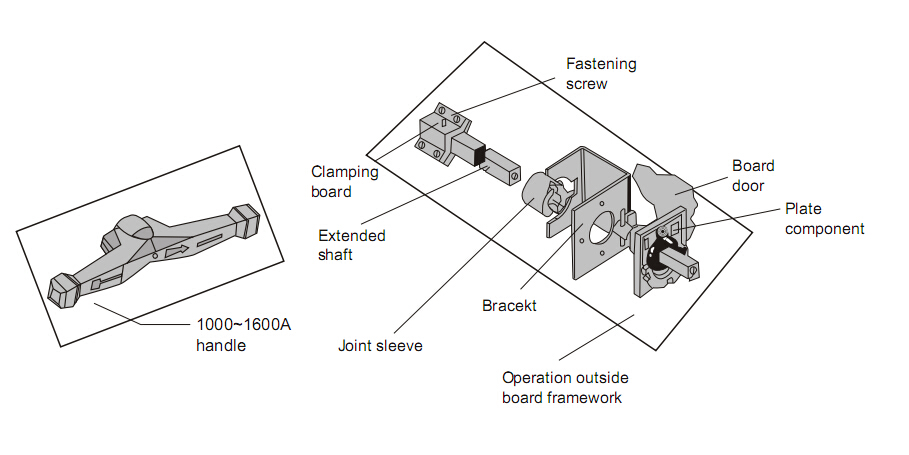

• Operation outside the board: handle is installed outside the door of power distributing board.
• Products with observation windows can be provided according to the demand to observe directly the on and off state of contact.
• The products have three poles, four poles, and (three poles+on and off netural pole).
• Extended shaft is used for the operation outside the board.
• Two sets of auxiliary contacts can be assembled according to the demand.

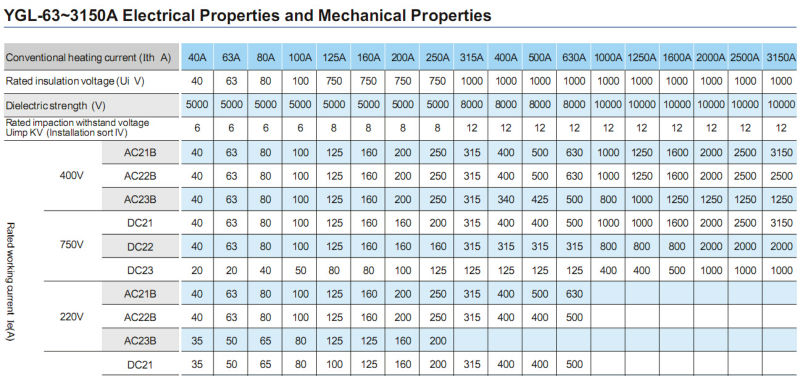

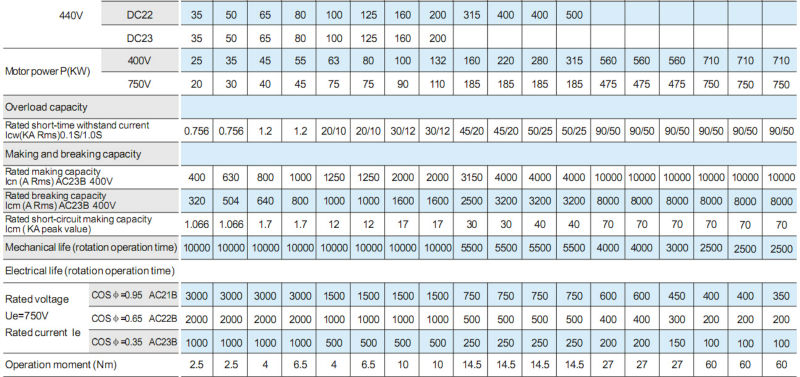

• Mechanical property and electric property correspond to the mechanical property and electric property of YGL-125-4000A
• A bridge can provided to connect the inlet or outlet terminal of the switch.
• Note: The bridge connection is chosen, an explanation is needed to indicate the inlet or outlet is connected with it.
