Клапаны Диспенсера для напитков Заглушка вентиляционного отверстия распределительный клапан

Описание и отзывы

Характеристики

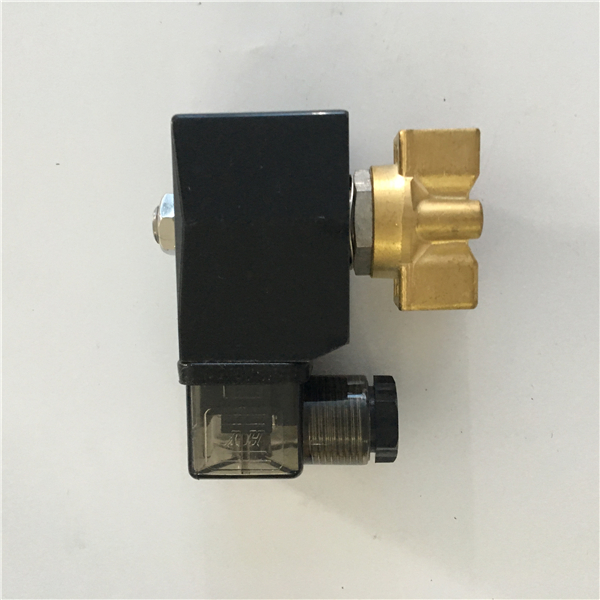

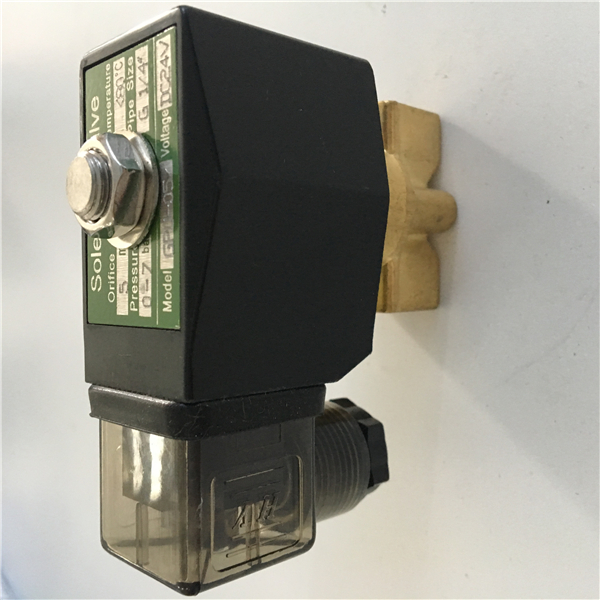

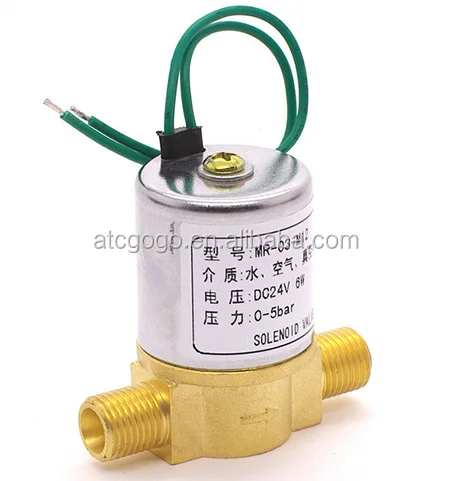

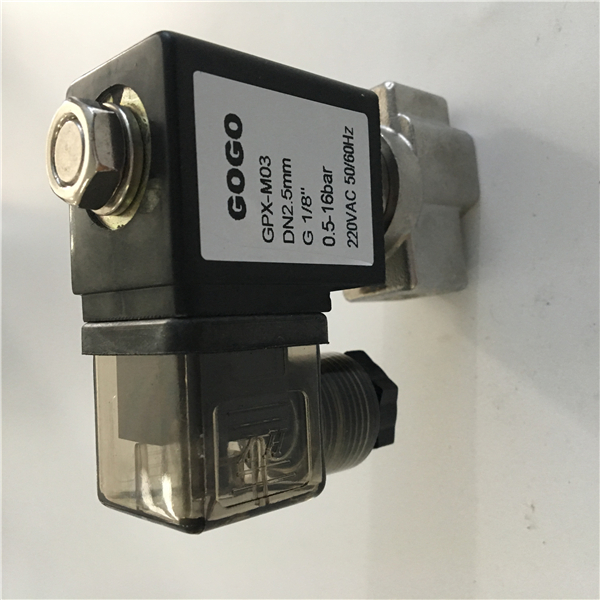

drink dispenser valves air vent plug shower diverter valve

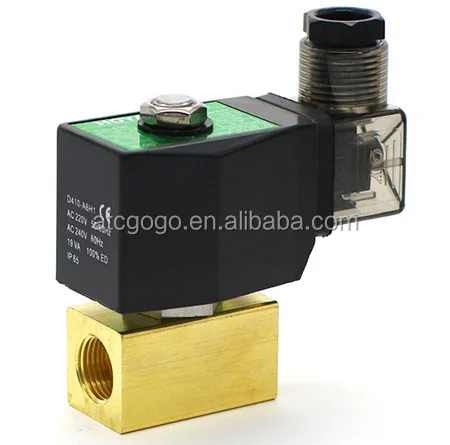

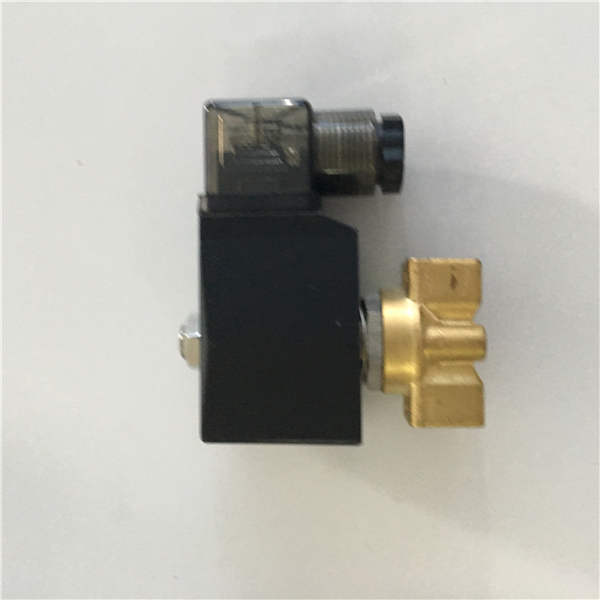

1. Brass ;

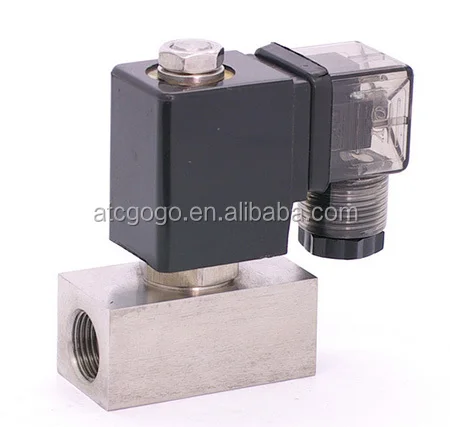

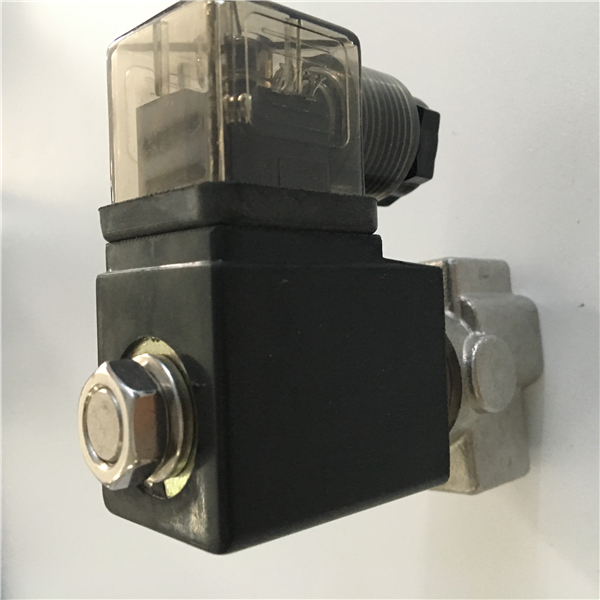

2. Stainless steel .



Specification



Pattern:	Two-port two-position
Principium:	direct acting type
Control mode:	normally close
Valve body:	brass
Diaphragm material:	NBR: ≤80°C ,FKM≤150°C
Working pressure:	0~10bar
Max pressure:	10bar
Voltage:	AC220V AC110V DC12V DC24V
Medium:	Air ,water ,Liquid ,oil ect.
Application:	Gas protection welder, various types of burners, test equipment small-flow air water control system



Model	Pipe	Orifice  Diameter(mm)	Principium	CV	Body  material	Seal	Work Pressure
MI-03	1/8" 1/4"	3	direct acting	0.3	Brass , SS304	NBR,FKM	0-13bar
MI-04	3/8"	4		0.58		NBR,FKM	0-7bar
MI-05	1/2"	5		0.65		NBR,FKM	0-5bar
MI-08	1/2"	8		1.2		NBR,FKM	0-1bar

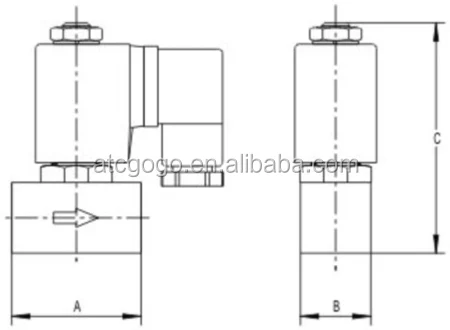

Dimensions

(mm)



1. How to Order?



Normally the customer can order our products by Alibaba platform or contact  us representative by Email. After receiving your message, our sales will confirm with you about the specification or other required things, then we will send an official invoice to you via mail, which will be included the details of your order and bank information stamp and signed by manager.

Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok





Materials of construction
Parts in contact with the medium
Valve of body		Brass	SS304
Seals		NBR ,EPDM ,FKM
Magnetic isolation pipe		SS304
Core		Stainless steel alloy
Spring		SS304
The shading		Copper
