V-REFLEX™ Reflective Material- RT-HW254000-FLY
Fluorescent Lime-yellow Reflective Ribbon
Fluorescent Reflective Ribbon consists of a grey stripe with wide angle, exposed retro-reflective lenses laminated to the center of a durable polyester fluorescent backing. When properly used, Reflective Material helps enhance the visibility of the wearer in nighttime or low-light conditions when illuminated by a light source such as headlights. And provide high visibility performance in daytime.
Features
Ÿ Approved to EN ISO 20471:2013
Ÿ Fluorescent yellow fabric with reflective stripe, High visibility eyes catch reflectivity
Ÿ Webbing Color: Fluorescent Lime-yellow
Ÿ Reflective Stripe Color: Grey
Ÿ Reflective Color: White
Ÿ Reflective Trim Material: Polyester
Ÿ Glass bead technology
Ÿ For sew-on application
Ÿ Home Washing: 25 Cycles at 40°C per ISO 6330
Ÿ Dry-Clean: N/A
Ÿ Bleach: N/A
Ÿ Note: V-CAN provide dry-clean reflectivity material as well
Retroreflective Performance
Fluorescent Reflective Ribbon coefficient of retro-reflection (RA, in cd/lux/m²) is measured by methods traceable to either of the following retro-reflective intensity testing procedures:
ASTM E809-02 and E810-03 (RA)
CIE 54.2: 2001 (R’)
The coefficient of Reflective part exceed the minimum retro-reflectivity requirements in according to EN ISO 20471 and ANSI 107 level 2 as table.
V-REFLEXTM Fluorescent Reflective Ribbon | ||||
Entrance Angle | Observation Angle | Average RA | Minimum RA | Reflected Color |
+5.0° | 0.2° | 500 | 330 | White |
Physical Performance
The reflective part on the Fluorescent Reflective Ribbon meets or exceeds the following performance characteristics.
V-REFLEXTM Fluorescent Reflective Ribbon | |
| |
Specification | Test Method |
Abrasion: RA ≥ 100 | EN 530 Method 2, 5000 cycles |
Flexing: RA ≥ 100 | ISO7854 Method A, 7500 cycles |
Cold Fold: RA ≥ 100 | ISO 4675, -20 °C (-4 °F) |
Temperature Cycle: RA ≥ 100 | 12hours @ 50°C (122°F), 20hour @ -30°C (-22 °F) |
Wet Reflectivity: RA ≥ 100 | ANSI/ISEA 107-2004, Appendix A |
Performance
While use of Fluorescent Reflective Ribbon for clothing enhances visibility, no reflective material can guarantee absolute visibility, particularly in adverse weather conditions. Performance will vary depending upon actual use, exposure conditions and maintenance. Users should test reflective material to satisfy conformance to their own requirements.
Application

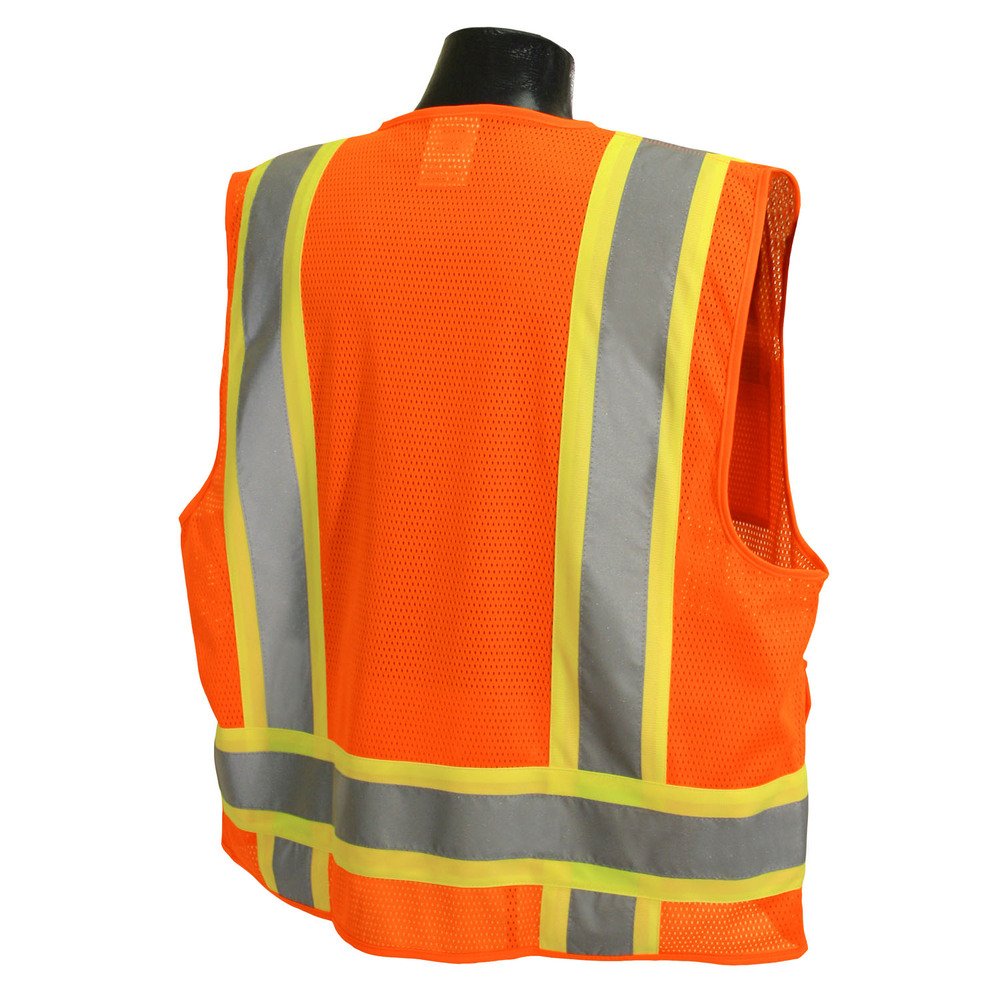

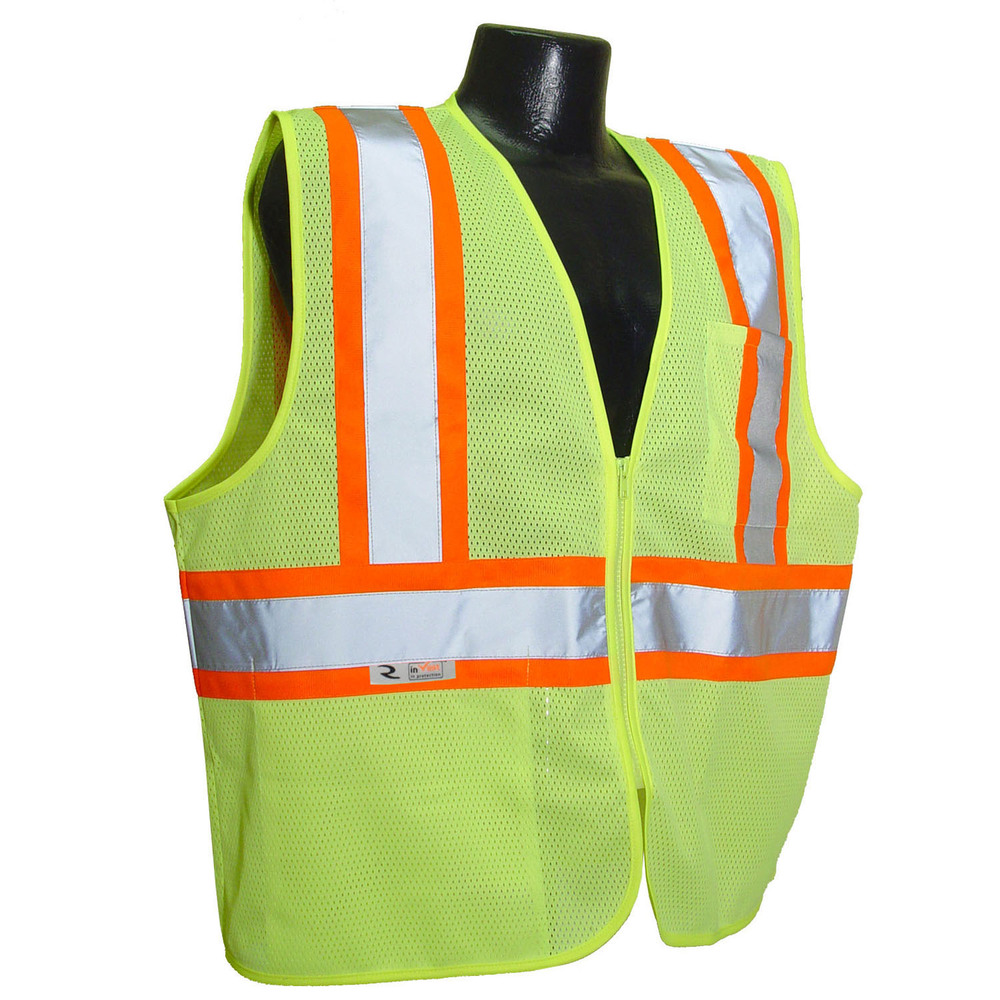

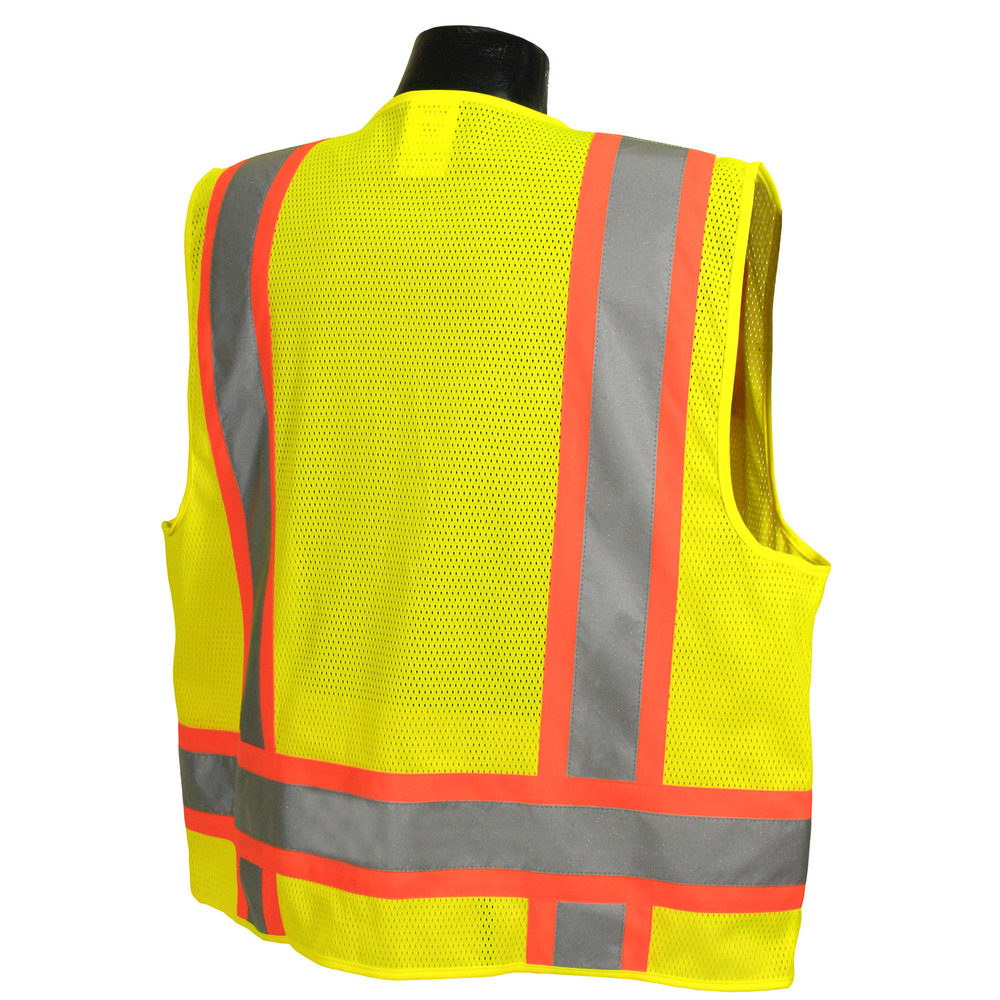

Fluorescent Lime-Yellow Retro Reflective Ribbon can be used to sewn on safety clothing and work uniform to enhance the visibility at low-light condition, like night and lowlight. If people work at a complex place, it is necessary to choose a good quality reflective tape applying on their clothing. Our Reflective Tape can use on hat, glove, bag and so on.
