Product Description

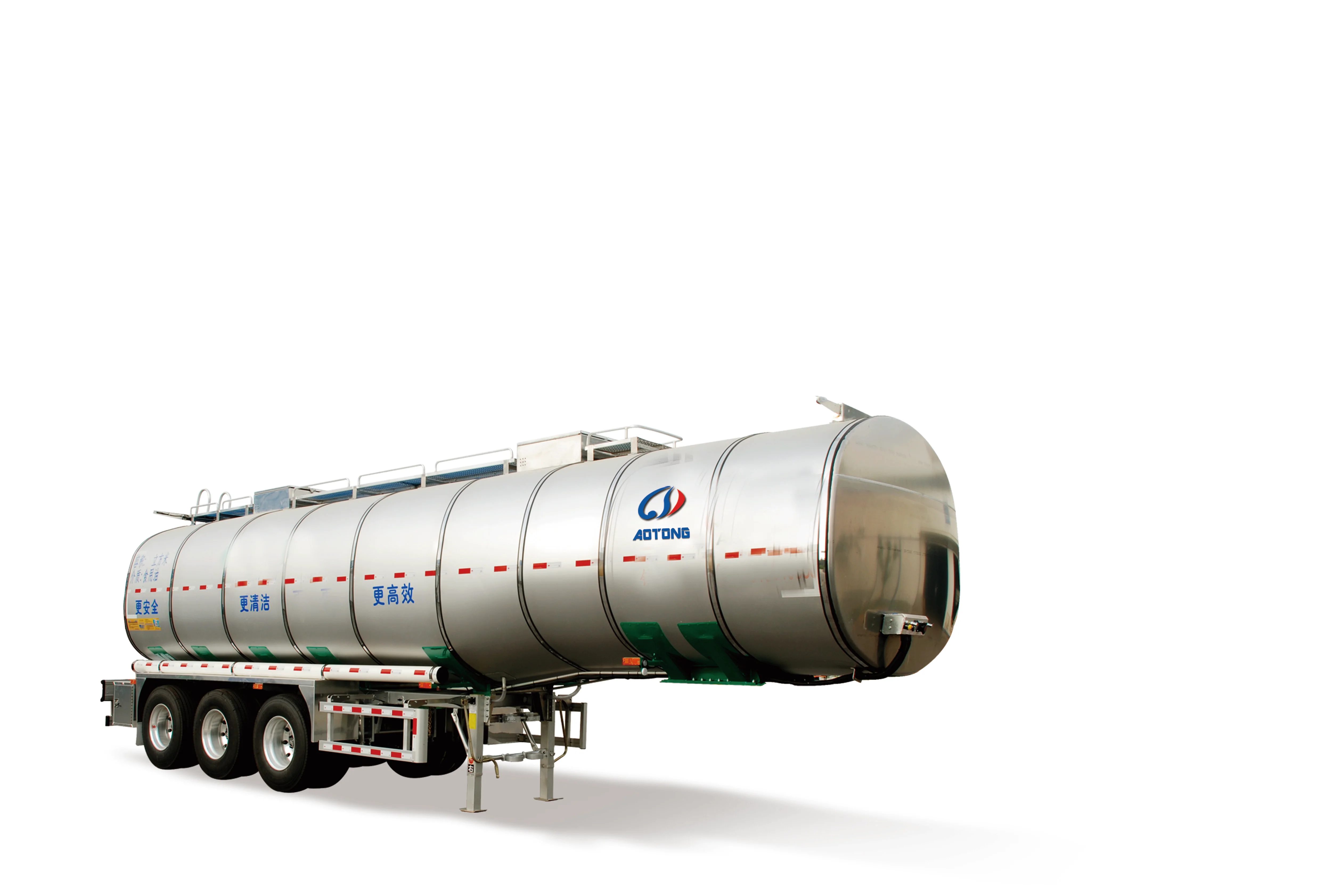

| Product Name | 40000-60000L Tri-axle Aluminum Tanker | ||
| Overall Dimension(Lx W xH)(mm) | 11900x2500x3900mm | ||
| Tank capacity( CBM ) | 40000L to 60000L | ||
| Loading Weight( KG) | 45 Tons to 70 Tons | ||
| Medium | Fuel/other liquid(corrosive materials) | ||
| Tank body thickness(mm) | carbon steel Q235 5mm steel | ||
| End plate | carbon steel Q235 6mm steel | ||
| Main beam | Opting for high tensile steel Q345B welded by automatic submerged-arc processes | ||
| Axle Brand | BPW/FUWA/ZY 13ton axle | ||
| Axle Number | 3 or 4 | ||
| Compartment | 3-9compartments as customer need | ||
| Manhole covers | 500mm manhole cover .3 sets with 3 breather valve. | ||
| Discharge valve | 4'change into 3' | ||
| Dischage pipe | 4'seamless steel tube | ||
| Discharge valve box | totally-enclosed | ||
| Spill Discharges | 1at the rear | ||
| Bottom valve | 1 set | ||
| Ladder | Top ladder with handrail, side ladder(Standard) | ||
| Rear ladder | dismountable | ||
| Walkway | on the top | ||
| Pedal | anti-skid pedal | ||
| Suspension system | Independent stamping steel rigid suspension (Or air suspension) | ||
| Steel Spring | 10/10/10 leaf spring suspension 90mm width, 13mm thickness | ||
| The material of Main beam | The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm. | ||
| Tire Type | 12R22.5 | ||
| Traction Pin | 50mm/90mm | ||
| Spare Wheel Bracket | 2 pieces | ||
| Tool Box | 1 Standard | ||
| Brake System | Dual-pipe Braking system; Equipped with Pneumatic Type; Parking Brake | ||
| System or ABS: | CM2XL-4S/2K (Optional) | ||
| Brake Air Chamber | Four double and two single chamber | ||
