Features:

You can change pattern width by remote control during painting by controlling center air and horn air independently, resulting in reducing overspray.
You can circulate paints such as metallic paints which deposit in a short time.



HIGH ATOMIZATION
• Patented pre atomization nozzle technology
• High Transfer Efficiency with latest unique ANEST IWATA air cap technology
• Able to handle the most difficult water base and solvent borne fluid materials with minimum overspray

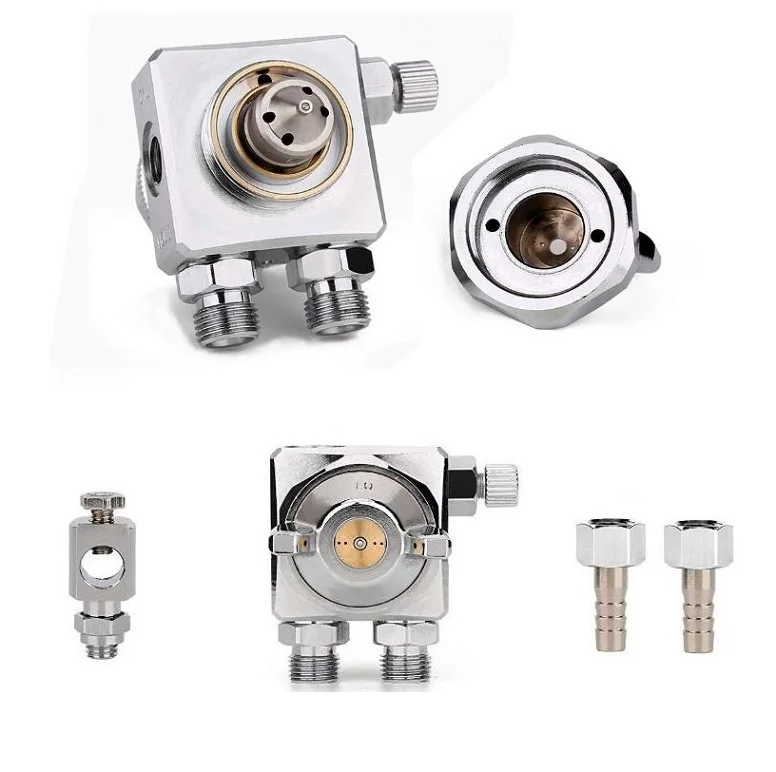

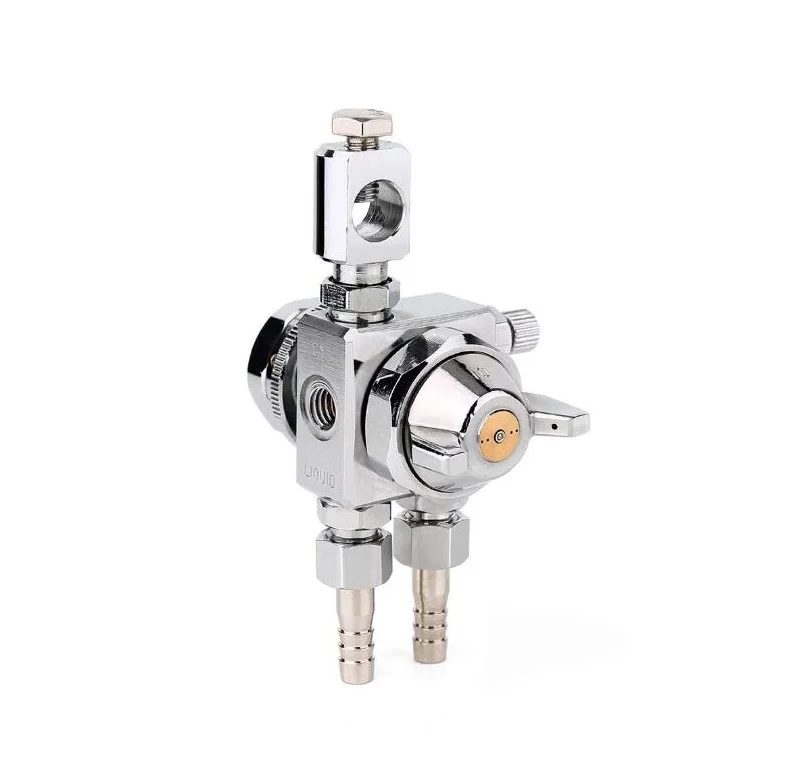

High quality pneumatic automatic spray gun St-5
Operating pressure:	2.5-3.0 bar
Spray style:	Fan shape or round shape
Optional nozzle:	1.0,1.3,1.5
Flow rate:	60-250 ml/min
Spraying width:	200-250mm

EASY TO USE
• No need to use solenoid valve: atomization and fan air close together with air air piston
• Two steps detachment technique: remarkable reduction of production downtime
• Quick air cap disassembly
• Index (90°- 180°) air cap
• 16 position fluid needle adjustment

EASY TO MAINTAIN
• Simple quick disassembling from manifold
• Fluid needle and air piston disassembled from rear of spray gun
• Needle packing with automating compensation of wearing
• Smooth stainless steel fluid passages to comply with all water based materials
