Factory Price Electronic Call Hospital Nurse Light Bell Button Wireless Nurse Call System

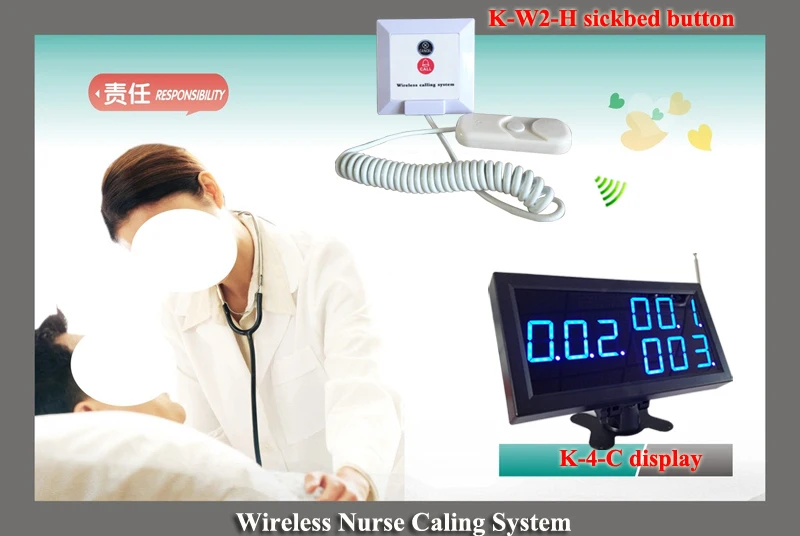

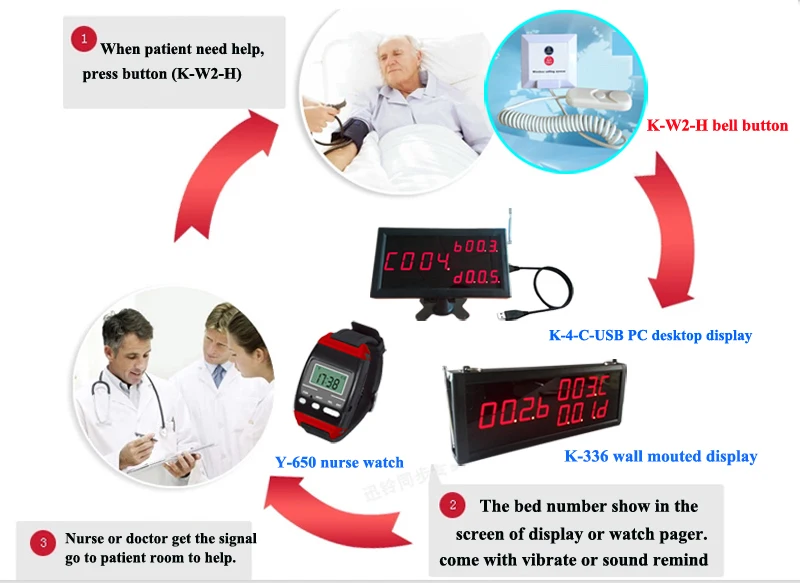

Wireless Nurse Call System is widely used in service area of , hospital, restaurant, hotel, café bar, casino and so on. It consist of table button for patient use and signal receiver for nurse use. When the patient needs any service, he or she just press the button , the bed number will be showed on the RECEIVER of watch or display screen with “red lighting sound or vibration. So the nurse could offer service very timely.

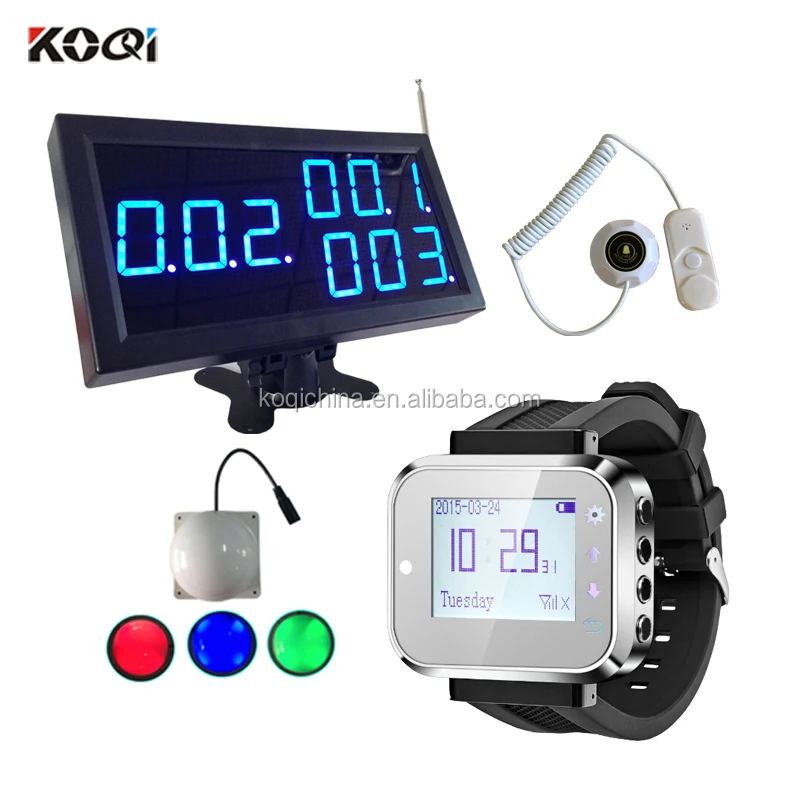

Components

The System consist the following parts:

-Receiver Screen

-Wristwatch

-Transmitter Button

-Room Light



Specification

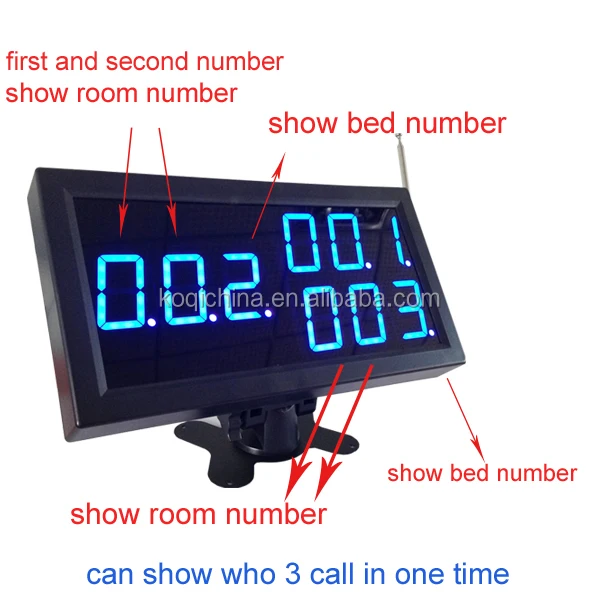

Specification of display of K-4-CBlue:
1 With high strength ABS shell, durable in use
2 Use digital code technology and the function is steady and reliable
3 Show 3-digit number
4 It can work with 999pcs 1-key or multi-keys call buttons in max
5 It can show different service type
6 It can show 3 groups of number at the same time
7 It can save 30 calling info in turn, and apply in basic service places.
8 Dimension: 282*150*34mm
Technical parameters:
Working voltage: DC 9V
Working current: <20mA
Working Frequency: 315MHz±75k / 433.92mhz

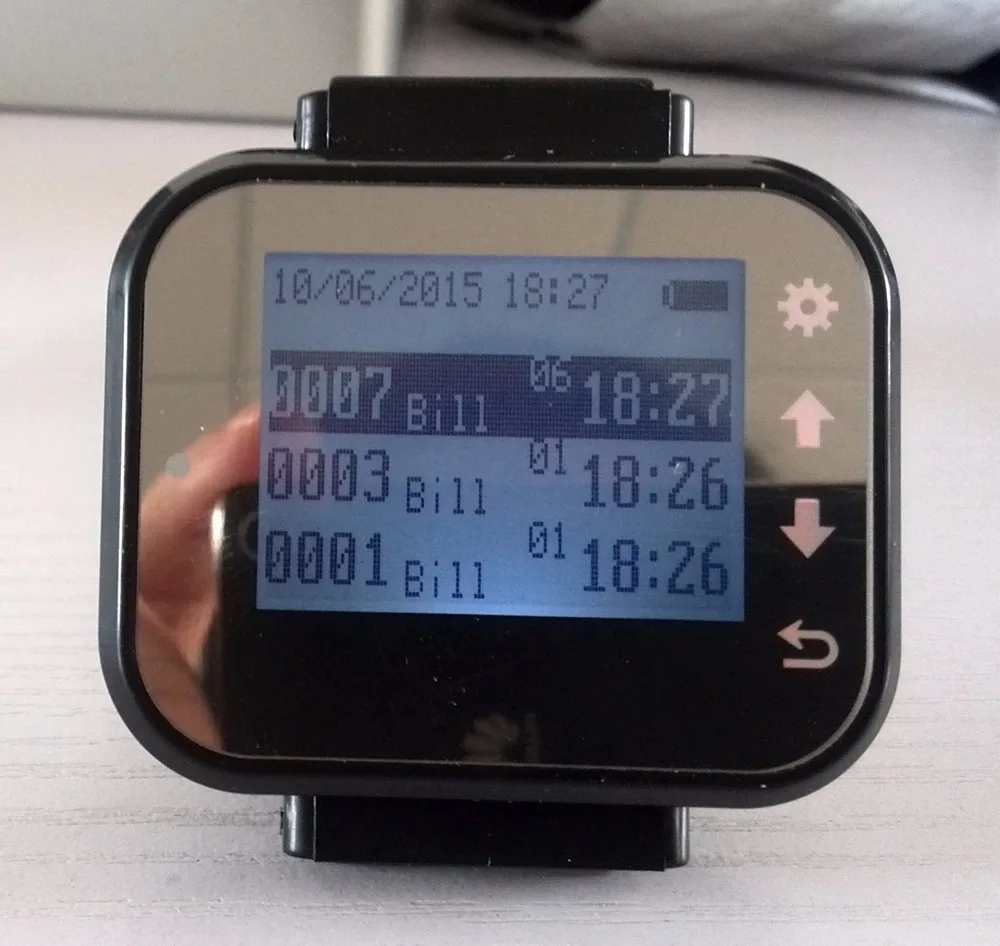

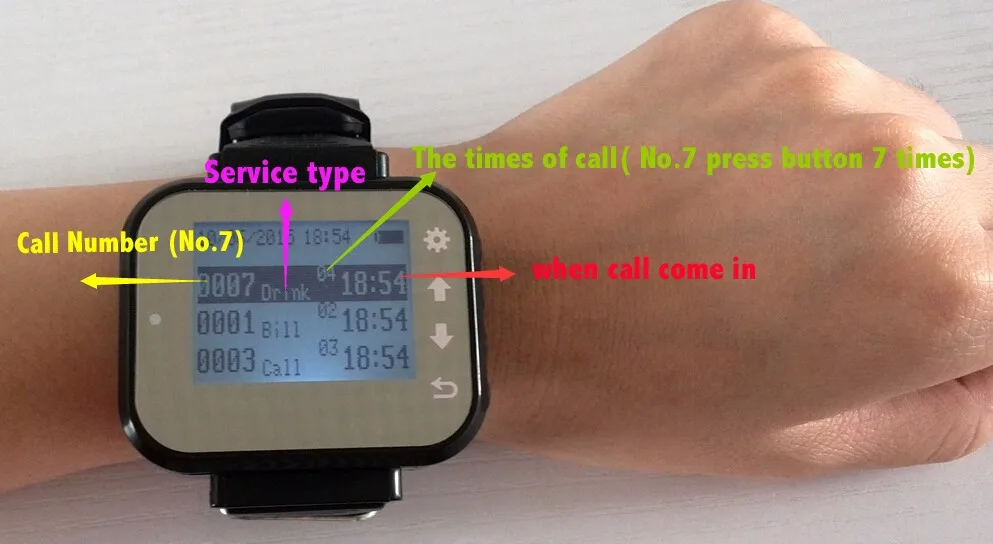

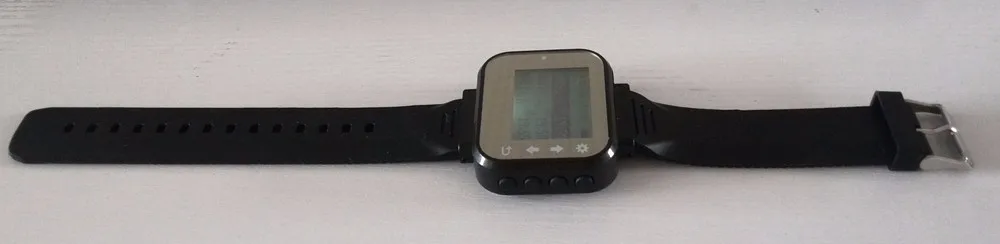

Specification of K-300plus Wrist Watch :

1. Can work with 500pcs 1-key and multi-key transmitter in max
2. Can show 3 group call number in one time
3.Show 4-digit number from 0001-9999 and first letter can be A-Z
4.Can indicate different service type via words or letter.(call;bill;drink; dessert ; help etc and A-Z)
5. Can record when call come in and Can count the call times of each number
6.Can store 50 calls and track the history calls up and down
7.Shows current time when stand-by
8.3 reminder ways:sound promt and vibration or both
9.Battery is rechargeable

10.Dimension:50*41*16mm

11.Color: Black,Green,Red
12.two display mode:live view and queue view
“live view” means, when No.1 No.2 No.3 call in turn, screen is show 0003 0002 0001. Newest call number show on the top of screen.
“queue view” means, when No.1 No.2 No.3 call in turn, screen is show 0001 0002 0003. Oldest call number show on the top of screen.

K-300plus watch for waiter use:

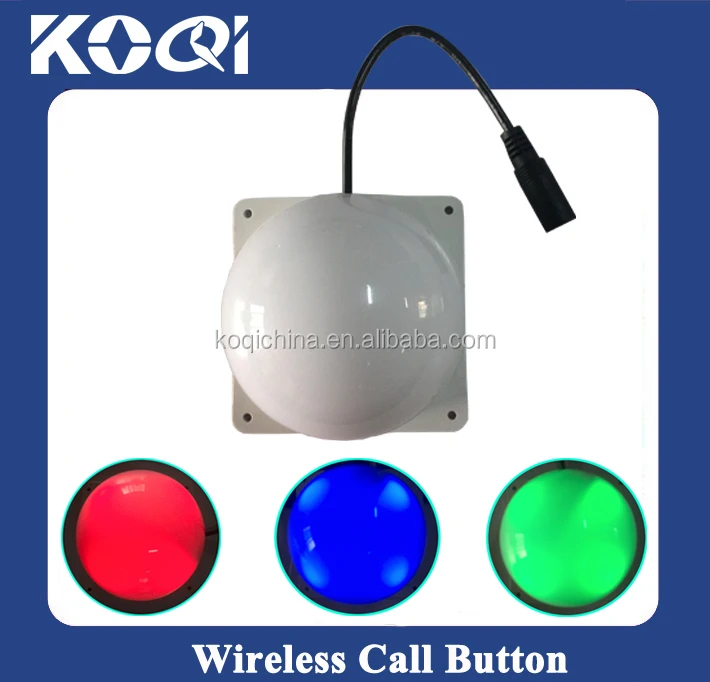

 Room Light K-3L:

1. With 3 color: Red, Blue, Green
2. Different color for different service type or service area.
3. It can work with 30 transmitter at max.
4. With separate output power supply.
Technical parameters:
*Working voltage: DC12V~18V
*Working current: <20mA
*Working Frequency: 433.92mhz
*Dimension: 365*158*40mm

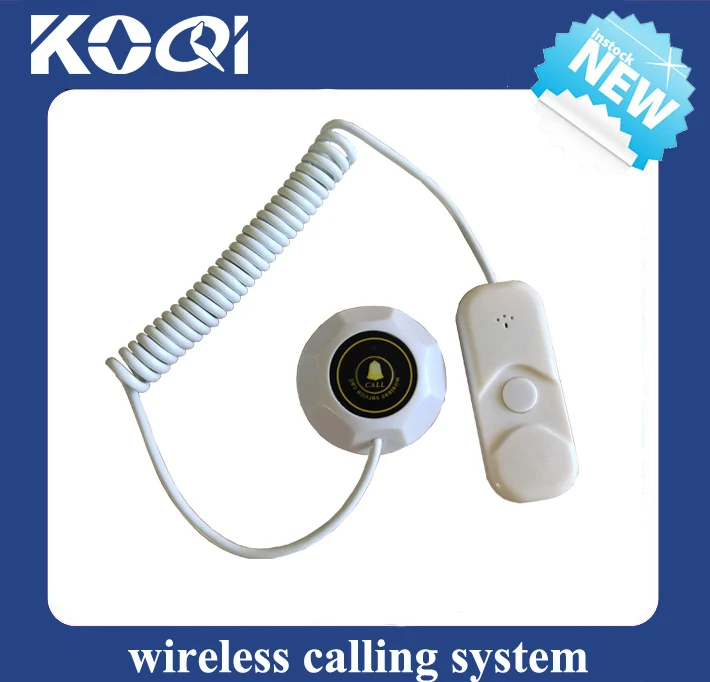

Transmitter Button K-M-H:



1. Water-proof

2. Work with our receiver to combined the wireless calling system

3. Can be installed on each table, when the customer need help only press the button, the calling

no will be shown on the screen, so everyone can easy to know who is calling.

4.Singel-key: Call

5. Material: PC

6. Color:White;Blue;Black;Yellow; Gray;Red.

Technical Parameter:

Working voltage: DC12V

Working current: ≤35mA

Use Frequency:  433.92MHz

Transmitted Power: ≤20mW

Transmitted Distance>300m in open area

Dimension : 60*60*22mm

Any language any LOGO acceptable







Attention on Battery

The transmitter buttons and watch are with battery. And some shipping company for few countries forbid shipping the product with battery. If so, we may have to remove the battery. Please confirm with us about the shipping details before departure.



Install and Maintain

*Wireless device, no wiring involved.

*The Display and Signal Enhancer are operated by 100-240V power supply.

*The button work with 12 23V battery.

*The wrist watch work with rechargeable battery.

*The buttons number can be registered by the Display Setting, the button can fixed or paste on the wall or table. and the button is waterproof.

*Some of buttons any language and logo is acceptable .Welcome your OEM.



Advantage of our system

1) Revolutionary product to increase staff efficiency, lower labor costs.

2) Simple but elegant, value for money.

3) Customer do not need to shout or wave hands to call waiters, improving customer appreciation of service.

4) Provide a comfortable atmosphere.



Illustration of pictures







Packing

1) Receiver: 1 piece of display receiver in a box, box size: 41*21*8cm

2) Watch: 1 piece of watch in a small box, box size: 12*7.5*7cm

3) Transmitter Button: 30pcs or 33pcs of the buttons in a full box, box size: 25.5*18.5*6.5cm

Lead Time

It will take us about 1-3 working days to arrange your order after receive your payment, and the shipping of door to door (Express delivery) will take about 3-7days.

Shipping Way

DHL, EMS, FEDEX, TNT, Hon Kong Post Air Mail, Aramex, Sea Transportation, Air Transportation

Payment:

T/T(30USD service fee), Paypal(4% service fee), Western Union; 100% payment in advance.









      QUANZHOU KOQI LIMITED is specialized in wide range of electronic communication equipments, such as Wireless Hospital Calling System, Nurse Call System, Walkie Talkies, Vehicle Radio, Signal Repeater, PABX, PBX System, IP PBX and wireless network products. Some models are with CE, RoHS & FCC approval. Our main markets are South America, Europe, North America, Asia and the Middle East. Our products have won a good reputation in those markets.  Also we can provide OEM and ODM service if necessary.





1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in professional and fluent English.

3. Customized design is available. OEM is welcomed.

4. Exclusive and unique solution can be provided to our customer by your our well-trained and professional engineers and staffs.

5. Special discount and protection of sales area provided to your distributor.

6. Do the best products and design the personalized items for our customers.







1. What applications do the systems used for?

Wireless Call System can be used in restaurants, hotels, hospitals, tea house, coffee shops, health clubs, beauty salon, spa center, bars, swimming pool, beach, etc.

2. How to personalize the buttons as needed?

We can personalized the buttons as you need: put your own LOGO on the buttons, change the text of CALL, BILL, DRINK, CACEL, or change to be your language. And for the personalized buttons, you need reach the MOQ according to different model. And the leading time will be 2-5 working days longer.

3. How to fix the buttons on the table of the wall?

For the buttons fixed, you can buy the menu holder to stop from being stolen.

You can also buy the double sided tape to stick on the bed

There are holes at the bottom of the button, you can fix the base to the wall by holes.







If you are interested in any of our Wireless Nurse Call System,please feel free to contact me. I will reply to you in 24 hours, thanks.
