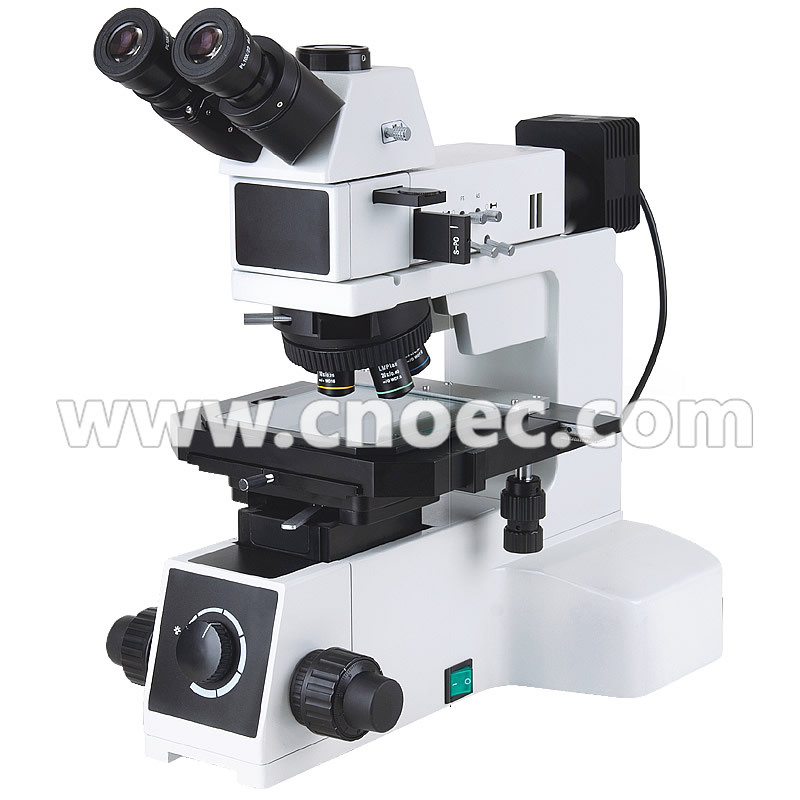

  A13.0900 DIC Metallurgical Microscope, with flexible system, excellent imaging performance and stable system achritecure. It is professional used in industrial testing and metallographic analysis. The operating mechanism according to ergonomic design. That can maximum reduce fatigue during using. Modular component design can freely assemble.

--Intergrated Bright Field/ Oblique Illumination, Polaraizing, DIC Differential Interference
--4" Double Layer Mechanical Stage X/Y Moving Range Achieve 105*105mm
--New Deisgn Long Working Distance Professional Metallurgical Objetives
--High Power Semi-Apochromatic Techanlogy Objective
Variety of Observation Methods To Have Sharp and High Contrast Microscopic Image
--Accessories Complete, Well Equipped, The System Can be Flexibly Combined
--Ergonomic Design, Reliable System Architecture



13.0900 DIC Metallurgical Microscope	A	B
Optical System	Bright Field/Oblique Light, Polarizig, DIC		o
	Bright Field/Oblique Light, Polarizig, DIC , Transmit Light			o

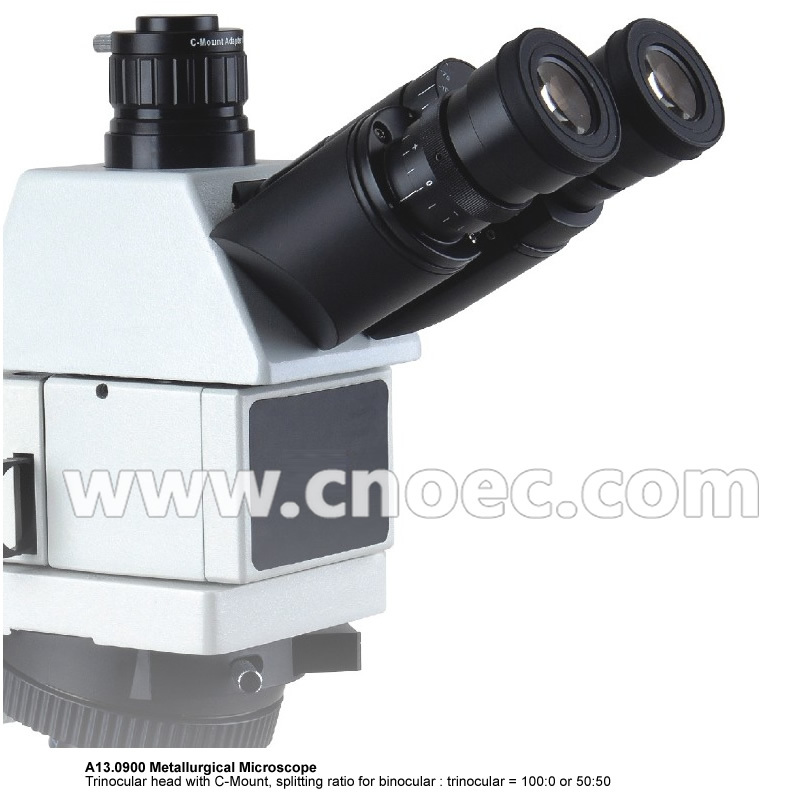

Head	30° Inclinded Trinocular, Spiltting Ratio 100:0 or 50:50
Eyepiece	High Eyepoint Plan PL10x/22mm

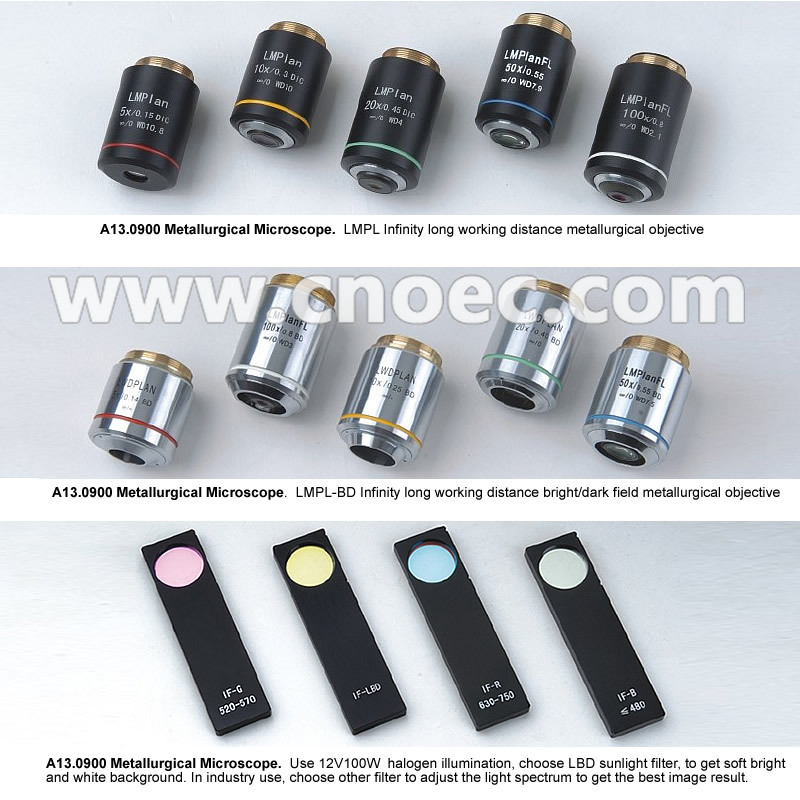

Objective	Long Working Distance Infinity Plan Metallurgical DIC Achromatic		LMPL5X/0.15 WD10.8MM
			LMPL10X/0.3 WD10MM
			LMPL20X/0.45 WD4MM
	Long Working Distance Infinity Plan Metallurgical Semi-APO		LMPL50X/0.55 WD7.8MM
Nosepiece	Intilted, Quintuple, With DIC Slot
Stage	4" Double Layer Mechanical Stage, Moving Range 105*105mm, with Metal Flat Stage, Right Hand Position, XY Moving Hand Wheel, with Stage Adaptor		o
	4" Double Layer Mechanical Stage, Moving Range 105*105mm, with Glass Stage, Right Hand Position, XY Moving Hand Wheel, with Stage Adaptor			o
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focus Range 33mm, Fine Focusing Precision 0.001mm,With Coarse Adjustment Stop and Tightness Adjustment

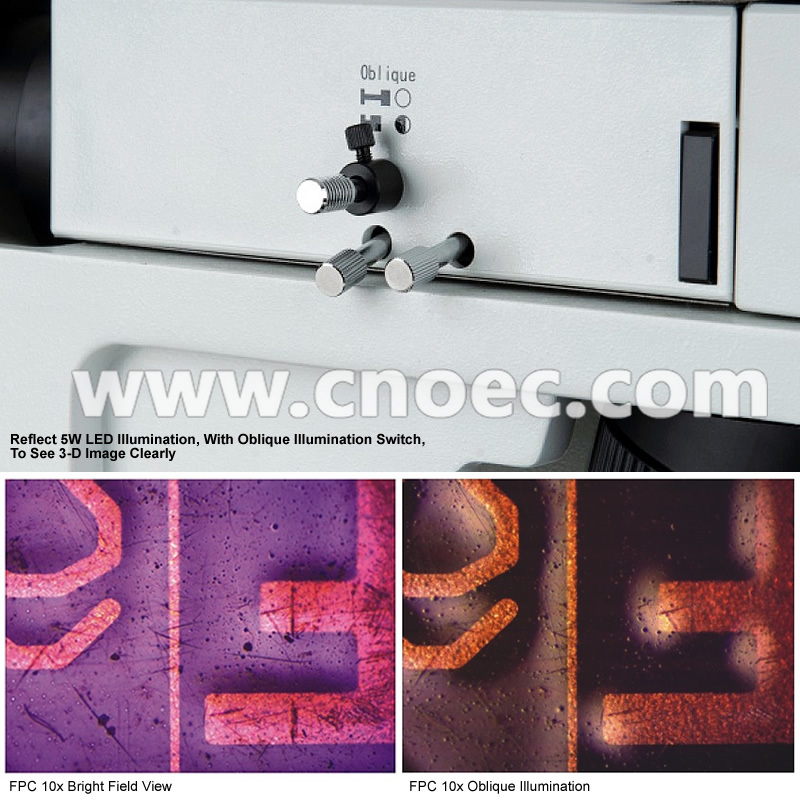

Illumination	Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Central Adjustable, with Filter SLot and Polarizing Slot, With Oblique Illumination Switch. Single High Power 5W LED, White, Brightness Adjustable
	Transmitted Illumination, SIngle High Power 5W LED, White Brightness Adjustable, N.A.0.5 Condenser, with Iris Diaphragm			o
Power	90-240V Wide Voltage, One Way Power Output		o
	90-240V Wide Voltage, Double Way Power Output			o
A13.0900 DIC Metallurgical Microscope Optional Accessories
Eyepiece	High Eyepoint Plan PL15x/16mm PL15x16		A51.0903-1516
	High Eyepoint Plan PL10x/22mm, with Cross PL10x22r,		A51.0905-1022R
	High Eyepoint Plan PL10x/22mm, Diopter Adjustable, PL10x22T		A51.0904-1022T
Objective	Long Working Distance Infinity Plan Metallurgical Semi-APO LMPL100X/0.8 WD2.1MM		A5M.0938-100
DIC	DIC Attachment Set		A5M.0950
Filter	Interface Filter For Reflect illumination	Blue, <480nm	A5M.0951-B
		Green, 520~570nm	A5M.0951-G
		Red, 630~750nm	A5M.0951-R
		Netural, for White Balance	A5M.0951-LBD
Other	Specimen Presser		A5M.0920
Polarizing	Fixed Polarizer Flashboard, Dia.30mm		A5P.0920-RP
	360° Rotatable Analyser Flashboard		A5P.0920-TA
	Fixed Analyser Flashboard,Dia.30mm		A5P.0920-RA
Adapter	0.5x C-Mount, for 1/2" CCD, Focus Adjustable		A55.0928-50
	1.0x C-Mount, Focus Adjustable		A55.0928-10
	Digital Camera Adapter with Photo Eyepiece		A55.0910
